Automatic CNC Single-Side Rotary Welding Head Numerical Control Spot Welding Machine for Battery Pack

ItemNo :
LITH-ZW-D200R
MOQ :
1
Color :
optional
Port :
Xiamen Port
Compliance:
CE
Warranty:
2 years
Delivery Time:
5 days
Email :
Louis@lithmachine.com

Contact Now

Product Details

Automatic CNC Single-Side Rotary Welding Head Numerical Control Spot Welding Machine for Battery Pack

FEATURE

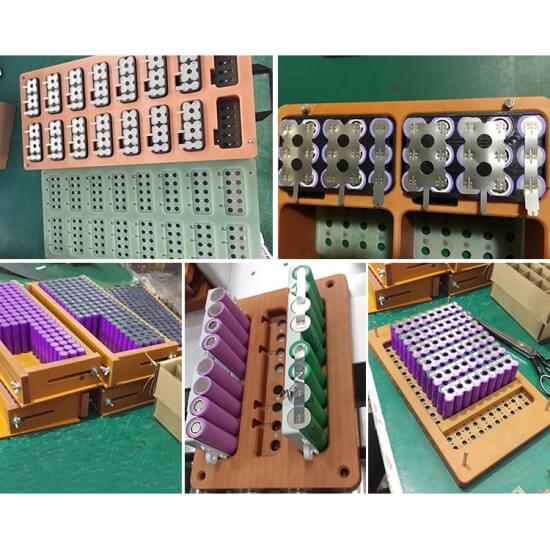

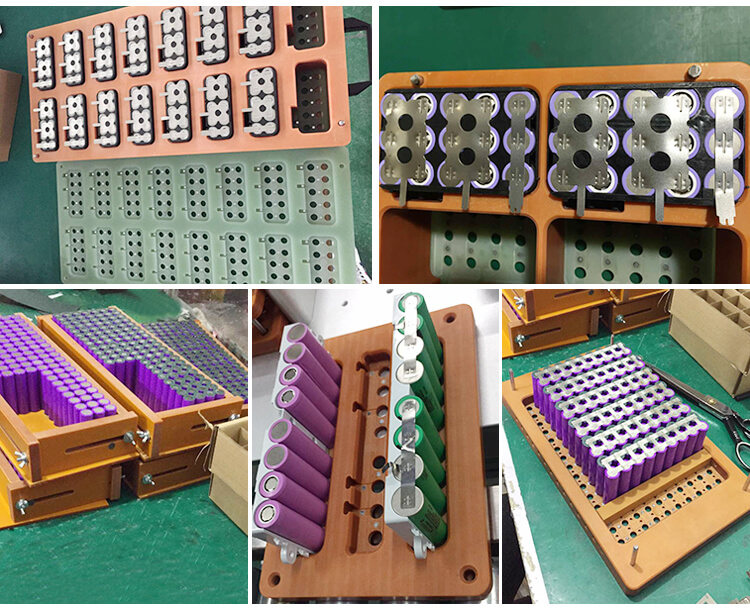

This equipment is mainly used for welding batteries and nickel-plated steel strips or nickel strips in cylindrical/polymer battery assembly, and ensures that the welding tension between batteries and nickel-plated steel strips or nickel strips is greater than 30N. The spot welding range of the equipment can meet the welding requirements of 18650 batteries with 20 series battery packs and less than 20 series battery packs. The number of welding batteries is determined by the stroke, which can be set by man-machine.

Advantages:

1. Support breakpoint start, automatic start and manual start mode conversion.

2. Alarm function of false welding and desoldering.

3. The programming is simple, and supports any point programming and array programming. It can store 99 groups of programming files.

4. Warning of solder pin replacement forecast.

5. With welding current monitoring system, it can monitor welding current in real time

SPECIFICATION

Power Supply and Voltage for Equipment	AC 220±10%，50HZ±2HZ, 500W
Welding Power Supply and Voltage	AC380V±10%，50HZ±2HZ，2000W
Welding Material	Pure nickel sheet: 0.03-0.2mm Nickel-plated steel strip :0.03-0.3mm
Transmission Mode	TBI screw + Taiwan silver precision linear guide
Drying Mode	Stepping servo motor
Rotation Function of Welding Head	The welding head supports positive and negative rotation, and is suitable for spot welding of special-shaped batteries and anti-sticking needle function.
Maximum Spot Welding Speed	0.35S/point；2800pcs/h
Maximum speed of motor transmission	1000mm/S
Maximum No. of Load Cell	X-26; Y-26 (adjustable)
Repeat positioning accuracy	±0.02MM
Number of storable file groups	99
Operating system	Embedded system + man machine interface
Maximum Load-bearing Weight	30KG
Maximum Stroke Size Range	X：500mm，Y：400 mm，Z：35mm，R：180º The distance between tooling platform and welding needle can be adjusted by 300 mm.
Welding Pressure	The pressure of the two welding needles can be adjusted independently. The pressure is stable, reliable and easy to adjust. The welding tension between the battery shell and the connecting piece is ensured to be more than 30N.
Welding Position	Cylindrical and top plane position of battery
Welding Process	Small spark spatter, no burr, no color change, beautiful welding, stable performance, no damage to the battery appearance;
Dimension	900L×900W×1650Hmm
Weight	200Kg
Power Cord	220V 10A
Pneumatic Connected Tube	Diameter 8 mm, easy to plug interface, air pressure 0.4 MPa

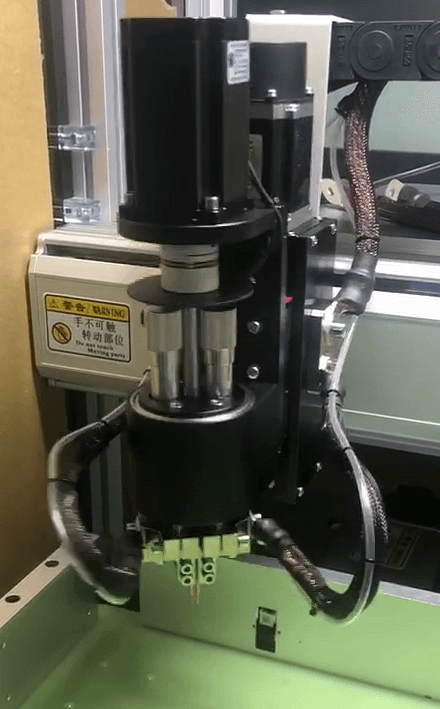

Rotary Welding Head

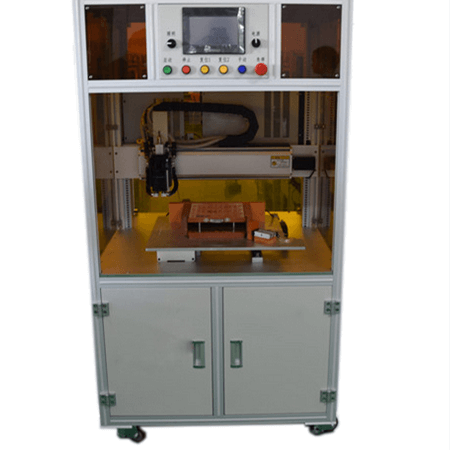

Automatic CNC Spot Welder

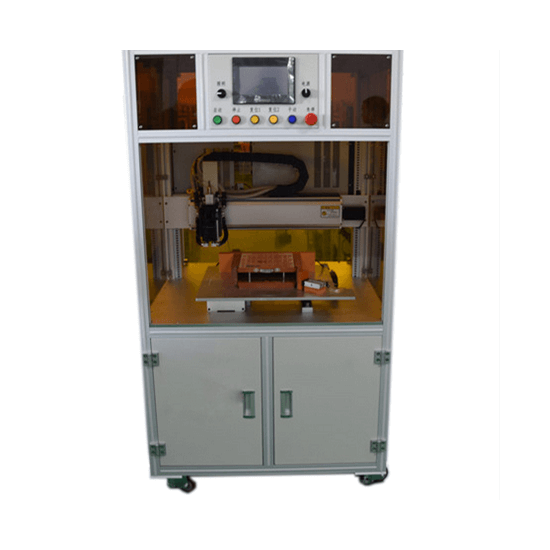

Spot Welder

PACKAGE:

1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.

DELIVERY TIME:15-20 days after confirming order,detail delivery date should be decided according to production season and order quantity
