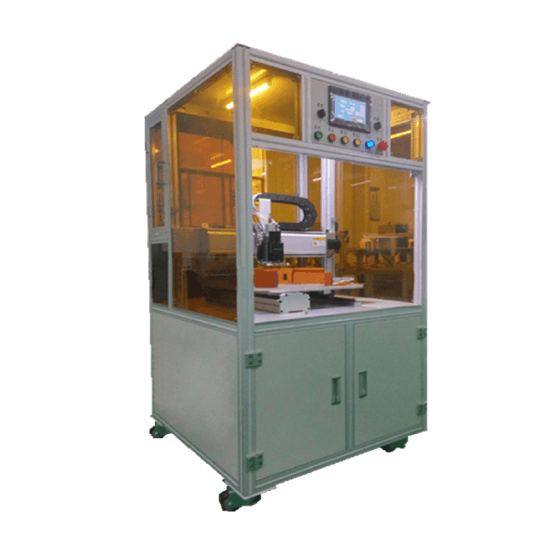

Louis@lithmachine.comAutomatic Single-Side Rotary Head Numerical Control Spot Welding Machine Welder For 18650/21700 Battery Pack Assembly
Feature:
This equipment is mainly used for single-side and double-spot welding of batteries and nickel-plated steel strips or nickel strips in cylindrical/polymer battery assembly, and ensures that the welding tension between batteries and nickel-plated steel strips or nickel strips is greater than 30N. The spot welding range of the equipment can meet the welding requirements of 18650 batteries with 20 series battery packs and less than 20 series battery packs. The number of welding batteries is determined by the stroke, which can be set by man-machine.
Specification:
|
Power Supply and Voltage for Equipment |
AC 220±10%，50HZ±2HZ, 500W |
|
Welding Power Supply and Voltage |
AC380V±10%，50HZ±2HZ，2000W |
|
Welding Material |
Pure nickel sheet: 0.03-0.2mm Nickel-plated steel strip :0.03-0.3mm (bump welding can weld 0.6mm) |
|
Driving mode |
TBI screw + Taiwan silver precision linear guide |
|
Rotation Function of Welding Head |
The welding head supports positive and negative rotation, and is suitable for spot welding of special-shaped batteries and anti-sticking needle function. |
|
Maximum Spot Welding Speed |
0.5S/point；1800pcs/h
|
|
Maximum Load-bearing Weight |
30KG
|
|
Maximum Stroke Size Range |
X：500mm，Y：400 mm，Z：35mm，R：180º The distance between tooling platform and welding needle can be adjusted by 300 mm. |
|
Welding Pressure |
The pressure of the two welding needles can be adjusted independently. The pressure is stable, reliable and easy to adjust. The welding tension between the battery shell and the connecting piece is ensured to be more than 30N. |
|
Welding Position |
Cylindrical and top plane position of battery |
|
Welding Process |
Small spark spatter, no burr, no color change, beautiful welding, stable performance, no damage to the battery appearance; |
|
Dimension |
900L×900W×1600Hmm |
|
Weight |
250Kg
|
|
Power Cord |
220V 10A
|
|
Pneumatic Connected Tube |
Diameter 8 mm, easy to plug interface, air pressure 0.4 MPa |
Related Machine
PACKAGE:
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
DELIVERY TIME:15-20 days after confirming order,detail delivery date should be decided according to production season and order quantity
