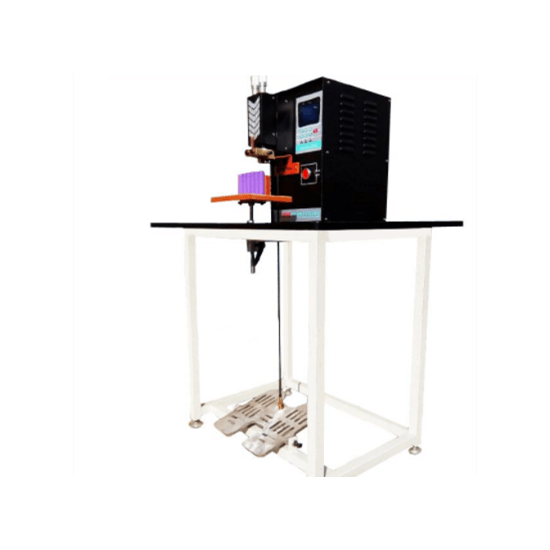

Precise Pneumatic Single Point 18650 Battery Spot Welding Machine with Foot Pedal for Li-on Battery Research

Precise Pneumatic Single Point 18650 Battery Spot Welding Machine with Foot Pedal for Li-on Battery Research

  • ItemNo :

    LITH-XTB-2118
  • MOQ :

    1
  • Color :

    optional
  • Port :

    Xiamen Port
  • Compliance:

    CE
  • Warranty:

    2 years
  • Delivery Time:

    5 days
  • Email :

    Louis@lithmachine.com
  • Product Details


Precise Pneumatic Single Point 18650 Battery Spot Welding Machine with Foot Pedal for Li-on Battery Research


INTRODUCTION:

Precise Pneumatic Single Point Welding Machine is specifically designed for professional Li-on Battery Research. It is mainly used for welding the cylinder core's negative terminal (tab) to the bottom of the cylinder case. A Diameter 2mm x 180mm length welding needle is easily inserted into the cylinder case to weld at the bottom. This machine is controlled by the microcontroller,  which is very easy to operate and can provide stable performance.


SPECIFICATION:

Power Supply

220-240V, Single Phase 50/60Hz

Max. Power

10KW

Air Pressure Range

0.1 - 0.7 Mpa ( air compressor is required)

Welding Current

0-99A

Welding Thickness

0 - 0.18mm

Operation Temperature

-20 - 40

Controller

Controlled by microcontroller,achieve monopulse, dipulse, multiple-pulse welding

Pressure

The pressure applied on the welding needle can be adjusted independently and easy to operate

Design

1.       Unique Photoelectric switch design

2.       Good appearance, small size and light weight

3.       Welding spot looks beautiful,free spark, stable welding current

Product Dimensions

L400×W560×H400mm

Net Weight

45kg

Compliance

CE Certificate

Warranty

One Year limited warranty with lifetime support


Spot Welding Machinie

Type

Product Name

Features


Link

Manual

Pneumatic Spot WeldinMachine

Welding Thickness:0.03 -0.25mm

Air Pressure Range:0.1 - 0.7 Mpa





https://www.lithmachine.com/desk-top-capacitive-discharge-spot-welder-for-battery-tab-and-cylindrical-battery-welding_p366.html

AC Plus Pneumatic Spot Welding Machine

Welding Thickness:0.03~0.2mm



https://www.lithmachine.com/ac-plus-pneumatic-spot-welding-machine-welder-for-cylindrical-battery-welding_p362.html

5000A/8000A Pneumatic Inverter DC Spot Welding Machine

Maximum thickness of parallel welding:0.03mm~0.5mm

Maximum Output Short Circuit Current:5000A  or 8000A



 https://www.lithmachine.com/inverter-resistance-welder-18650-power-battery-spot-welder-battery-spot-welding-machine_p442.html

DC Output Spot Welding Machine

Maximum thickness of parallel

welding:0.03mm~0.5mm



https://www.lithmachine.com/High-Precision-DC-Output-Spot-Welding-Machine-Tab-Welder_p364.html

Automatic

Automatc Single Side Spot WeldingMachine(Pneumatic/Electric)

Welding travel:400x500mm

Welding Speed:0.35s/point; 2800pcs / hour



https://www.lithmachine.com/automatic-single-side-battery-spot-welding-machine-welder-for-18650-cylindrical-battery-pack_p363.html

Automatic Single Side Rotary Welding Head Spot Welding Machine(Pneumatic/Electric)

The rotatable welding head can prevent the sticking of the needle. In addition, if it is a nickel strip with different fork directions, the rotating welding head is needed. Welding travel:400x500mm Welding Speed:0.35s/point; 2800pcs / hour



https://www.lithmachine.com/inverter-dc-single-side-automatic-spot-welding-machine-for-cylindrical-battery-pack-assembly_p402.html

Automatic Double Sides Spot Welding Machine (Pneumatic/Electric)

Welding travel:400x500mm Spot welding speed: 0.3s/point; 5000pcs/h



https://www.lithmachine.com/Automatic-18650-26650-32650-Cylindrical-Battery-Pack-Double-Sides-Spot-Welding-Machine-for-Battery-Assembly_p369.html





               Pneumatic 18650 Battery Spot Welder



Related Machine






PACKAGE:

     1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

     2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

     3 Responsible for the damage during the shipping process, will change the damage part for you for free.



DELIVERY TIME:15-20 days after confirming order,detail delivery date should be decided according to production season and order quantity
