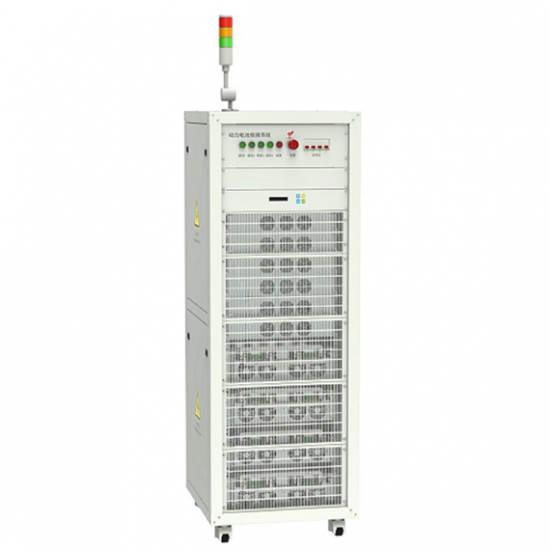

20V30A 4 Channel Lithium Battery Charge and Discharge Testing Machine Battery Capacity Tester

20V30A 4 Channel Lithium Battery Charge and Discharge Testing Machine Battery Capacity Tester

  • ItemNo :

    LITH-BTS-20V30A
  • MOQ :

    1
  • Place of Origin:

    China
  • Color :

    optional
  • Port :

    Xiamen Port
  • Compliance:

    CE
  • Warranty:

    2 years
  • Delivery Time:

    5 days
  • Email :

    Louis@lithmachine.com
  • Product Details
20V30A 4 Channel Lithium Battery Testing Equipment Battery Capacity Tester

INTRODUCTION:

Battery tester is mainly used to detect current, voltage, capacity, internal resistance, temperature, battery cycle life, and gives the graph. Battery tester has many channels to choose from. It can start at a single point, control at a single point, and measure different types of batteries (nickel-hydrogen, nickel-cadmium, lithium-ion, etc.).



Specific test functions include: battery voltage, load voltage (voltage difference), internal resistance, short-circuit protection time, short-circuit protection recovery function, over-discharge current, charging function, identification resistance (R1, R2), code reading, capacity test (including charge and discharge test).


SPECIFICATION:

Channel Basic Parameters
Max. Voltage 20V
Max. Current 30A
Main Channel Number 4
ADC Bits 24 Bit
Control Mode The CC mode and CV mode are double closed loop structure,
each channel is independently controlled
Energy Feedback Full power energy feedback, the feedback energy is given priority
to the local load, and the excess energy is feedback to the grid
Grid Side Parameters
Voltage Range 230Vac/277Vac ±10%
Frequency Range 50Hz/60Hz ±5Hz
Max. Power 3kW
Power Factor >0.99
THDi <5%
Wiring L+N+PE
Isolation Type High Frequency Isolation
Channel Voltage Parameters
Charge Voltage Range 020V
Discharge Voltage Range 1V20V (Add accessories to discharge to 0V )
Voltage Scales(Optional) 2 Scales (20V, 10V)
Voltage Accuracy ±0.05% F.S
Voltage Resolution 1mV
Voltage Ripple ±0.5% F.S
Channel Current Parameters
Single CH Current Range -30A30A
Parallel CH Current
Range(Optional)
2CH: -60A60A, 3CH: -90A90A, 4CH: -120A120A
Current Scales(Optional) 4 Scales (30A, 15A, 9A, 4.5A)
Current Accuracy ±0.05% F.S
Current Resolution 1mA
Min. Cut-off Current ±0.2% F.S (Can be adjusted down according to demand)
Channel Power Parameters
Single CH Max. Power 0.6kW
Parallel CH Max. Power 2.4kW
Power Accuracy ±0.1% F.S
Power Resolution 1W
Charge and Discharge Parameters & Functions
Current Response Time ≤10ms(10%90%)
Charge and Discharge Switching
Time
≤20ms(-90%+90%)
Min. Pulse Width 100ms
Charge Mode CC, CV, CC-CV, CP, Current Ramp, Pulse, etc.
Discharge Mode CC, CC-CV, CP, CR, Current Ramp, Pulse, DCIR, etc.
Cut-off/Jump Condition Voltage, Current, Time, Temperature, Capacity, Energy, -ΔV,
Expression Function, etc.
Loop Test Range 165535 Times
Editable number of steps 254 Steps
Loop Nesting Support 3 Layers
Programming Features There are multiple exits for each step, with "goto" function, which
can jump arbitrarily
Simulation File Can import the working condition file (DBC format), edit the
working condition file according to the communication protocol
Simulation lines limit 1 Million Rows
Simulation Switching time 100ms
Grid Side Protection Overvoltage Protection, Overcurrent Protection, Phase Loss Protection, Overheat Protection, Overload Protection, Short Circuit Protection, Communication Interruption Protection,
Emergency Stop Protection, etc.
Battery Side Protection Overvoltage Protection, Overcurrent Protection, Power Failure Protection, Reverse Connection Protection, Communication Heartbeat Protection, Overcapacity Protection, Sampling Line
Drop Protection, etc.
Efficiency (Full Load) >80%
PC Software Parameters & Functions
Communication Type TCP/IP Protocol
Functional Test Items Operating Condition Simulation, Capacity, Internal Resistance, Cycle Life, Charge/Discharge Characteristics, Pulse
Charge-Discharge Characteristics, Charge Retention Capability, Charge-Discharge Efficiency, Overcharge/Overdischarge Tolerance, Cell Temperature /Voltage Characteristics,
Consistency Assessment , etc.
Software Step Operation Cut/Paste Step, Forced Step Jump, Condition Jump, Loop Test,
etc.
Min. Time Interval 10ms
Min. Voltage Interval 0.1mV
Min. Current Interval 0.1mA
Data protection Power-Down Data Protection
Offline Test
Safety protection conditions can be set, setting parameters include: Voltage Upper Limit, Voltage Lower Limit, Current Upper Limit,
Current Lower Limit, Delay Time, etc.
Software/System Interface Database, MES System, LIMS System, etc.
Peripheral Communication RS485, RS232, CAN2.0A, CAN2.0B, CANFD, Ethernet, etc.
Ports
Devices BMS, Auxiliary Voltage, Auxiliary Temperature, Environmental Test Box, Water Cooler, Insulation Monitoring, Adjustable Power
Supply, Equalization Equipment, etc.
Basic Parameters
Size W*D*H: 630*680*1280(mm)
Weight ≈ 200kg
Protection Level IP20
Cooling Type Air-Cooled
Noise <75dB
Storage Temperature -30~70
Operating Temperature -10~45
Humidity <85% (No Condensation)
Altitude ≤2000m
Optional Accessories
Computer i5, 8G, 1T, Integrated Graphics, 21-inch, Windows10 Chinese
Operating System, Mouse (Customizable)
DC Cable Room temperature RV, Silicone Cord, etc. (Customizable)
Fixture Polymer Clamps, Alligator Clips, OT Terminals, Toggle Clamps,
etc.
Battery Rack Designed according to the battery size and the number of channels, the laminate is insulated, and the bottom is equipped
with casters (Customizable)
Auxiliary Channel Designed according to the maximum voltage, temperature range,
thermocouple type, and number of channels
Discharge to 0V Module Designed according to the number of channels
Charge and Discharge Different
Port Module
Designed according to the maximum voltage, maximum Current,
and the number of channels
Negative Voltage Discharge
Module
Designed according to the maximum voltage, maximum current ,
and the number of channels
Power Distribution Box (DC,
AC)
Designed according to the maximum voltage, maximum current,
and the number of channels
Power Transformer Designed according to the maximum voltage    and the maximum
power
Reference Picture

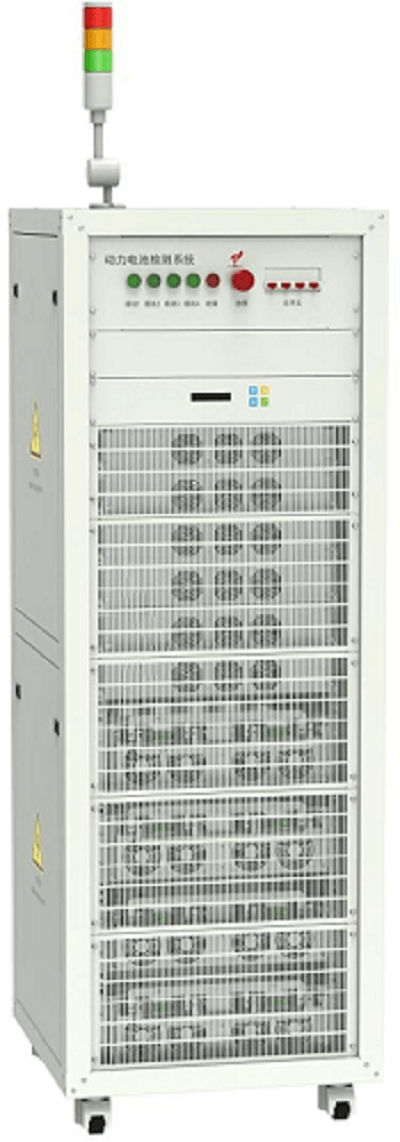

Equipment Picture
The picture is for reference only
