100V50A 2/4/8 Channel Lithium Battery Charge and Discharge Testing Machine Battery Capacity Tester

100V50A 2/4/8 Channel Lithium Battery Charge and Discharge Testing Machine Battery Capacity Tester

  • ItemNo :

    LITH-BTS-100V50A
  • MOQ :

    1
  • Place of Origin:

    China
  • Color :

    optional
  • Port :

    Xiamen Port
  • Compliance:

    CE
  • Warranty:

    2 years
  • Delivery Time:

    5 days
  • Email :

    Louis@lithmachine.com
  • Product Details
100V50A 2/4/8 Channel Lithium Battery Charge and Discharge Testing Machine Battery Capacity Tester

INTRODUCTION:

Battery tester is mainly used to detect current, voltage, capacity, internal resistance, temperature, battery cycle life, and gives the graph. Battery tester has many channels to choose from. It can start at a single point, control at a single point, and measure different types of batteries (nickel-hydrogen, nickel-cadmium, lithium-ion, etc.).



Specific test functions include: battery voltage, load voltage (voltage difference), internal resistance, short-circuit protection time, short-circuit protection recovery function, over-discharge current, charging function, identification resistance (R1, R2), code reading, capacity test (including charge and discharge test).


SPECIFICATION:

1、Model
1. Model Number LITH-BTS-100V50A
2、Channels information
1.  Channels quantity Channels quantity in one unit 2
2.  Main channel Channel feature Constant current source and constant voltage source dual closed loop control
Channel control
mode
Independent control
Channel parallel connection Support max 4 channels parallel mode. Pulse and SIM tests will be disabled in channels parallel mode.
3、Power grid side parameters
1.Input power AC380V±15%   50/60±5Hz
2.Power factor ≥99%(Full load)
3.THDi ≤5%(Full load)
4.Input resistance ≥1MΩ
5.Input power 11.8KW
6.Input current 17.9A/single
7.Overall system
efficiency(Max)
90%
8.Noise 65dB
9.Voltage and current sampling Four-wire connection(same port for charging and discharging)
10.Power control module
type
MOSFET
11.Input power wiring method Three-phase-five wire system
12.Power input protection Anti-surge, anti-silos, anti over or under frequency, anti over or under voltage, anti phase absence, etc.
4、Functions and performances
1.  Voltage Output range Charge:0V100V
Discharge:3V100V
Min discharge voltage 3V
Accuracy ±0.02% of FS
Resolution 24bit
2.  Current Output range 0.25A50A
Accuracy(independe
nt range)
±0.05% of FS
CV cut-off current 50mA
Resolution 24bit
3.  Power Single channel
output power
5KW
Whole machine
output power
10KW
4.  Time Current response time 3ms
Current conversion
time
6ms
Min. step time 0.1s
5.  Charge/Discharge modes Charge/Discharge modes CCC, CVC, CC-CVC, CPC
CCD, CVD, CPD, CRD
Cut-off condition Voltage, Current, ΔTime, Capacity, -ΔV
6.  Simulation Charge Current, Power
Discharge Current, Power
Switch Support continuous switching between charge and discharge
Cut-off condition Time, step line
Steps file lines 1,000,000
7.  Pulse Mode Charge Current ,power
Discharge Current, Power
Min pulse 100ms
Pulse counts Up to 32
Charge and
discharge switch
supported
Cut-off condition Voltage, ΔTime
8.  DCIR DCIR by calculation
9.  Safely protection Software protection Power off data protection
Offline mode function
Safety protection conditions can be set, including:voltage lower limit ,voltage upper
limit ,current lower limit ,current upper limit ,delay time, etc.
Hardware protection Anti-reverse connection, over-voltage, over-current,
over-temperature, etc.
5、Data management and analysis
1.  Step setting method Form editing
2.  Data report Recording conditions Minimum  time  interval:  10ms(connected  with  AUX
channel:100ms
Minimum voltage interval: 0.2V
Minimum current interval: 0.1A
Recording frequency 100Hz(connected with AUX channel:10Hz)
3.  Database MySQL database
4.  Data output Excel, Txt
5.  Curve type Templates available, customization supported
6.  Bar code scanning Support bar-code scanning function
Management and traceability of historical data
6、Communication
1.  Host computer communication TCP/IP protocol
2.  Communication port Ethernet
3.  Communication baud rate of the testers 1M
4.  Host computer
communication baud rate
10M~100M adaptive
5.  Communication setup Set up a LAN(local area network) through switches and routers
6.  Communication expansion(optional) Support CAN, RS485 communication and BMS communication, with DBC configuration function
7、Environmental requirements, dimension and weight
1.  Operation environment temperature -10~40(When the temperature is 25±10, the
accuracy error caused by temperature change is less than 0.005% of FS per degree)
2.  Storage environment
temperature
-20~50
3.  Operation environment
humidity
≤70% RH(no moisture condensation)
4.  Storage environment humidity ≤80% RH(no moisture condensation)
5.  Dimension W*D*H 600*800*900(mm)
6.  Weight about 111.1KG

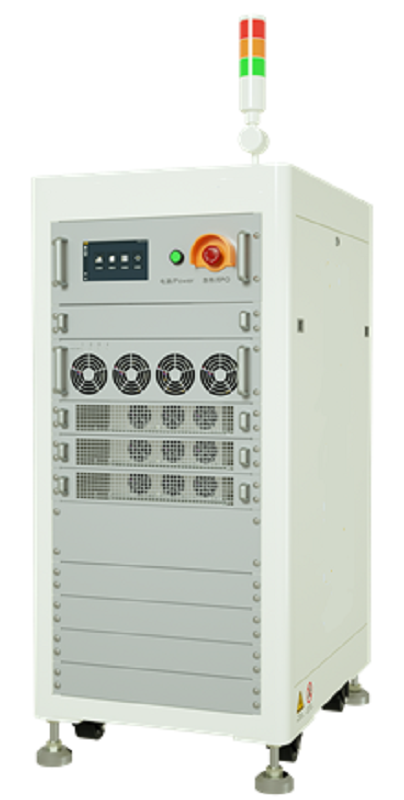

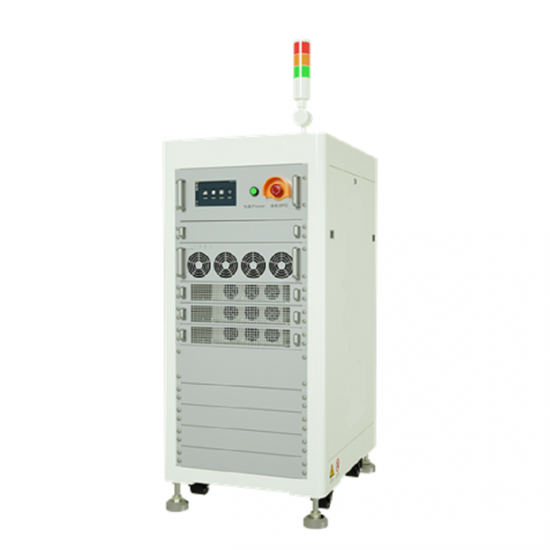

7.  Tester Picture(Pictures just for reference)
8、Auxiliary test system(optional)
1.  Temperature aux channels Temperature range Thermistor-30~120
Thermocouple-200~260
Temperature accuracy ±1℃(Length within 2m
Temperature
resolution
0.1
2.  Voltage aux channels Voltage range 0V~5V
Voltage accuracy ±0.1% of FS
Voltage resolution 0.1mV
3.  Aux Introduction It is used to monitor the temperature of the battery surface or the tabs during the test. The aux test data can be bound with the main voltage and current data. At the same time, the measured temperature can be used as the control
condition and protection condition of the test profiles.


















PACKAGE:

  1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

  2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

  3 Responsible for the damage during the shipping process, will change the damaged part for you for free.



DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to

production season and order quantity.
