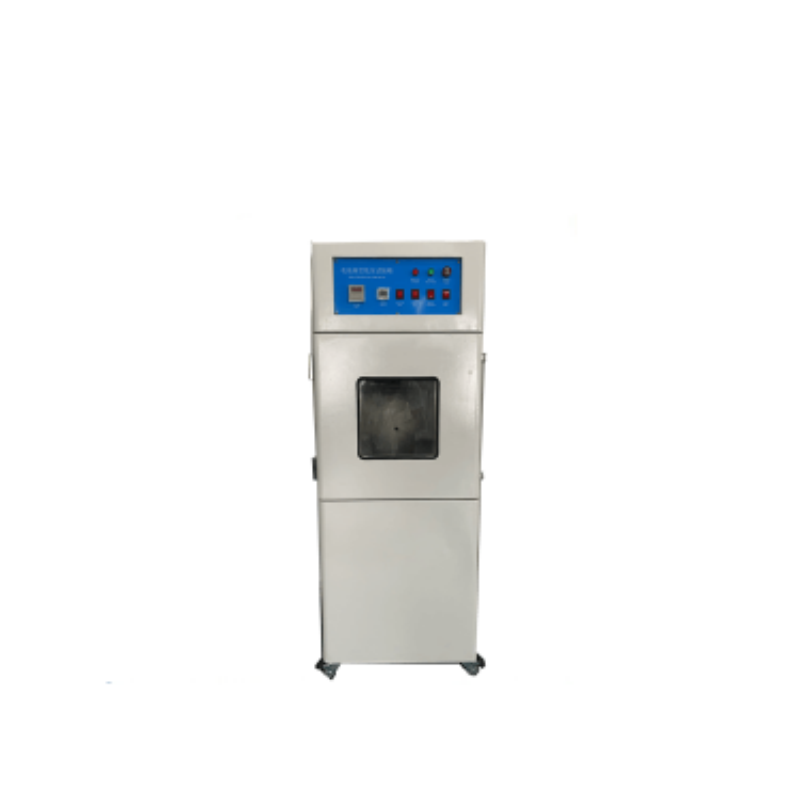

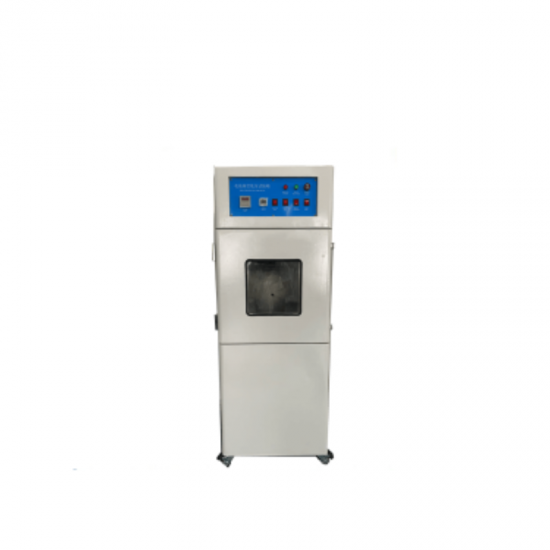

Louis@lithmachine.comLaboratory Battery Simulation Low Voltage High Altitude Tester Chamber Machine
Introduction
Battery low voltage (high altitude) simulation test, all tested samples are tested under negative pressure of 11.6kPa (1.68psi). The final result of the test requires that the battery cannot explode or catch fire.
Features
The box inside the box is made of high-quality SUS201# stainless steel plate material,
The front door of the test box adopts a strengthened design. The left side of the door is equipped with an exposed hinge, and the right side is equipped with a strong door lock, which effectively blocks the door. The hinge and lock use strengthened equipment special standard parts.
The bottom is equipped with 4 casters, which is convenient to move and fix.
This machine adopts PID control system, which is convenient and intuitive, and can easily control each input test parameter.
Explosion-proof glass window with explosion-proof film, double protection;
A rubber sealing ring is installed between the working room and the glass door to ensure a high degree of vacuum in the box;
The vacuum value can be automatically set, and the vacuum can be automatically supplemented.
Technical parameter
|
Product name |
Low pressure |
|
Model number |
LITH-GKDYSY |
|
Temperature range |
Normal temperature (The requirements must be met by controlling the internal temperature of the laboratory, that is, the temperature of the laboratory must reach this range (20℃+5℃) to ensure that the temperature in the low-temperature box is within this range) |
|
Display method |
PID display |
|
Vacuum degree |
133Pa |
|
Accuracy |
0.1KPa |
|
Adjustment range |
-5 ~ -100Kpa (negative pressure gauge) |
|
Unit |
KPa |
|
Time range |
99H59M59S (can be set) |
|
Inner box size |
W400*D400*H400 mm |
|
Inner box material |
High-quality SUS201# stainless steel plate material, thickness 3MM |
|
Outer dimension |
W650*D550*H1300 mm |
|
Outer material |
SECC steel plate, fine powder baking varnish treatment, thickness of 1.5mm |
|
Box door |
Single door, open observation window, cold handle door lock |
|
Accessibility |
Safe explosion-proof: The door is equipped with 10mm thick tempered explosion-proof glass; Reinforced ribs are welded inside the door to make the door stronger and increase its strength The external link hinge door lock adopts high-strength standard accessories. It is safe and easy to install and replace |
|
Window size |
300*300 mm(10mm thick tempered explosion-proof glass) |
|
Power supply |
AC 220V ± 10%, 50Hz |
|
Power |
1KW |
|
Weight |
About 200kg |
If you customize more than six machines, you can integrate the machines into a comprehensive console
PACKAGE:
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damaged part for you for free.
DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to
production season and order quantity.
