Email:Louis@lithmachine.com
ItemNo :
LITH-PS-250MOQ :
1Color :
optionalPort :
Xiamen PortCompliance:
CEWarranty:
2 yearsDelivery Time:
5 daysEmail :
Louis@lithmachine.com
INTRODUCTION:

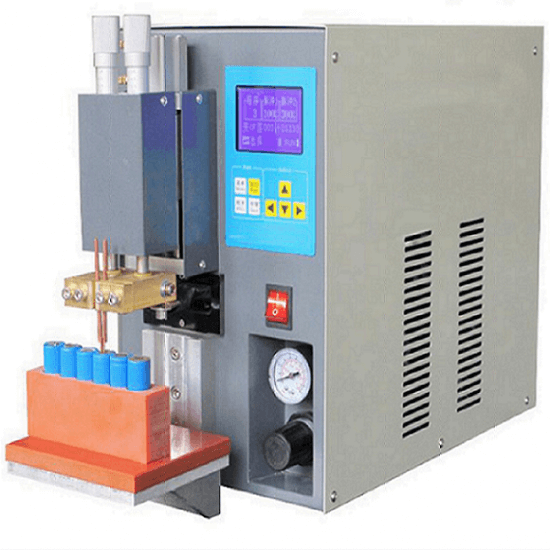

LITH-PS250 is the most popular capacitive discharge spot welder driven by compressed air. It is designed for the production of the world’s high-class battery manufacturer (NiMH. NiCd, Li-Ion/LiMnNi. LifePO4) with more reliable and consistent welding than AC pulse.
SPECIFICATION:
Working Voltage
110V or 240V AC, 50/60Hz
Output Power
10KW
Input Air Pressure
0.1 - 0.8 MPa (Air Compressor is not included. Please click here to order)
Welding Current
0-99% Adjustable
Welding probes
· Allow independent adjustment for pressure
· Ensure consistent welding pressure
· Fully eliminates the phenomenon of low voltage or condensation occurred to lithium batteries after welding
· Homogeneous welding spot, small spark, and no black spots
Welding Switch
Built in optoelectronic welding switch, which can eliminate the need of changing switches for similar welding machines
Controller
· Single chip control
· Digital LCD control panel for setting all parameters
Tab Thickness Applicable
0.03 - 0.5mm tab (10 pcs 0.2mm Tab will be provided in the package for customer's practice)
Warranty
· One year limited warranty with lifetime support
· Rusting and damage due to improper storage condition or maintenance is not covered by warranty
Product Dimensions
750(L)*650(W)*550(H)mm
Application Notes
· Avoid touching weld spots immediately after the weld has been performed as they will be hot
· Always wear safety glasses when working with spot welders and weld heads
· Be careful not to pinch fingers in moving weld head parts or between welding electrodes
· Remove hand jewelries before welding
Net Weight
50 kg (110 lbs)
Related Machine
PACKAGE:
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
DELIVERY TIME:15-20 days after confirming order,detail delivery date should be decided according to production season and order quantity
