PVC PP Film Heat Tunnel Shrink Packaging Packing Wrapping Machine for Battery Pack

ItemNo :
LITH-CWT-BS-4020
MOQ :
1
Place of Origin:
China
Color :
optional
Port :
Xiamen Port
Compliance:
CE
Warranty:
2 years
Delivery Time:
5 days
Email :
Louis@lithmachine.com

Contact Now

Product Details

PVC PP Film Heat Tunnel Shrink Packaging Packing Wrapping Machine for Battery Pack

Introduction:

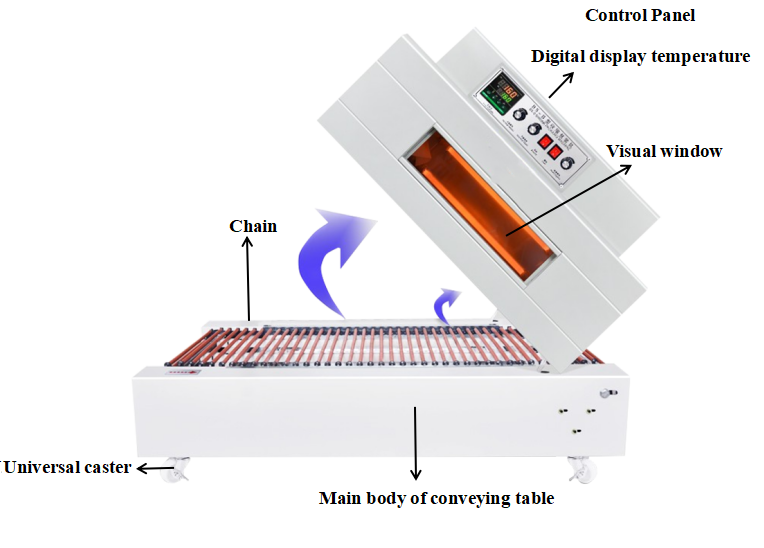

The far-infrared shrink packaging machine is the latest automatic continuous shrink packaging equipment in the market.The shrink temperature and motor drive speed are stable and controllable, the adjustment range is wide, and there are instrument displays. The original roller auto-transmission device can work continuously.

Features:

1.Using far-infrared tube for heating, saving more than 15%

2.Advanced design, stable and reliable performance, efficient power saving, good shrinkage effect, novel and beautiful structure,convenient operation and maintenance, etc.

Specification:

Voltage	220V 50Hz
Power	5.5KW
Speed	0-10m/min
Furnace channel size	800400200mm （customizable)
Machine size	1100600670mm
Max. loading weight	15kg
Application material	PVC POF PP
Maximum scope of application	Unlimited length Width 37cm Height 17cm

Shrink Film Temperature / Time Comparison Table
Film	PVC	PP	POF
Thickness	0.02-0.06mm	0.02-0.04mm	0.03-1.1mm
Heating time	5-10S	6-12S	8-16S
Shrinking temperature	110-130C	130-170C	130-170C

PACKAGE:

1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.

DELIVERY TIME:15-20 days after confirming order,detail delivery date should be decided according to production season and order quantity

HotTags : PVC Packaging Machine Heat Packaging Machine Heat Wrapping Machine
