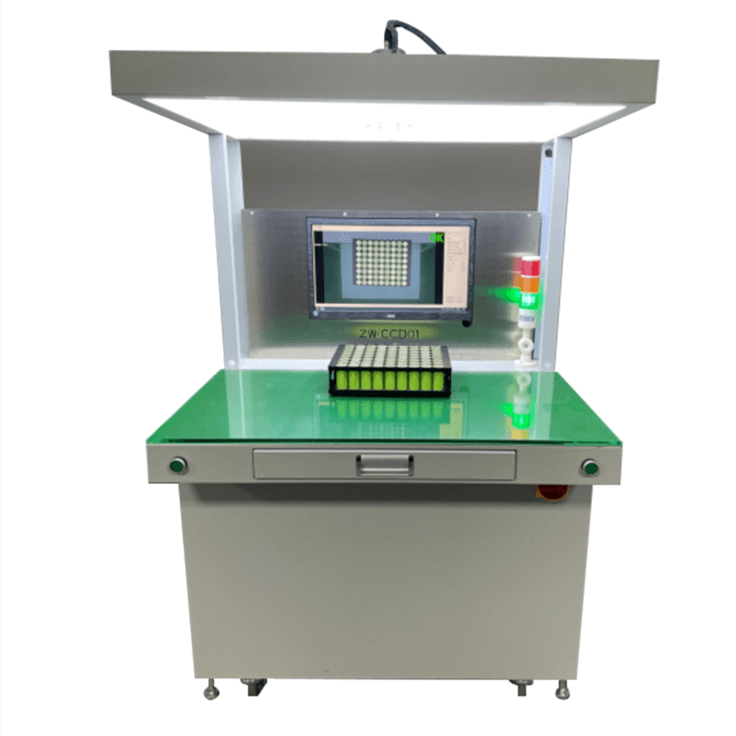

CCD Visual Inspection Equipment Positive And Negative Electrode Battery Pack Testing Machine for Cylindrical Battery Production Line

CCD Visual Inspection Equipment Positive And Negative Electrode Battery Pack Testing Machine for Cylindrical Battery Production Line

  • ItemNo :

    LITH-CCD
  • MOQ :

    1
  • Place of Origin:

    China
  • Color :

    optional
  • Port :

    Xiamen Port
  • Compliance:

    CE
  • Warranty:

    2 years
  • Delivery Time:

    5 days
  • Email :

    Louis@lithmachine.com
  • Product Details

     CCD Visual Inspection Equipment Positive And Negative Electrode Battery Pack Testing Machine for Cylindrical Battery Production Line




1. Function Description

CCD vision detection equipment, in fact, means that through the machine vision product CCD image sensor will be taken into an image signal, transmitted to a dedicated image processing system, according to the distribution of pixels and brightness, color, and other information, a detection device that Converts Signals Into Digital Signals; an image system performs various operations on these signals to extract the characteristics of the target and then control the action of equipment in the field according to the results of discrimination. CCD vision detection equipment can replace the human eye to do measurement and judgment, is used in production, assembly or packaging of valuable equipment. It has higher efficiency and accuracy in detecting whether the batteries are correctly placed in series-parallel positive and negative electrodes and in detecting products with defects in spot welding.



2. Process Flow

Feeding and positioning of electric core → positive and negative pole detection → positive and negative solder joint detection (CCD) → NG automatic sorting → OK automatic discharging



3. Mechanical Structure

1) Feed positioning of battery core

2) Polar ear leveling

3) CCD solder joint detector has high resolution image acquisition, artificial intelligence image processing and recognition technology to improve defect recognition rate

4) CCD welding detector has the advantages of fast recognition speed and high accuracy. It can select anti-static belt without damaging the battery

5) Humanized programming, easy to learn and understand.



4. Specifications

XY axis stroke

500mm*400mm (customizable)

Repeated positioning accuracy

± 0.1mm

Operating system

industrial computer + intelligent camera

Transmission mode

Assembly line

Driving mode

Stepping motor

DC power supply

24V

Detection efficiency

1s / pcs

Display Pixels

1000W

Total weight

150kg

Maximum bearing weight

30kg

Input power

Single phase AC 220V / 50Hz

Air source

0.5-0.6mpa

Size

960 * 950 * 1800mm

Screen

21.5-inch Philips display




5.  Equipment Configuration List

● Touch screen:21.5-inch Philips display

● PLC: motion controller

● Step motor: Bifu

● Servo motor: Mitsubishi & Lechuang

 Sensors: Panasonic and OMRON

● Bearing: Japan NSK

● Cylinder: Adec

● Switching power supply: Mingwei, Taiwan



6. Operating Environment

1) Indoor temperature: - 30 ℃ ~ 50 ℃.

2) Indoor humidity: below 55%.

3) Factory site: no pollution and strong electromagnetic interference.





















PACKAGE:

  1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

  2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

  3 Responsible for the damage during the shipping process, will change the damaged part for you for free.



DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to

production season and order quantity.
