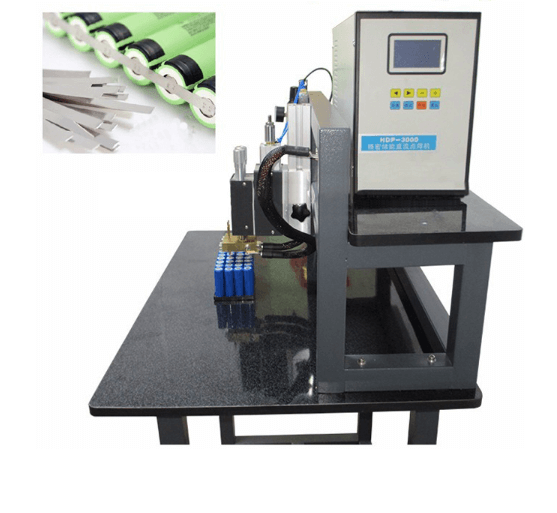

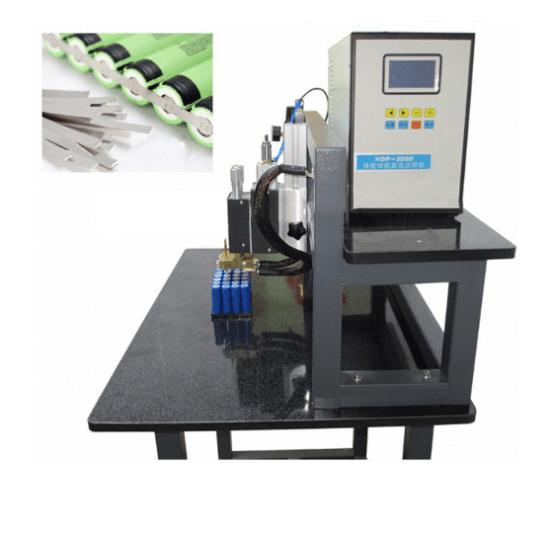

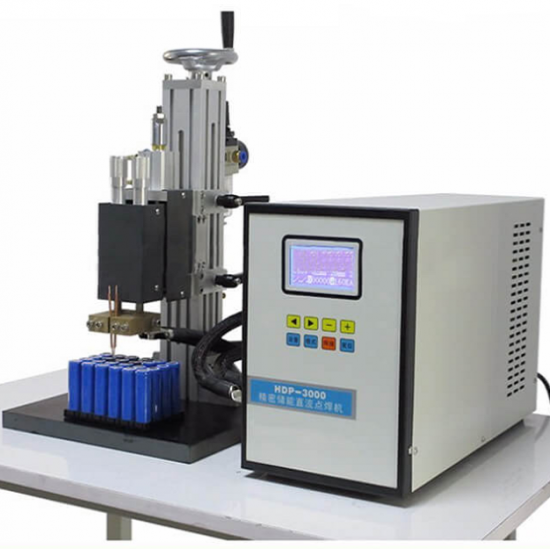

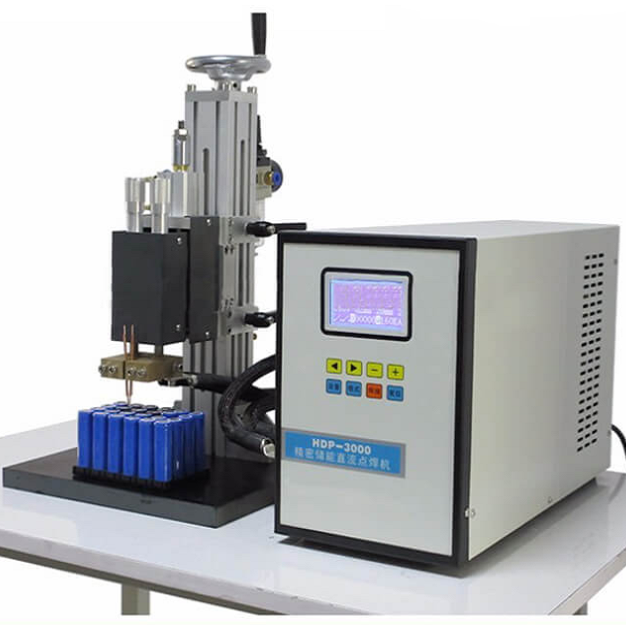

High Precision Manual DC Output Spot Welding Machine for Solar Light Battery

High Precision Manual DC Output Spot Welding Machine for Solar Light Battery

ItemNo :
LITH-HDP-3000
MOQ :
1
Color :
optional
Port :
Xiamen Port
Compliance:
CE
Warranty:
2 years
Delivery Time:
5 days
Email :
Louis@lithmachine.com

Contact Now

Product Details

High Precision Manual DC Output Spot Welding Machine for Solar Light Battery

INTRODUCTION:

1. RT series precision resistance welding power source is to use Japan IGBT inverter technology, microcomputer control technology and modern power electronic technology development of a new type of power supply.

2. Weld spatter is small, stable performance.

3. DC output significantly improve welding technology;

4. Advanced technology and equipment has advantages of small, energy efficient and a series of;

5. Microcontroller (MCU) and the using of electronic technology makes the equipment with outstanding features of modern equipment, including digital control, monitoring, fault diagnosis and protection, data transmission, etc., equipment is fully functional, flexible, convenient, adaptation of wide.

6. This kind of special equipment suitable for spot welding of copper, aluminum and other non-ferrous metalmaterials, alloy spot welding materials, precision parts of spot welding and spot welding of high quality products.

ADVANTAGE:

1. DC output. Heat concentration,the heat efficiency is increased, the welding process is stable, the welding quality is improved, and the electrode life is prolonged .

2. High speed and high precision microprocessor (MCU) control, to provide highly stable repetitive welding, with current monitoring function.

3. LCD display.

4. High speed welding: a quick start and high polarity switching reduced the temperature effect so that make the welding surface clean and beautiful.

5. Polarity switching: suppression of asymmetrical result makes the two points welding strength uniform and extends the service life of the electrode.

6. The imported IBGT module full control the discharge,welding quality and welding speed , non ordinary welding machine can compared with it.

7. Double pulse can reduce welding spatter, effectively improve the quality of welding.

8. Data storage using EEPROM, no battery life issues, always returned to the previous use of welding procedures when you starting up.

9. Welding voltage locking technology to prevent net voltage fluctuations to affect the welding current.

SPECIFICATION:

Model	LITH-HDP-3000
Transformer maximum output power	25KVA
Secondary side maximum welding current	6000A
DC energy storage capacity	6600uF
Welding pulse number	9 sets of pulses
Welding voltage	5v-330v adjustable, precision 0.5V
Welding time	0.1ms-5.0ms adjustable, precision 0.1ms
Welding mode	Normal / continuous
Input frequency	AC 220V±10% 50Hz±2Hz
Maximum working pressure	6KG
Weight	65KG
Weld thickness	Maximum thickness of parallel welding:0.03mm~0.3mm ,Multiple welding sheet

18650 Cell Spot Welder

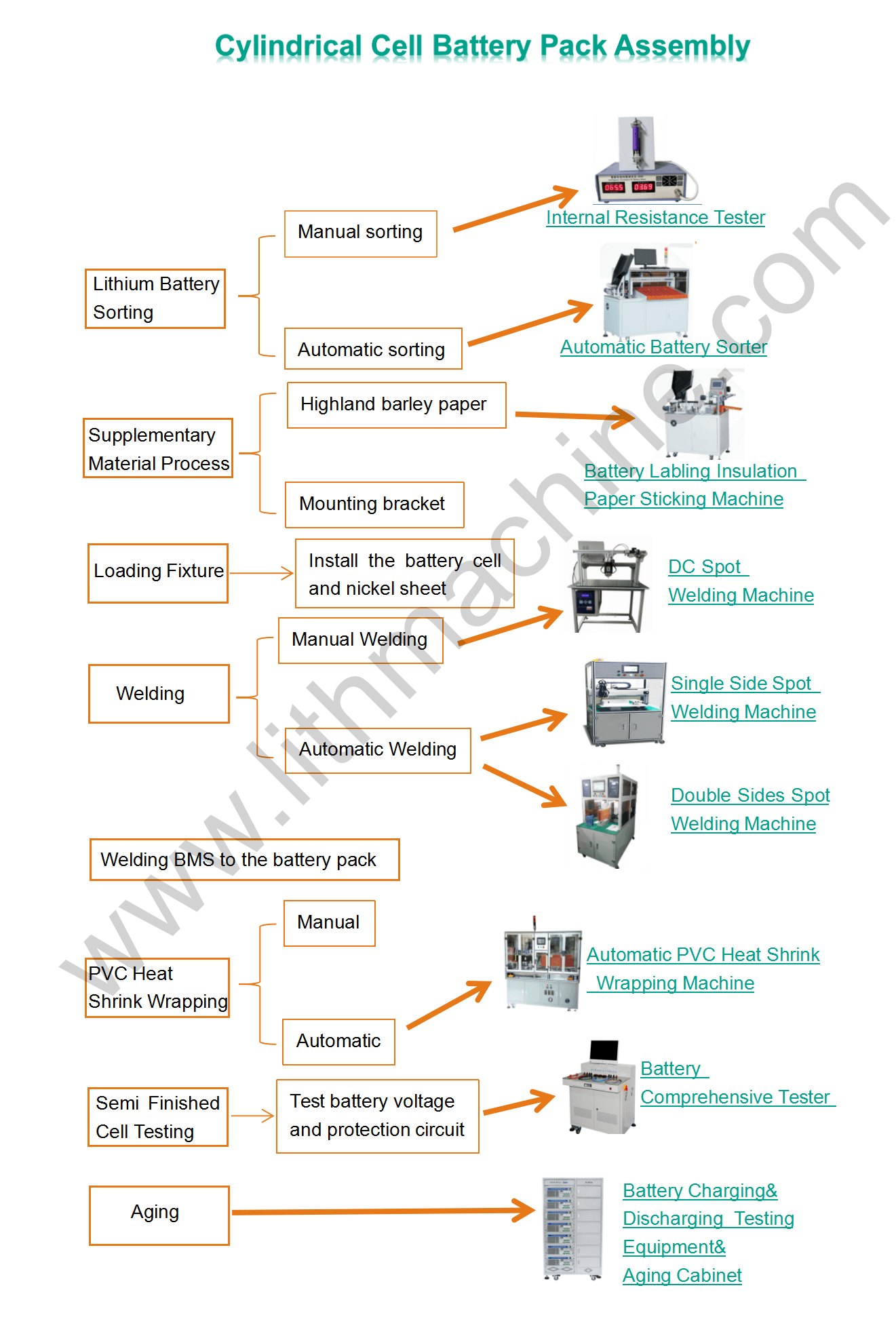

Related Machine

Lithium Battery Sorting

Sticking Barley Paper

Spot Welding

PVC Heat Shrink Wrapping

Semi-finished Cell Testing

PACKAGE:

1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.

DELIVERY TIME:15-20 days after confirming order,detail delivery date should be decided according to production season and order quantity
