Louis@lithmachine.com18650 32650 26650 21700 Cylindrical Cell 5 Channels Cylindrical Battery Sorter Sorting Machine
Introduction:
Battery sorting machine is for batteries testing before battery pack assembling.
Can test battery voltage and internal resistance, and sorting cells to different bracket with different voltage and internal resistance.
Advantage:
1. Stable control system
2. High configuration regulator
3. High Precision Work Procedure
4. High cost performance ratio of products
Technological Process:
The battery resistance and voltage are set by the battery testing software of the upper computer, and the following functions are automatically completed by PLC:
Manual filling of batteries→wave wheel rotating feeding→belt carrying batteries→ejector cylinder jacking batteries→ test cylinder closure (test instrument uploading data, software sorting)→mechanical gripper sorting batteries.
The equipment is equipped with acoustooptic alarm, which can be sorted to complete automatic shutdown. Full material alarm, fault alarm, etc. Operating parameters can be set according to the actual requirements of customers.
Structure of Sorter:
1) The equipment has compact and reasonable structure, beautiful appearance and small space occupation.
2) The equipment is simple to operate, and no professional training is required. The workers can easily master it.
3) The equipment is made of high-quality thick cold-rolled sheet metal and aluminium profile frame.
4) The equipment is equipped with universal movable casters, which can move easily when shifting.
Specification:
|
Model |
LITH-FN-5 |
|
Power supply |
AC220V ± 10% 50Hz |
|
Voltage |
800W |
|
Sorting parameters |
Open Circuit Voltage and AC Internal Resistance |
|
Compressed Air Pressure |
0.5 ~ 1.0Mpa |
|
Sorting Speed |
≥80PPM |
|
Productivity |
5000pcs/h |
|
Dimension |
850*580*1350mm |
|
Adaptation Battery |
Cylindrical Battery (18650,32650,18500,26650,14500,21700 etc.) |
|
Receiving Channel |
5 channels |
|
Internal Resistance Tester
|
HIOKI3561 or HK3561 |
|
HIOKI3561: Open circuit voltage accuracy:± 0.01% rdg; Display Resolution: 0.1 millivolt; Internal impedance accuracy:± 0.1% rdg; Display Resolution: 0.01 mΩ
HK3561: Open circuit voltage accuracy: ± 0.05% rdg; Display Resolution: 0.1 millivolt; Internal impedance accuracy:± 0.5% rdg; Display Resolution: 0.01 mΩ |
|
|
Total weight |
195kg |
|
Control component |
7.5 inches Large size LCD screen/Touch screen |
|
Feeding |
Using hopper feeding mode, 500 PCS can be put in one time. |
|
Data storage |
Test data can be stored on a U disk |
Application:
Battery sorting machine is for batteries testing before battery pack assembling.
Can test battery voltage and internal resistance, and sorting cells to different bracket with different voltage and internal resistance.
Detail Show:

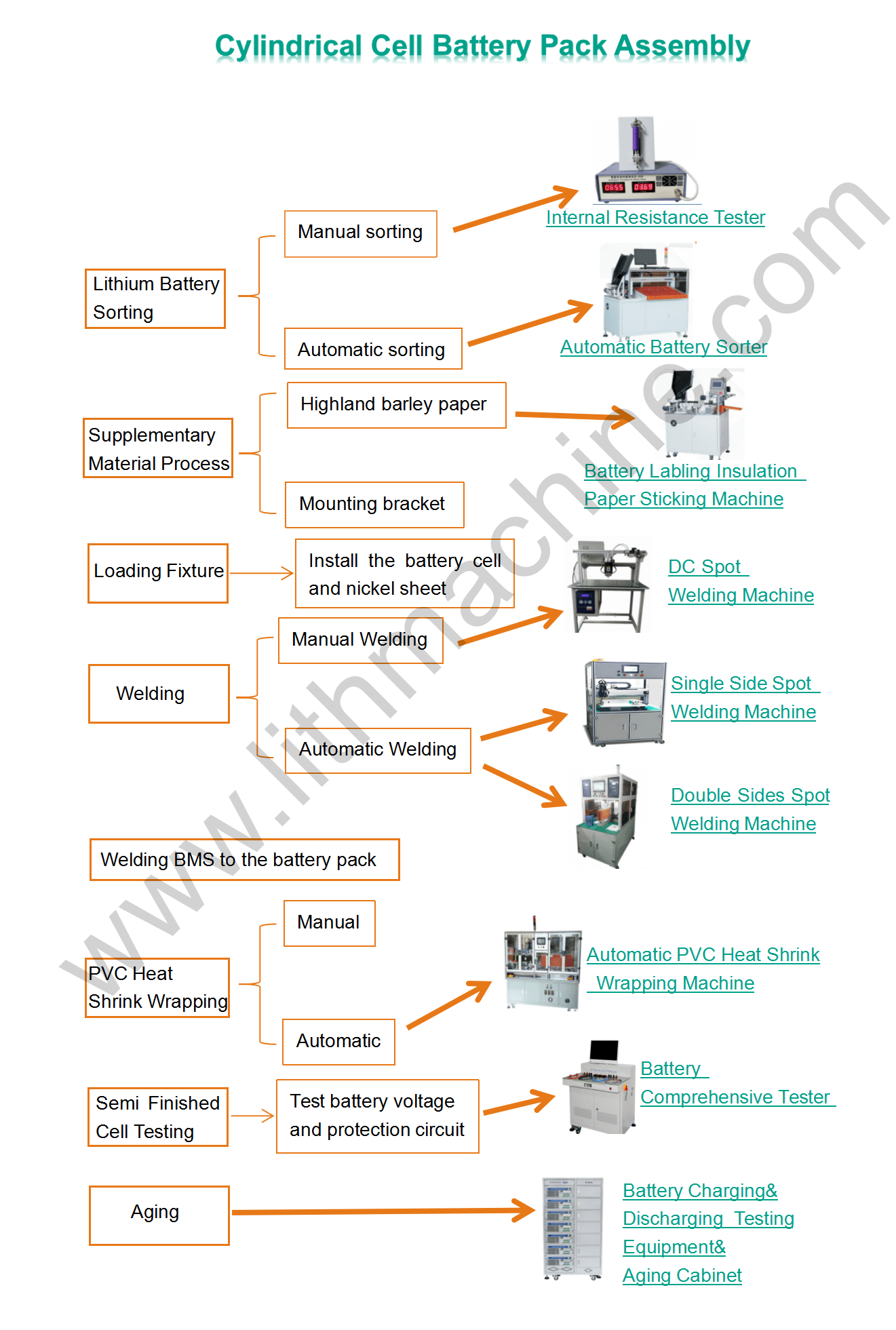

Related Machine
PACKAGE:
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
DELIVERY TIME:15-20 days after confirming order,detail delivery date should be decided according to production season and order quantity
