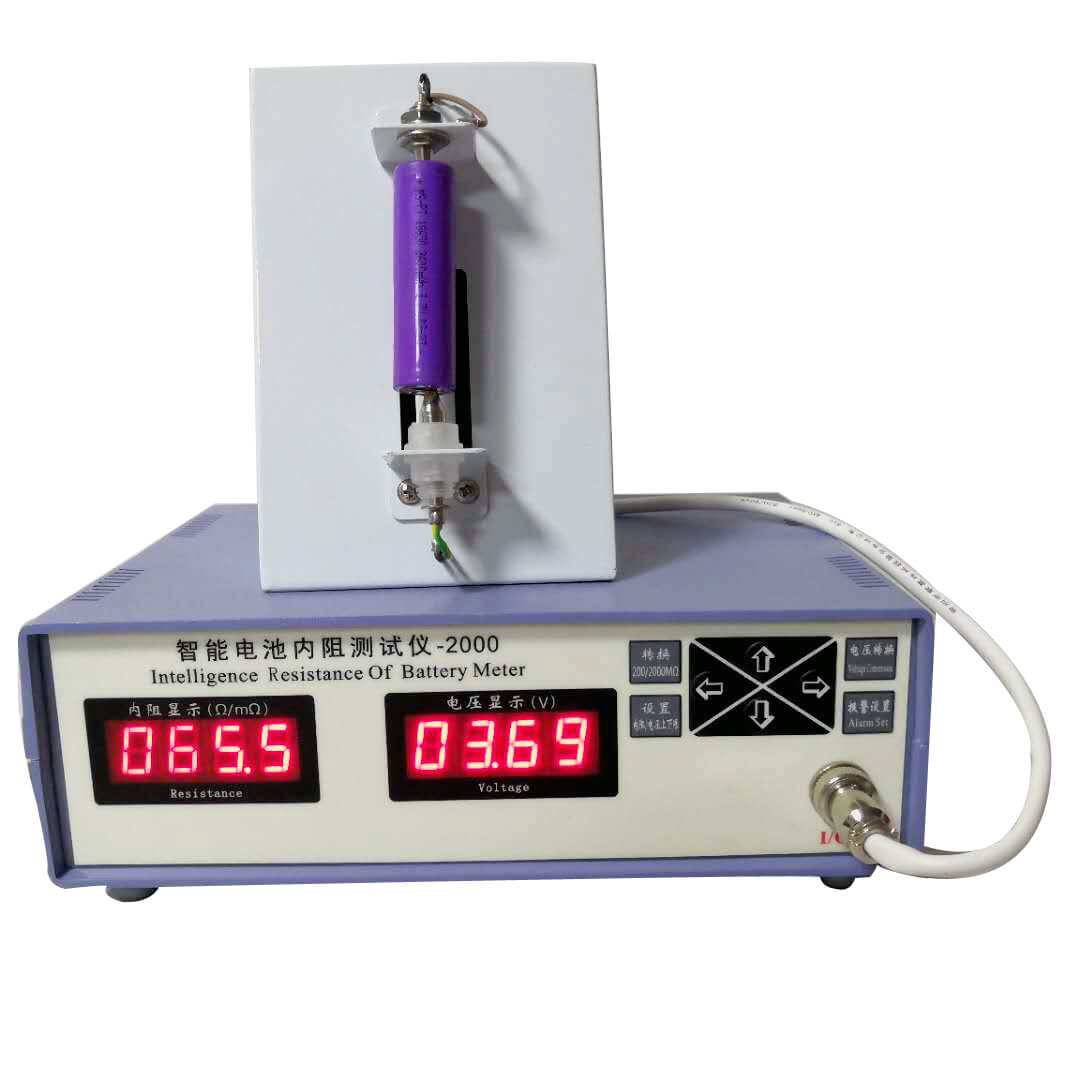

Louis@lithmachine.comLithium Battery Impedance Tester Internal Resistance Tester Analyzer
FEATURE:
1. Usually the smaller resistance for the battery or battery core, the higher quality for the battery.
So testing battery resistance is a rapid and accurate method to check battery performance.
2. LITH-R203 Battery internal resistance tester adopts four line acquisition method, can test the resistance orimpedance with or without power supply.
3. This battery internal resistance tester is widely used for battery manufacture and battery sellers to check the battery performance.
SPECIFICATION:
|
Machine model |
Battery internal resistance tester |
|
Source voltage |
AC110V-240V, 50/60HZ |
|
Power |
10-30W |
|
Testing speed |
100ms |
|
Advantages |
Can connect with computer Suitable varies kinds battery and battery core Buzzer alarm |
|
Voltage test V1 |
Voltage range : 0-4.999V |
|
Minimum resolution : 0.001V |
|
|
Accuracy : ±0.002V |
|
|
Voltage test V2 |
Voltage range : 0-29.99V |
|
Minimum resolution : 0.01V |
|
|
Accuracy : ±0.01V |
|
|
Resistance test R1 |
Resistance range : 0.1—200 mΩ |
|
Minimum resolution : 0.1mΩ |
|
|
Accuracy : ±0.5 mΩ |
|
|
Resistance test R2 |
Resistance range :1—2000 mΩ |
|
Minimum resolution : 1mΩ |
|
|
Accuracy : ±2 mΩ |
|
|
Suitable batteries |
Lithium battery, lithium pouch cell(Lithium polymer battery), Nickel metal hydride, nickel cadmium battery, lead-acid battery and so on. |
|
Dimension |
250*190*90mm |
|
Weight |
2kg |
|
Warranty |
One Year limited warranty with lifetime support |
Related Machine
PACKAGE:
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
DELIVERY TIME:15-20 days after confirming order,detail delivery date should be decided according to production season and order quantity
