5V3A 6A 512BChannel 18650 Cylindrical Cell Charge and Discharge Capacity Battery Testing Machine 5V3A 6A 512BChannel 18650 Cylindrical Cell Charge and Discharge Capacity Battery Testing Machine 5V3A 6A 512BChannel 18650 Cylindrical Cell Charge and Discharge Capacity Battery Testing Machine

5V3A 6A 512BChannel 18650 Cylindrical Cell Charge and Discharge Capacity Battery Testing Machine

  • ItemNo :

    LITH-BT0502-512-C
  • MOQ :

    1
  • Color :

    optional
  • Port :

    Xiamen Port
  • Compliance:

    CE
  • Warranty:

    2 years
  • Delivery Time:

    5 days
  • Email :

    Louis@lithmachine.com
  • Product Details

5V3A 6A 512 Channel 18650 Cylindrical Cell Charge and Discharge Capacity Battery Testing Machine


FEATURE

5V6A-512 Battery Testing Equipment is a popular newly developed battery testing system for Li-ion cells, LIPB, Ni-MH cells, Ni-Cd cells.

This Equipment can be used as research machine, as cell positive /cathode pole material, battery cycle life testing etc.

This Equipment also can be used in pilot run period and in quality assurance department, since it has functions as formatting cells, grading capacity, testing cells group,checking battery pack, and processing test data,etc.


Specofication:

Number of Device Channels

The whole machine has 512 channels in total

Workflow Control Mode

Whole cabinet control

Charging Mode

Constant current and constant voltage

Charging Cut-off Conditions

Voltage, current, time, capacity

Discharge Mode

Constant current

Discharge Cut-off Conditions

Voltage, time and capacity

Sampling Inspection Cycle

≤10s

Voltage Measurement Range

0 ~ 5V,

Resolution 1mV

Battery Voltage Range

Charging: 0 ~ 4.5V,

Discharging: 4.5 ~ 2V

Constant Voltage Range

3~4.5V

Voltage Accuracy

±0.05%RD+0.1%FS

Current Range

Charge 0.025-6A,

Discharge 0.025-6A,

Resolution 1mA

Current Accuracy

±0.1%RD+0.1%FS

Time Frame

Any setting within 0 ~ 30000 minutes, time unit is min

Time Accuracy

≤±0.1%

Fixture Type

Cylindrical four wire fixture

Fixture Spacing

35mm

Support Battery Height

0~90mm

Working Power Supply

Three phase four wire system, AC380V ± 5%, 50Hz, power consumption ≤ 28KW

Communication Mode

RS485baud rate 57600

Overall Dimension

1440mmWidth*500mmDeep*1840mmHigh

Work Environment

Temperature: 0-40 ℃, relative temperature ≤ 85%

Full Load Operating Current

he maximum phase line is 30A, and the maximum zero line is 3A

Equipment Starting Current

The closing moment of air switch is about 60A

Machine weight

About 250 kg







 512 battery analyzer

Battery capacity testing equipment


                      18650 battery capacity tester


                      Battery Tester

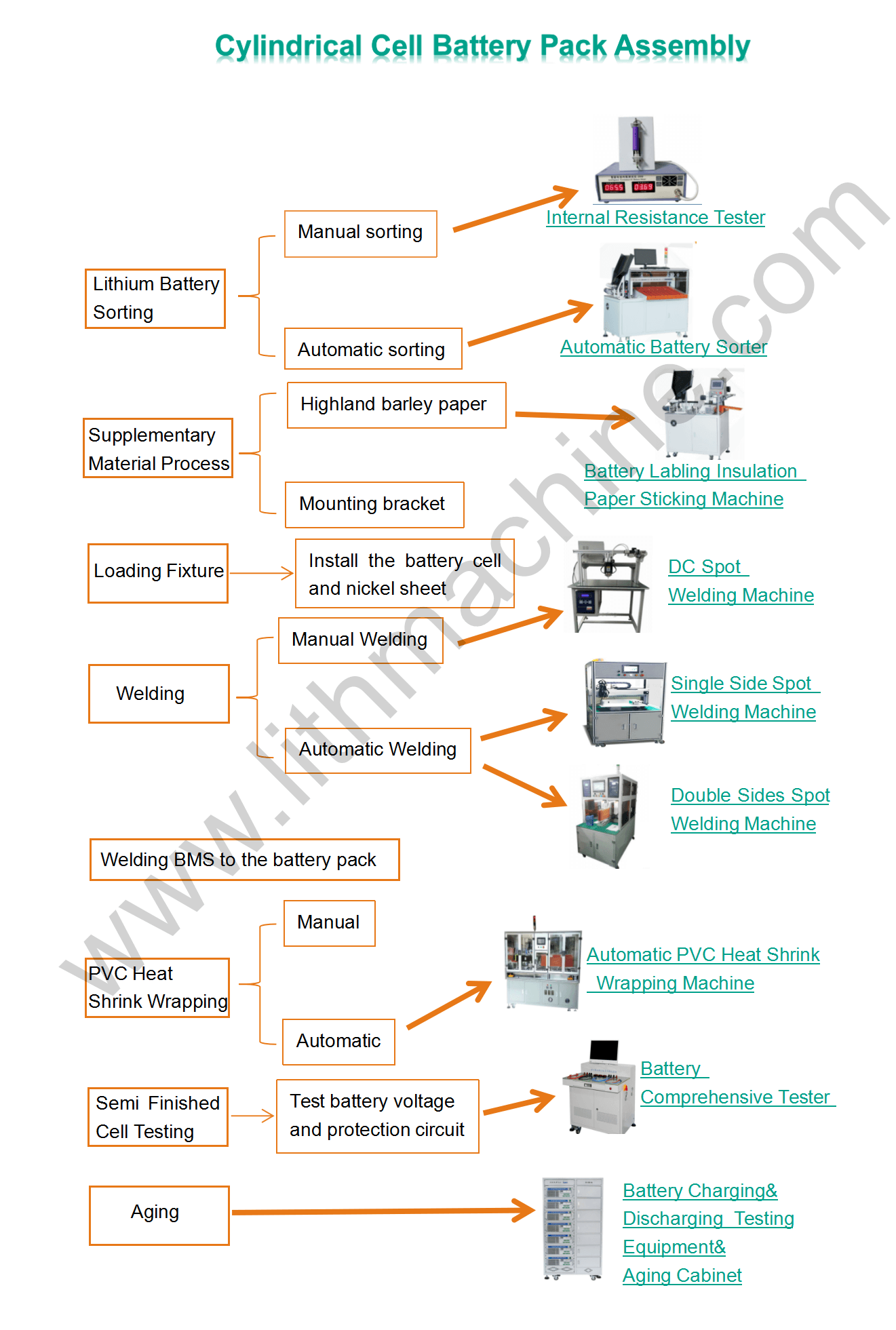

Related Machine






PACKAGE:

     1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

     2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

     3 Responsible for the damage during the shipping process, will change the damage part for you for free.



DELIVERY TIME:15-20 days after confirming order,detail delivery date should be decided according to production season and order quantity
