Introduction

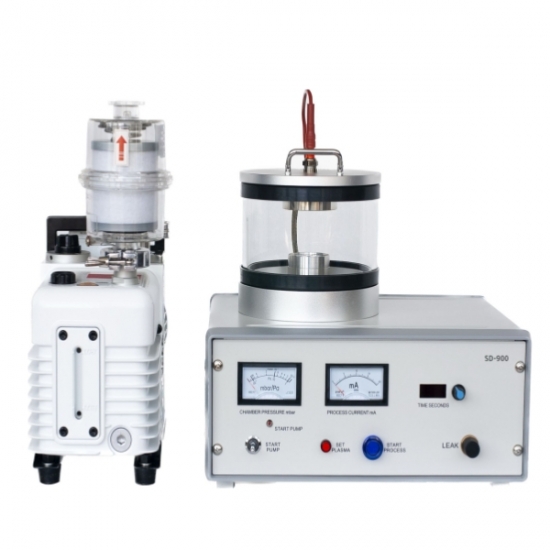

Ion Sputtering Coater (SD900 Model) is ideal and designed for lab SEM sample preparation. It is widely used to coat non-conductive SEM samples with Au for better imaging. It is also excellent for surface treatment.
Working vacuum pressure can be achieved quickly within 2 minutes when using proper vacuum pump. It generates much less heat. It is user friendly and easy to operate.
Vacuum pump is included.
Parameter
|
Vacuum pump set |
(Oil required) rotary vacuum pump |
|
Rotary pumping speed |
50 Hz : 8 m³/h (2.2 L/s)/ 60 Hz : 9.6m³/h (2.6 L/s) |
|
Vacuum limit |
2Pa |
|
Max sputtering current |
0-20mA |
|
Working pressure |
30Pa -7 Pa |
|
Vacuuming time |
<5 Min(2 Pa) |
|
Vacuum measure |
Measuring range from atmosphere to 2*10-2mbar |
|
Gas control |
Gas flow controller |
|
Chamber size |
Φ150*120mm (height) scratch resistant quartz glass |
|
Magnetron target source |
Target size φ 50*0.1mm(Au)/ target source: Au,Ag,Pt |
|
Operation method |
Instruction Manual |
|
Weight/size |
45kg/360mm length x 300mm wide x 380mm high |
|
Power supply |
AC 110V 60Hz or AC 220V 50Hz |
|
Power consumption |
<1500W |
|
Cooling method |
Air cooling |
|
Warranty |
One year limited warranty with lifetime product support
|
PACKAGE:
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damaged part for you for free.
DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to
production season and order quantity.
