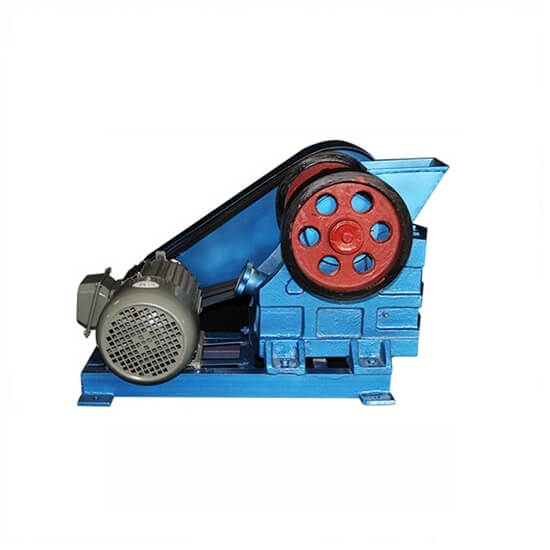

Lab Jaw Crusher Machine for Primary Materials

  • ItemNo :

    LITH-XPC
  • MOQ :

    1
  • Place of Origin:

    China
  • Warranty:

    2 years
  • Delivery Time:

    5 days
  • Email :

    Louis@lithmachine.com
  • Product Details

Lab Jaw Crusher Machine for Primary Materials


Laboratory jaw crusher (referred to as jaw crusher) is mainly used for medium-sized crushing of various ores and bulk materials. It can crush materials with compressive strength not greater than 320Mpa. PE series jaw crusher has complete specifications, and its feeding particle size is 125mm~1200mm, which is the first choice for primary crushing.


The main structure of the laboratory jaw crusher: frame, eccentric shaft, large pulley, flywheel, side guard, toggle plate, toggle plate back seat, clearance adjustment screw, return spring, fixed jaw plate and movable jaw plate, etc. The toggle plate also plays an insurance role. The crushing method of this series of jaw crushers is curved extrusion type. The motor drives the belt and pulley, and moves the movable jaw up and down through the eccentric shaft. When the movable jaw rises, the angle between the toggle plate and the movable jaw becomes larger, thereby pushing the movable jaw to approach the fixed jaw, and at the same time, the material is squeezed, Crushing, grinding and other multiple crushing. When the movable jaw goes down, the angle between the toggle plate and the movable jaw becomes smaller, the movable jaw leaves the fixed jaw plate under the action of the pull rod and the spring, and the crushed materials are discharged from the lower opening of the crushing cavity. With the continuous rotation of the motor, the crushing jaw plate is periodically crushed and discharged to achieve mass production.


Laboratory jaw crusher use

The laboratory jaw crusher is mainly used for coarse, medium and fine crushing of limestone, calcium carbide, carbide slag, shale, basalt, river pebble, bluestone and other ores. , The calcium carbide plant has a remarkable effect, and is widely used in mining, metallurgy, chemical industry, building materials, water conservancy, transportation and other industries.


Laboratory jaw crusher features

1. The crushing ratio is as high as about 15, and the particle size is uniform;
2. The gasket-type discharge port adjustment device has a large adjustment range and reliable operation;
3. High production efficiency and low energy consumption. Compared with ordinary fine jaw crushers, the processing capacity is increased by 20-35% and the energy consumption is reduced by 15-20%;
4. The crushing cavity is deep and there is no dead zone, which improves the feeding capacity and output;
5. The use of hyperboloid jaws has less wear, and under the same process conditions, the life of jaws can be extended by more than 3-4 times, which is more obvious for highly abrasive materials;

6. The lubrication system is safe and reliable, the parts are easily replaced, and the maintenance workload is small.


Model specifications

XPC60*100

XPC100*150

XPC100*150

XPC150*125

XPC150*200

Capacity (kg/h)

0.32-0.4

0.4-1.8

0.4-1.8

0.3-2

1.5-2

Feeding port size (mm)

100*60

150-100

150*100

150*125

200*50

Feeding size (mm)

50

90

90

100

120

Discharging size (mm)

1-3

5-25

5-25

6-38

5-30

Spindle speed (RPM /min)

650

380

380

375

375

Power (kW)

1.5

2.2

2.2

3

5.5

Voltage (V)

380

380

380

380

380

Quality (kg)

100

190

190

417

450





PACKAGE:

  1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

  2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

  3 Responsible for the damage during the shipping process, will change the damaged part for you for free.



DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to

production season and order quantity.
