Lab Benchtop Stainless Steel Vacuum Glove Box With Airlock & Vacuum Flange

Lab Benchtop Stainless Steel Vacuum Glove Box With Airlock & Vacuum Flange

  • Product Details

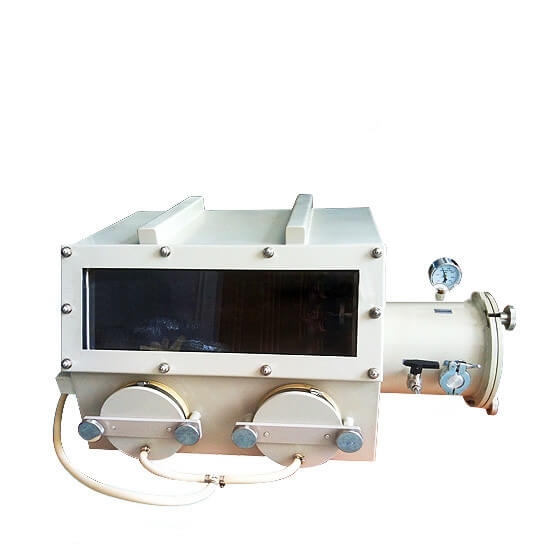

Lab Benchtop Stainless Steel Vacuum Glove Box With Airlock & Vacuum Flange


It is mainly composed of main box, transit room and base. If user has special requirement, it can also be customized and designed according to customer needs.There are 2 or 3 glove interfaces. In front of the main box, user can clearly view the inner situation. There is one vacuum ball valve above the main box body. It can be used according to user needs. The ball valve can be connected with water faucet when needing water or ventilation. Light bulb can be also installed. Transit room means the transition between the main box and outdoor, composed by two sealed doors, two vacuum ball valves and one room. Two doors isolate main box from connecting with the outdoor, making material putting in and taking out for lab easily.





Parameters of Stainless Steel Vacuum Glove Box

No.

Model No.

Outline Dimension
(mm)

Box Size
(mm)

Transition Cabinet
(mm)

Glove Port
(mm)

Vacuum Degree

1

GBV-1

1030*570*530

600*500*500

Ф200*280

Ф145

0-0.1Mpa
Keep vacuum for
more than 12 hours

2

GBV-2

1295*715*675

800*650*650

Ф273*350

Ф145

3

GBV-3

1755*776*1010

1200*700*950

Ф350*400

Ф196




glove box







PACKAGE:

  1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

  2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

  3 Responsible for the damage during the shipping process, will change the damaged part for you for free.



DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to

production season and order quantity.
