Fast and Compact Disc Crushing and Grinding Machine with Steel Grinding Jar

  • ItemNo :

    MSK-SFM-DS

  • MOQ :

    1

  • Place of Origin:

    China

  • Warranty:

    2 years

  • Delivery Time:

    5 days

  • Email :

    Louis@lithmachine.com
  • Product Details


Fast and Compact Dis Crushing and Grinding Machine with Steel Grinding Jar


Features

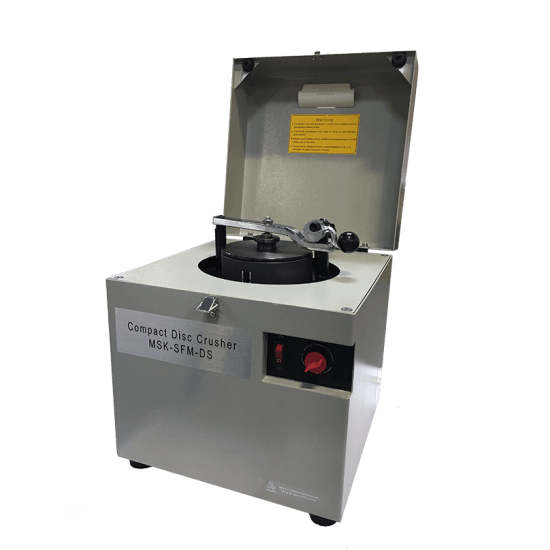

MSK-SFM-DS is a compact disk mill with steel grinding jar. It is an ideal tool to quick prepare the sample for finer milling after sintering. It features fast crushing and grinding to prepare the sample for finer milling. An ideal miller for coal, ore, rock or ceramic compounds.

Specifications

Feature

  • Fast Crushing and Grinding to prepare the sample for finer milling.
  • Interlock protection is included to cut the power if the lid is open during the crushing process.
  • With Four secure fixture, MSK-SFM-DS can be fastened on the platform.
  • An ideal miller for coal, ore, rock or ceramic compounds.
  • Click the video left to see how it work for crushing


Working Voltage

  • 208 - 240V AC 50Hz, 180W AC motor
  • For operation under 110V AC, please order a 300W transformer.

Timer

0  to  5 minutes adjustable



Crushing & Grinding Capability



Grinding Jar Dimension

  • Manganese steel grinding parts
  • 100 mL capacity for about 50g of material

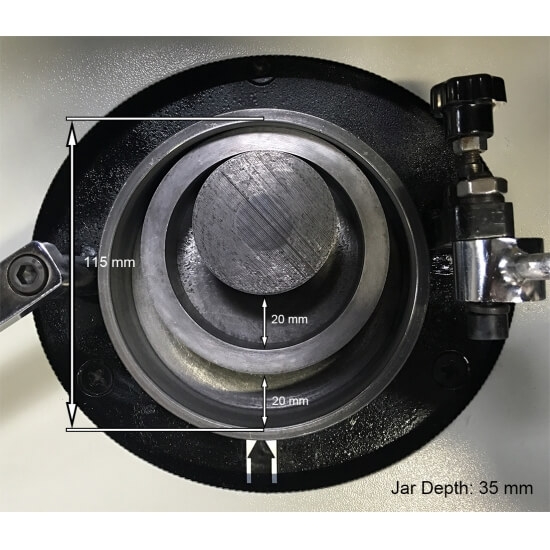

  • Grinding Jar: 115mm I.D. x 35mm Depth (See Fig.4)
  • Material:
    • Material hardness must be lower than Mohs 8
    • Space between grinding disc and jar can contain materials under 20mm in diameter. and 35mm in height. (See Fig.3)
  • Product optional
    • Product size: 80 - 200 mesh according to operating time.
    • Please use our 3'' Dia. Sieve Set No.200&450 Mesh   or  Compact Ultrasonic Sieving System - MSK-SYU-3

      to filter the product (See Fig.1 and 2)

Net Weight

75 lbs

Shipping Weight & Dimensions

110  lbs; 40"x30"x27"

Dimension

                    Machine: 250×250×330 mm (L x W x H)

Certification

CE Certified
NRTL certification are available upon request

Warranty

One-year limited warranty with lifetime technical support

Application Note


  • Place grinder on a firm platform and isolated room to avoid noise, it is suggested to fasten the grinder on the platform.
  • Please clean the grinding ring before each use.
  • May cause contamination by Mangalloy (manganese steel) grinding disc and jar.
  • Material hardness must be lower than Mohs 8

Product Images











PACKAGE:

  1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

  2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

  3 Responsible for the damage during the shipping process, will change the damaged part for you for free.



DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to

production season and order quantity.
