Cylindrical Battery Stripping Machine

Cylindrical Battery Stripping Machine

  • ItemNo :

    LITH-BJXC-LP​E01

  • MOQ :

    1

  • Place of Origin:

    China

  • Color :

    optional

  • Port :

    Xiamen Port

  • Compliance:

    CE

  • Warranty:

    2 years

  • Delivery Time:

    5 days

  • Email :

    Louis@lithmachine.com
  • Product Details

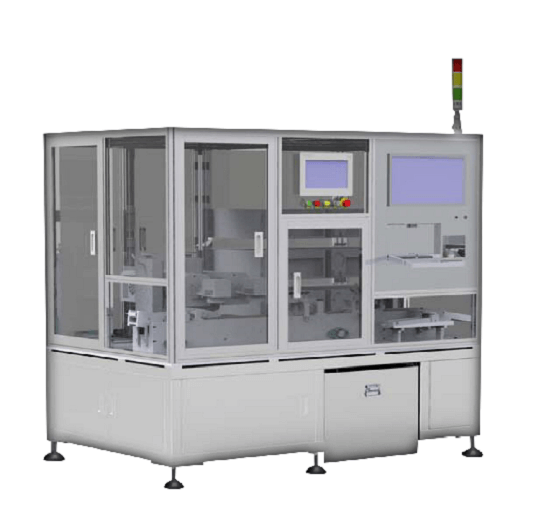

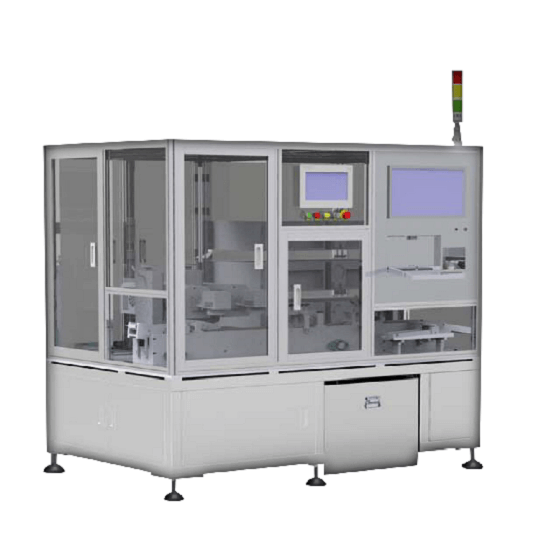

Cylindrical Battery Stripping Machine




Products Description

This battery peeling equipment is used for 18650,21700 cylinder battery peeling, the equipment uses laser cutting peeling, cutting high efficiency and will not cause damage to the battery surface, after peeling automatic detection and spray code, NG automatic removal and collection, skinning waste collection function. Can be customized according to the use of the design of the battery feeding mode, can be used as a stand-alone machine, can also be used with the automated production line.



Performance Characteristics

1. High-speed laser cutting, high efficiency, no damage to the surface of the battery;
2. CCD detection of peeling results and automatic removal of NG products;
3. Skinning waste collection function to ensure that the equipment is clean and tidy;
4. Automatic coating on the surface of battery steel case.




Technical Parameter

Model Number

LITH-BJXC-LPE01

Beat

60PPM

Voltage Source

380V 50HZ

Batteries

18650/21700/22650 ect.

Power

1.5KW

Pressure

0.5-0.7MPA

Laser

Cutting 30-50W

Dimensions

1900*1200*1900(mm)






Cylindrical Battery Stripping Machine










PACKAGE:

  1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

  2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

  3 Responsible for the damage during the shipping process, will change the damaged part for you for free.



DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to

production season and order quantity.
