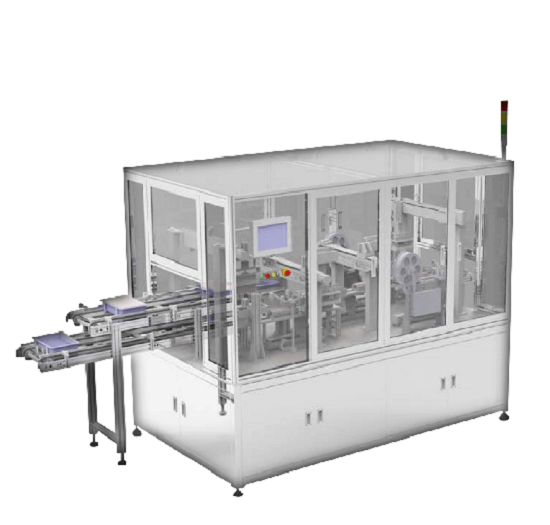

Cylindrical Battery Adhesive Pasting Machine

Cylindrical Battery Adhesive Pasting Machine

  • ItemNo :

    LITH-​BJXC-PPT02

  • MOQ :

    1

  • Place of Origin:

    China

  • Color :

    optional

  • Port :

    Xiamen Port

  • Compliance:

    CE

  • Warranty:

    2 years

  • Delivery Time:

    5 days

  • Email :

    Louis@lithmachine.com
  • Product Details
Cylindrical Battery Adhesive Pasting Machine




Products Description

The cylinder battery adhesive pasting equipment is used for pasting high-temperature adhesive tape after stripping cylinder batteries such as 18650,21700, etc. . The full box battery is fed by feeding line, the empty box reflows automatically, the high-speed servo module manipulator grasps the load-shifting battery, the tape material is fed, the servo mechanism feeds the material, the automatic cut off, the equipment stability is good, the efficiency is high. Can be customized according to the use of the design of the battery feeding mode, can be used as a stand-alone machine, can also be used with the automated production line.



Performance Characteristics

1. The thickness of the tape is 0.05 mm, no centrifugal paper is needed;
2. Automatic feeding and cutting of adhesive tape, accuracy control ± 0.5MM;
3. Roller type adhesive tape, high stability and efficiency, the rhythm can reach 60 PPM;

4. It can be connected with the production line to realize the automatic flow of the battery.




Technical Parameter

Model Number

LITH-BJXC-PPT02

Beat

60PPM

Voltage Source

380V 50HZ

Batteries

18650/21700/22650 ect.

Power

3.6KW

Pressure

0.5-0.7MPA

Adhesive Tape

0.03-0.07mm Polyimide/PI

Dimensions

2200*1700*2000(mm)

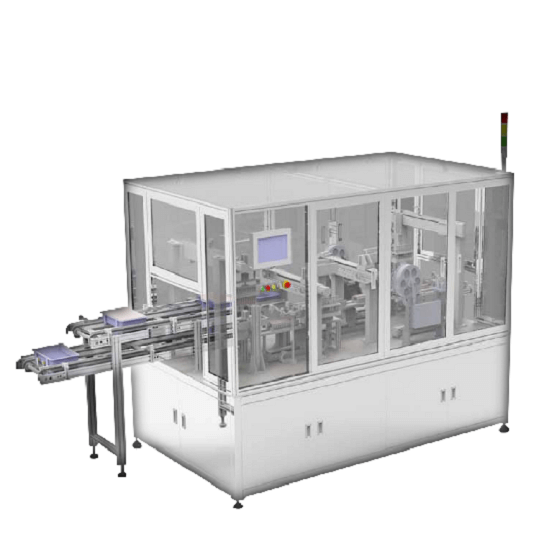

Cylindrical Battery Adhesive Pasting Machine










PACKAGE:

  1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

  2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

  3 Responsible for the damage during the shipping process, will change the damaged part for you for free.



DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to

production season and order quantity.
