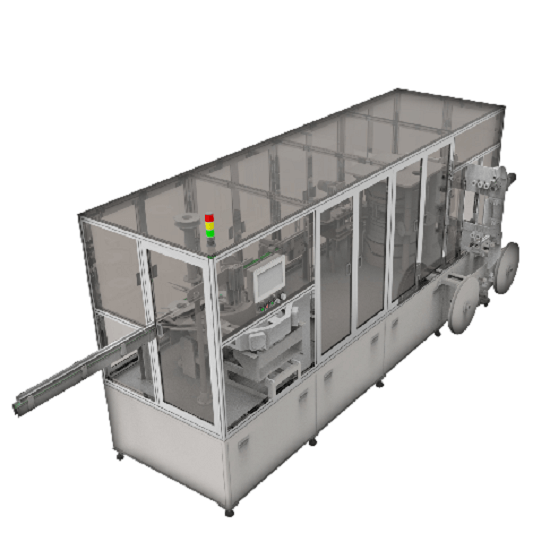

Cylindrical Battery Membrane Machine - Small Battery

Cylindrical Battery Membrane Machine - Small Battery

  • ItemNo :

    LITH-PEW18-D-03

  • MOQ :

    1

  • Place of Origin:

    China

  • Color :

    optional

  • Port :

    Xiamen Port

  • Compliance:

    CE

  • Warranty:

    2 years

  • Delivery Time:

    5 days

  • Email :

    Louis@lithmachine.com
  • Product Details
Cylindrical Battery Membrane Machine - Small Battery




Products Description

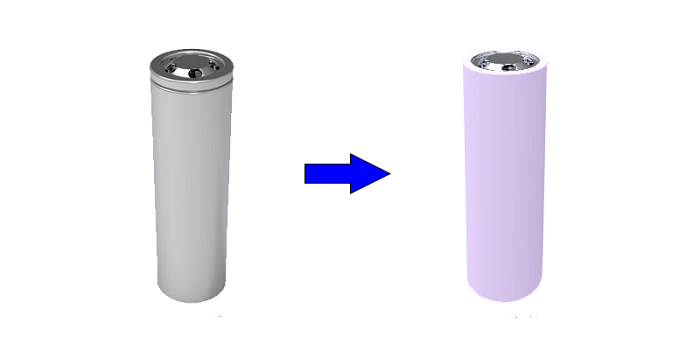

The cylindrical cell laminating equipment is used for laminating and heat shrinkable film of 18650, 21700, 22650 and other cylindrical cells. The cell uses conveyor belt conveyor chain, PET film is automatically fed and cut, and the beat of cell laminating can reach 130 PCS / min. The equipment has high efficiency and good stability, and can be connected with the front and rear production line equipment through belt line transportation.



Performance Characteristics

1. Automatic film feeding and cutting, precision control ±0.5;
2. Automatic core film sleeve, shrink film;
3. The beat can reach 130 pcs / min;
4. It can connect with the production line seamlessly to realize the automatic flow of cell.




Technical Parameter

Model Number

LITH-PEW18-D-03

Beat

130pcs/min

Voltage Source

380V 50HZ

Batteries

18650/21700/22650 ect.

Power

4KW

Table Height

600mm

Pressure

6kgf/cm²

Dimensions

4100*1200*2000(mm)







    Cylindrical Battery Membrane Machine










PACKAGE:

  1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

  2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

  3 Responsible for the damage during the shipping process, will change the damaged part for you for free.



DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to

production season and order quantity.
