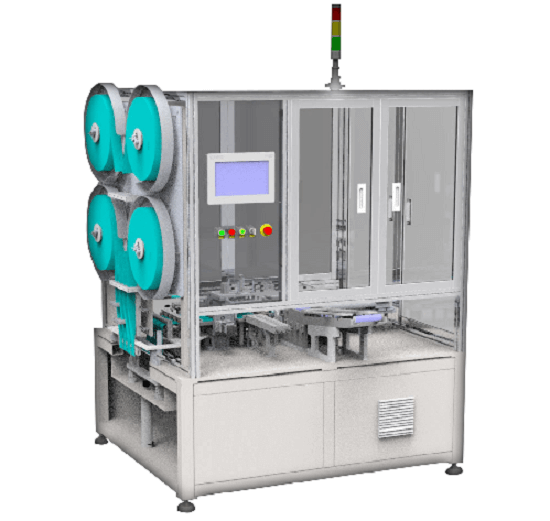

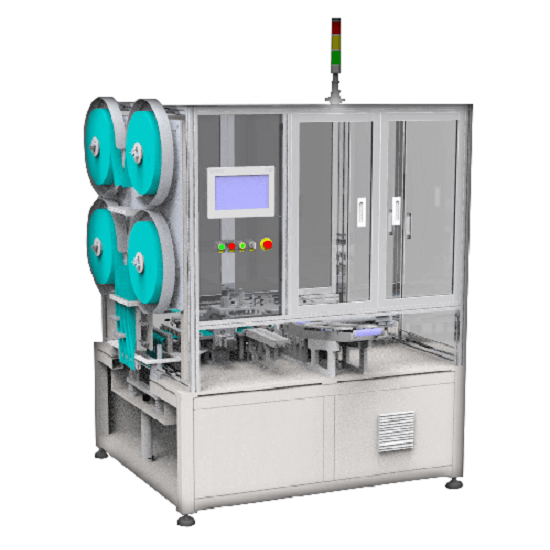

Cylindrical Battery Membrane Machine - Large Battery

Cylindrical Battery Membrane Machine - Large Battery

  • ItemNo :

    LITH-PEW18-D-07

  • MOQ :

    1

  • Place of Origin:

    China

  • Color :

    optional

  • Port :

    Xiamen Port

  • Compliance:

    CE

  • Warranty:

    2 years

  • Delivery Time:

    5 days

  • Email :

    Louis@lithmachine.com
  • Product Details
Cylindrical Battery Membrane Machine - Large Battery




Products Description

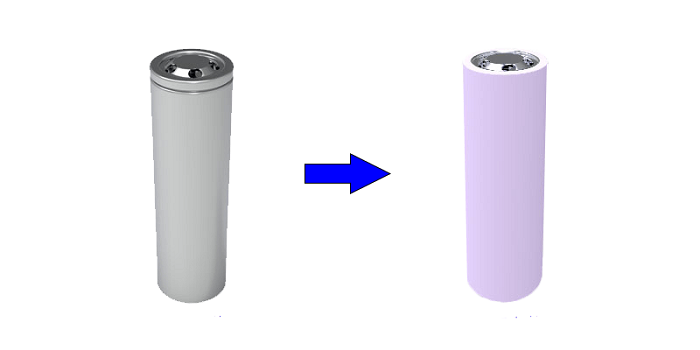

The cylindrical battery laminating equipment is used for laminating and heat shrinkable film of 26650, 32131, 32650 and other cylindrical cells. Four cells are coated at a time. The cells are fed by conveyor line, PET film coil, step-by-step film feeding and automatic film cutting. After laminating, the cell film is heat shrinkable, and the laminating beat can reach 100pcs/min. The equipment has high efficiency and good stability, and can be connected with the front and rear production line equipment.



Performance Characteristics

1. Automatic film feeding and cutting, precision control ±0.5;
2. Four cells coated at the same time, high efficiency;
3. The beat can reach 100 pcs/min;
4. It can connect with the production line seamlessly to realize the automatic flow of cell.




Technical Parameter

Model Number

LITH-PEW18-D-07

Beat

100pcs/min

Voltage Source

220V 50HZ

Batteries

22650/32131/32650

Power

1.5KW

Table Height

650mm

Pressure

6kgf/cm²

Dimensions

1550*1300*1950(mm)







    Cylindrical Battery Membrane Equipment










PACKAGE:

  1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

  2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

  3 Responsible for the damage during the shipping process, will change the damaged part for you for free.



DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to

production season and order quantity.
