Automatic PVC Heat Shrink Wrapping Machine for Cylindrical Battery Pack Assembly

Product Categories

Contact Us

  • Contact Person : Louis Yang
  • Email : Louis@lithmachine.com
  • Address : No. 5 Nanshan Road, Huli District, Xiamen City, Fujian Province, China
Automatic PVC Heat Shrink Wrapping Machine for Cylindrical Battery Pack Assembly Automatic PVC Heat Shrink Wrapping Machine for Cylindrical Battery Pack Assembly Automatic PVC Heat Shrink Wrapping Machine for Cylindrical Battery Pack Assembly Automatic PVC Heat Shrink Wrapping Machine for Cylindrical Battery Pack Assembly

Automatic PVC Heat Shrink Wrapping Machine for Cylindrical Battery Pack Assembly

  • ItemNo :

    LITH-Shrinking
  • MOQ :

    1
  • Color :

    Optional
  • Port :

    Xiamen Port
  • Compliance:

    CE
  • Warranty:

    2 years
  • Delivery Time:

    5 days
  • Email :

    Louis@lithmachine.com
  • Product Details


Automatic PVC Heat Shrink Wrapping Machine for Cylindrical Battery Pack Assembly

Features

(1) High efficiency: the film efficiency is 50~70PCS/MIN. It is 6~10 times of artificial efficiency;

(2) High precision: the precision servo motor and high-precision mechanical structure make the film precision up to ±0.1MM, and the technology is leading the industry;

(3) Highly intelligent: the humanized operation interface is convenient for manual operation, the fault is automatically alarmed, and the fault point is clear at a glance;

(4) Simple operation and maintenance: the personnel can operate the equipment with a little training, and the maintenance is relatively simple;

(5) High flexibility of equipment: After replacing the fixture and mold, it can be adapted to cylindrical batteries such as AA, AAA and 18650.



Specifications

(Can be customized)

Model

Lith-Shrinking

Specification

 AA,AAA,18650

Film speed

 50~70PCS/MIN

Film precision

 ±0.1MM

Power supply

380V/220V

Air pressure

0.5~0.7Mpa

Power

9KW

Weight

800KG

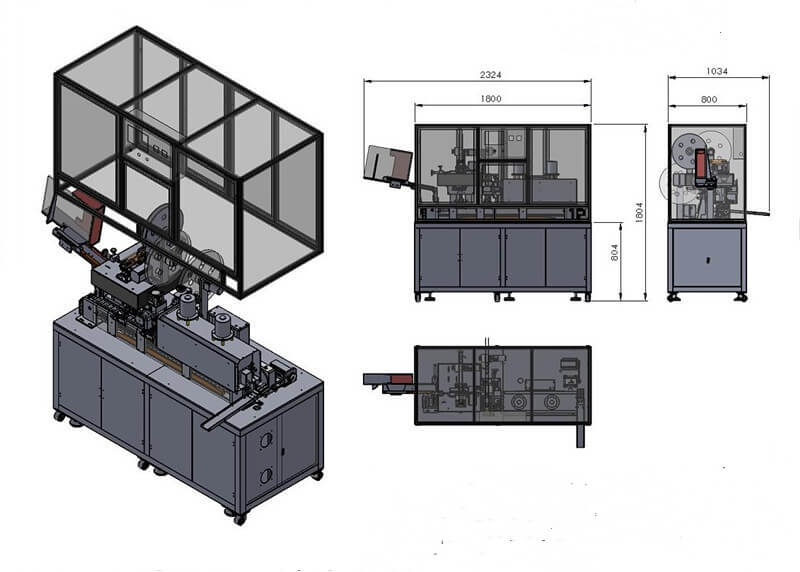

Machine size

2100(L)*950(W)*1600(H)

Casing requirements

The width of the coil is 29.7±0.2mm, and the thickness of the single layer is 0.08±0.01mm.

Insulation sheet coil size

width between 20 ± 0.1mm (no material break and tape interface in the middle of the coil)

Insulation sheet die size

Outer diameter 17.4 ± 0.1 mm; inner diameter 10.5 ± 0.1 mm; inner and outer diameter concentricity ± 0.10 mm

Heat shrinkable bottom edge size

2.5mm ± 0.3mm (size error is related to casing material and baking conditions)




 Heat Shrink Wrapping Machine


Automatic wrapping machine


Battery Shrinking Machine


    Heat Shrink Wrapping Machine



Related Machine






PACKAGE:

     1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

     2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

     3 Responsible for the damage during the shipping process, will change the damage part for you for free.



DELIVERY TIME:15-20 days after confirming order,detail delivery date should be decided according to production season and order quantity
