5-22 Channel 18650 26650 32650 21700 Cylindrical Cell Battery Sorting Machine

Product Categories

Contact Us

  • Contact Person : Louis Yang
  • Email : Louis@lithmachine.com
  • Address : No. 5 Nanshan Road, Huli District, Xiamen City, Fujian Province, China
5-22 Channel 18650 26650 32650 21700 Cylindrical Cell Battery Sorting Machine 5-22 Channel 18650 26650 32650 21700 Cylindrical Cell Battery Sorting Machine 5-22 Channel 18650 26650 32650 21700 Cylindrical Cell Battery Sorting Machine 5-22 Channel 18650 26650 32650 21700 Cylindrical Cell Battery Sorting Machine 5-22 Channel 18650 26650 32650 21700 Cylindrical Cell Battery Sorting Machine 5-22 Channel 18650 26650 32650 21700 Cylindrical Cell Battery Sorting Machine

5-22 Channel 18650 26650 32650 21700 Cylindrical Cell Battery Sorting Machine

  • ItemNo :

    LITH-011
  • MOQ :

    1
  • Color :

    optional
  • Port :

    Xiamen Port
  • Compliance:

    CE
  • Warranty:

    2 years
  • Delivery Time:

    5 days
  • Email :

    Louis@lithmachine.com
  • Product Details


5-22 Channel 18650 26650 32650 21700 Cylindrical Cell Battery Sorting Machine

Features

The 5/6/9/10/11/13/20/22 channel battery sorter of cylindrical battery automatic sorter is used for automatic sorting of voltage and internal resistance of 18650/21700/26650/32650 cylindrical cells. It can also separate voltage or internal resistance separately. This test and sorting is composed of PLC control + PC industrial computer, PLC control AC servo motor, stepping motor and cylinder to complete sorting function, PC is responsible for data acquisition and processing, as well as data preservation. The number of finished cylindrical cores sorted is about 4500 per hour. The mechanical structure design is simple and generous, the system test performance is stable, the quality is first-class, is currently a high cost-effective cylindrical battery sorting equipment in the market.


Advantages

1. Stable control system

2. High configuration regulator

3. High Precision Work Procedure

4. High cost performance ratio of products


Technological Process

The battery resistance and voltage are set by the battery testing software of the upper computer, and the following functions are automatically completed by PLC:

Manual filling of batteries→wave wheel rotating feeding→belt carrying batteries→ejector cylinder jacking batteries→ test cylinder closure (test instrument uploading data, software sorting)→mechanical gripper sorting batteries.

The equipment is equipped with acoustooptic alarm, which can be sorted to complete automatic shutdown. Full material alarm, fault alarm, etc. Operating parameters can be set according to the actual requirements of customers.


Structure of Sorter

1) The equipment has compact and reasonable structure, beautiful appearance and small space occupation.

2) The equipment is simple to operate, and no professional training is required. The workers can easily master it.

3) The equipment is controlled by PLC + PC. PLC is responsible for battery feeding, transporting and collecting. PC is responsible for data acquisition of battery test instruments, voltage resistance classification, easy operation, high efficiency, labor saving and good product performance.

4) The equipment is made of high-quality thick cold-rolled sheet metal and aluminium profile frame.

5) The equipment is equipped with universal movable casters, which can move easily when shifting.

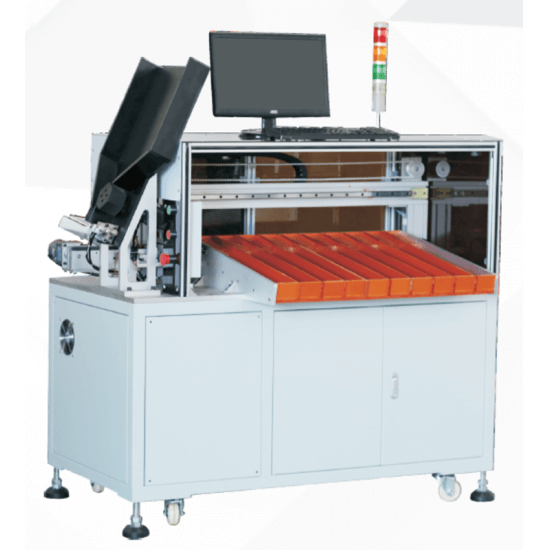

11 Channel Cylindrical Battery Sorter


SPECIFICATION:

Model

LITH-011

Power supply

AC220V ± 10% 50Hz

Voltage

900W

Sorting parameters

Open Circuit Voltage and AC Internal Resistance

Compressed Air Pressure

0.5 ~ 1.0Mpa

Sorting Speed

80PPM

Productivity

5000pcs/h

Dimension

1320x880x1450mm

Adaptation Battery

Cylindrical Battery

(18650,32650,18500,26650,14500,21700 etc.)

Receiving Channel

11 channels

Internal Resistance Tester

HIOKI3561 or HK3561



HIOKI3561:

Open circuit voltage accuracy:± 0.01% rdg;

Display Resolution: 0.1 millivolt;

Internal impedance accuracy:± 0.1% rdg;

Display Resolution: 0.01 mΩ



HK3560:

Open circuit voltage accuracy: ± 0.05% rdg;

Display Resolution: 0.1 millivolt;

Internal impedance accuracy:± 0.3% rdg;

Display Resolution: 0.01 mΩ

Total weight

280kg

Control component

7.5 inch touch screen, 3-axis PLC programmer

Motion device

Closed-loop stepper motor is used for shifting, accurate positioning and synchronous belt conveying the core to prevent the surface of the core from being damaged.

Feeding

Using hopper feeding mode, 500 PCS can be put in one time.

Data storage

Test data can be stored on a U disk

Scan code function

Can be customized

Automatic Online Interface

It can be customized to connect the outlet of the automatic surface cushion machine in the machine hopper to realize the automatic connection of the electric cores and save the labor cost.

Other

Customizable scanner and database data docking



Optional Distribution Core Dynamic Tester, reflecting the quality and load-carrying performance of the core



Customizable automatic connection automatic surface mattress machine (electric core poured into automatic surface mattress machine, pasted surface mattress automatically flowed into automatic sorter, sorting, saving manpower)



Automatic collection of production quantity to show current production efficiency


Equipment Configuration List

Tester

HIOKI3561 or HK3561

Computer

Industrial Computer

PLC

FX3U-80MT/ES-A and SC-09

Servo

Panasonic A5 Series

Sensors

Panasonic and Omron, Japan

Guideway

ShangYin, Taiwan

Bearing

Japan NSK

Cylinder

Adec

Indoor temperature

- 30 ℃ ~ 70 ℃

Factory

No pollution and no strong electromagnetic interference




Cylindrical Cell Sorter

Cylindrical Cell Selector

Related Machine






PACKAGE:

     1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

     2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

     3 Responsible for the damage during the shipping process, will change the damage part for you for free.



DELIVERY TIME:15-20 days after confirming order,detail delivery date should be decided according to production season and order quantity
