Louis@lithmachine.com120um Thick Pouch Cell Case Material Aluminum Laminated Film
SPECIFICATION
|
Layers from outside (Shiny) to inside (Mat)
|
Polyamide (JIS Z1714): 0.025mm (+-0.0025mm) |
|
Thickness: |
120μm |
|
Width |
400mm |
|
Length |
10m |
|
Surface quality |
Mat finish |
|
Pinholes |
Subject to the applicable aluminum foil standard |
|
Impurity |
1mm or less in diameter |
|
Fish Eye |
2mm or less in diameter (clear),1mm or less in diameter (colored) |
|
Molding Depth |
≥5.0mm |
|
Electrical Insulating |
Good |
|
Hot Sealing Coniditon |
180-190°C |
|
Moisture Vapor / O2 Transmission Rate |
200ppm / 5 years |
|
Laminate Strength |
Nylon/Al more than 2N/15mm Al/CPP more than 5N/15mm |
|
Heat Seal Strength |
More than 22.5N/15mm wide at 200℃ x 0.2Mpa x2 sec by TMAX heat sealing |
|
Solvent Retention |
Less than 5mg/m2 |
|
Appearance |
Within the sample of the limit |
|
Slip Factor |
CPP/CPP less than 1.0 |
|
Application Notes |

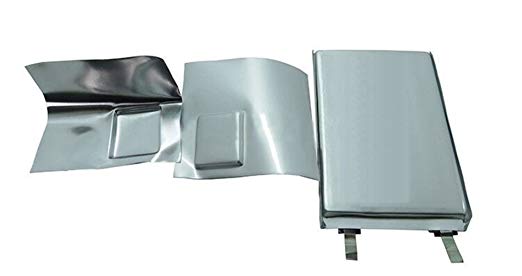

Click the picture below to see the finished polymer Li-Ion battery made by heated sealer |
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damaged part for you for free.
DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to
production season and order quantity.
