5V12A 8 Channel Battery Capacity Tester Charge And Discharge Tester Battery Testing Equipment

ItemNo :
LITH-BTS-5V12A
MOQ :
1
Place of Origin:
China
Color :
optional
Port :
Xiamen Port
Compliance:
CE
Warranty:
2 years
Delivery Time:
5 days
Email :
Louis@lithmachine.com

Contact Now

Product Details

5V12A 8 Channel Battery Capacity Tester Charge And Discharge Tester Battery Testing Equipment

INTRODUCTION:
Battery tester is mainly used to detect current, voltage, capacity, internal resistance, temperature, battery cycle life, and gives the graph. Battery tester has many channels to choose from. It can start at a single point, control at a single point, and measure different types of batteries (nickel-hydrogen, nickel-cadmium, lithium-ion, etc.).

Specific test functions include: battery voltage, load voltage (voltage difference), internal resistance, short-circuit protection time, short-circuit protection recovery function, over-discharge current, charging function, identification resistance (R1, R2), code reading, capacity test (including charge and discharge test).

SPECIFICATION:

Project index                                             Parameter index

Input Power AC 220V ±10% / 50Hz

resolution AD：16bit；DA：16bit

Input Resistance ≥1MΩ

Input Power 826W

Channel Features Constant Current Source and Constant Voltage Source with Independent pairs of Closed-loop Structure

Channel Control Mode Independent Control

Voltage Constant voltage
control range 25mV~5V

Minimum discharge
voltage The upper and lower clamps can discharge to 2.0V, and the 2m wire length can reach 2.5V

Accuracy ± 0.05% of   FS

Stability 0.05% of   FS

Current Per Channel Current
Range Range 1:5mA-1A; range 2:1A-6A; range 3:6A-12A

Accuracy ± 0.05% of   FS

Stability ± 0.05% of   FS

Constant voltage
cut-off current Range 1:2mA; range 2:12mA; range 3:24mA

Stability 0.05% of   FS

Power Single channel maximum output
power 60W

Stability ± 0.1% of   FS

Time Current Response
Time
(10%FS~90%FS)

＜1ms

Step Time Range ≤365*24 h/step，
Time Form Support 00：00：00(h、min、s、ms)

Data Recording Record Condition Time△t：100ms

Voltage△U：10mV

Minimum current interval: range 1: 2mA; Range 2: 12mA; Range 3: 24mA

Record Frequency 10Hz

Charge Charge Mode Constant Current Charge、Constant Voltage Charge、
CC-CV Charge  、CP-Charge

End Condition Voltage、Current、Relative Time、Capacity、-△V

Discharge Discharge Mode Constant Current Discharge   CP-D CR-D

End Condition Current、Current、Relative Time、Capacity、-△V

Pulse Model Charge Constant Current、Constant Power

Project index                                             Parameter index

Discharge Constant Current、Constant Power

Min Pulse Width 500ms

Pulse Number Single Pulse Step Support 32 different Pulse

Charge r To Discharge One Pulse Step Can Support Continuous Charge And Discharge Change

Stop Condition Voltage、 Relative Time

DCIR Testing Support Custom Access Point And Count The DCR

Cycle Loop Measure Range 1~65535 times

Max Steps Per Loop 254

Nested Loop Nested loop Function，Max Support 3 Layers

Protection Software Protection    Power-down Data Protection

   Setting Protection Condition，Setting Parameter：Low Voltage limit、Upper Voltage limit、Low Current limit、Upper Current limit、Delay Time

IP protection level IP20

Voltage and Current Testing Sample 4-wire connecting

Noise <55dB

Data Management MySQL Database

Communication Means TCP/IP Protocol

Data Output EXCEL、TXT

Communication Interface Ethernet Port

Main Channels 8

Data output mode EXCEL 2003,2010、TXT

Communication interface Network port

Server disk configuration 500GB

Leakage current <5uA

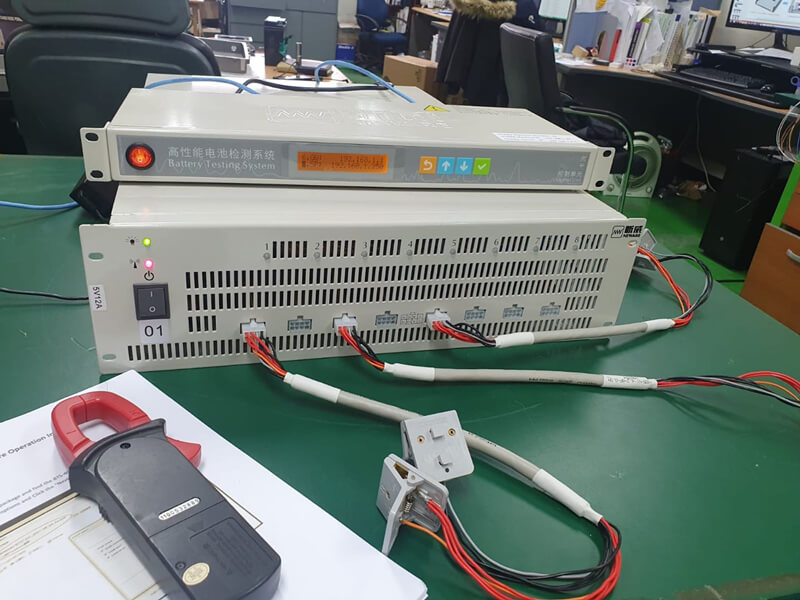

Battery Tester Machine

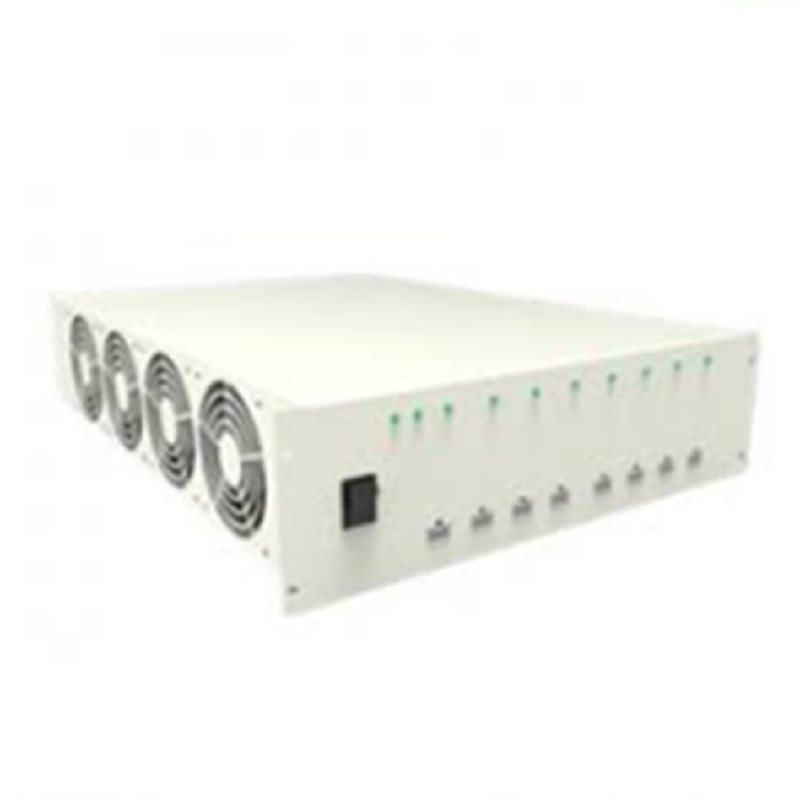

5V6A Cell Tester

Battery Testing Machine

PACKAGE:

1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damaged part for you for free.

DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to

production season and order quantity.
