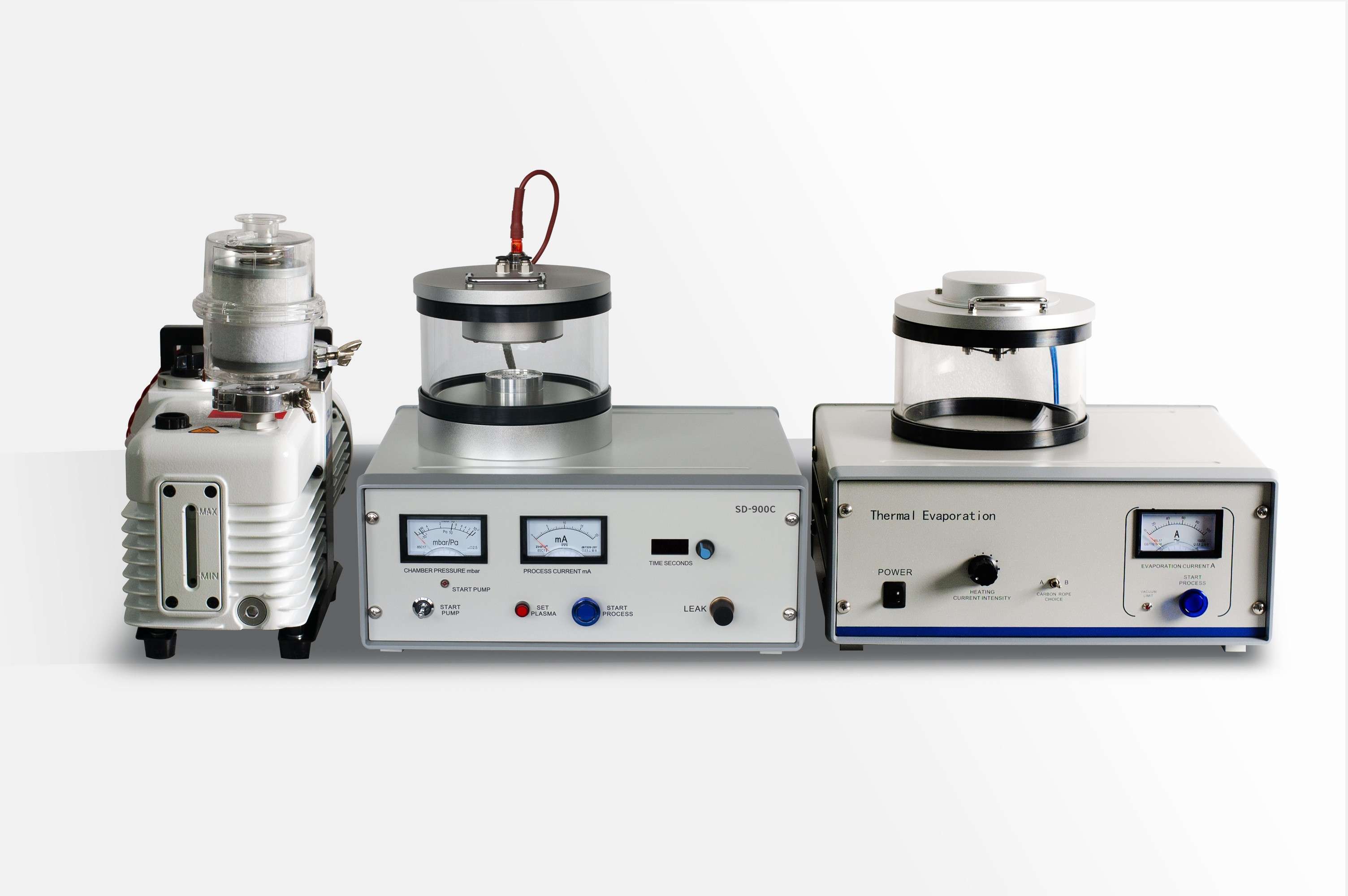

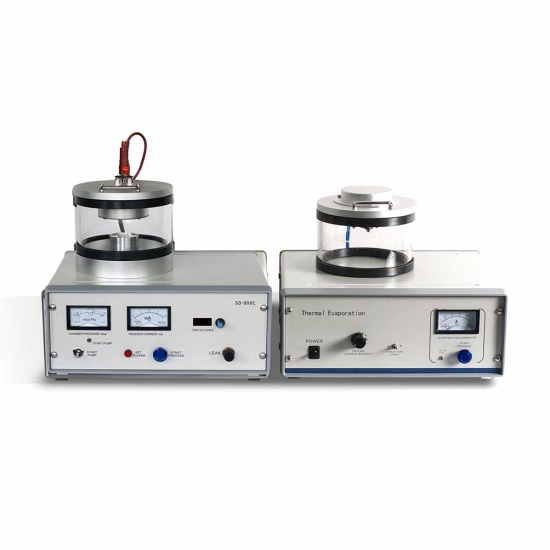

Vacuum Magnetron Ion Thermal Evaporating Carbon Sputter Coater with Working Pressure of 20Pa-8Pa


Introduction

     Magnetron Ion Sputtering Unit &Thermal Evaporation Carbon Coater is ideal and designed for lab SEM sample preparation. SD900C Model (Magnetron Ion Sputtering Unit) is widely used to coat non-conductive or heat-sensitive SEM samples with Au for better imaging. It is also excellent for surface treatment and avoids damage to the substrate sample.

     SD900C Model (Thermal Evaporation Carbon Unit) carbon coater applies a thin conductive carbon film on a sample surface. Applying this coating to a non-conductive sample is an effective preparation technique for diminishing charge-up electron artifacts for analysis in a SEM.

     Working vacuum pressure can be achieved quickly when using proper vacuum pump within 5 minutes. It is user friendly and easy to operate.

     Vacuum pump is included.

     Chiller is optional. (for Magnetron Ion Sputtering Unit)



Parameter

Vacuum pump set

(Oil required) rotary vacuum pump

Rotary pumping speed

50 Hz : 8 /h (2.2 L/s)/ 60 Hz : 9.6/h (2.6 L/s)

Vacuum limit

2Pa

Max sputtering current

100mA

Max evaporation current

100A

Working pressure

20Pa -8 Pa

Vacuuming time

<5 Min(Pa)

Vacuum measure

Measuring range from atmosphere to 2*10-2mbar

Gas control

Gas flow controller

Chamber size

Φ150*120mm (height) scratch resistant quartz glass

Magnetron target source

Target size φ 50*0.1mm(Au)/ target source: Au,Ag,Pt

Evaporation target source

Target material:carbon rope /target source:carbon rope

Operation method

Instruction Manual

(2 units)Weight/size

55kg/360mm length x 300mm wide 380mm high

Power supply

AC 110V 60Hz or AC 220V 50Hz

Power consumption

<2000W

Cooling method

Air cooling(Evaporation)+water cooling (sputtering )

Warranty

One year limited warranty with lifetime product support


Magnetron Sputter Coater
Magnetron Sputter Coater

Magnetron Sputter Coater









PACKAGE:

  1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

  2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

  3 Responsible for the damage during the shipping process, will change the damaged part for you for free.



DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to

production season and order quantity.
