ItemNo :
LITH-NPTMOQ :
1Place of Origin:
ChinaColor :
optionalPort :
Xiamen PortCompliance:
CEWarranty:
2 yearsDelivery Time:
5 daysEmail :

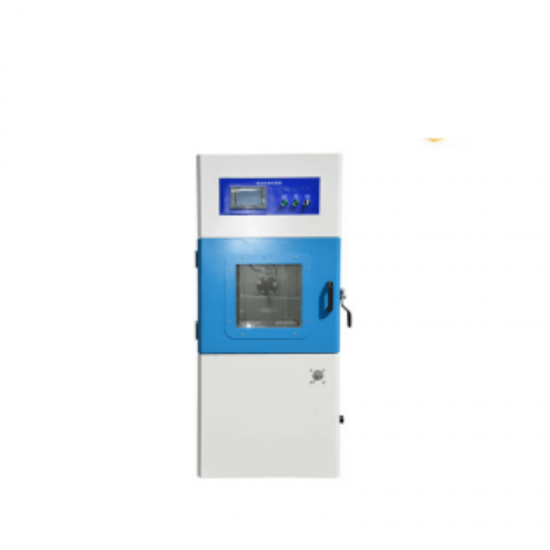

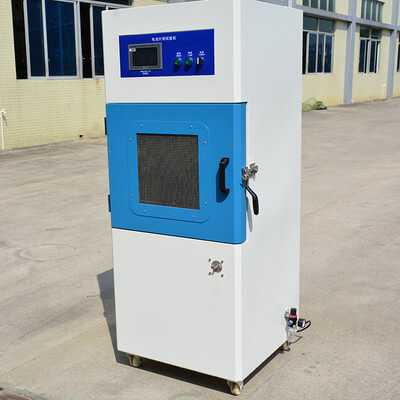

Louis@lithmachine.comLithium ion Battery Nail Penetration Safety Tester Machine For All Types Of Battery
Feature
The test should be carried out at the ambient temperature of 20 ℃± 5 ℃. The battery connected with thermocouple (the contact of thermocouple is fixed on the large surface of battery) is placed in the fume hood, and a 2-8mm diameter stainless steel needle is used to pierce the center of the maximum surface of the battery at the speed of 10mm / s-40mm / s, and keep it for any time.
Applicable standards: MT/T 1051 SAE, QC/T473/744 and other test standards.

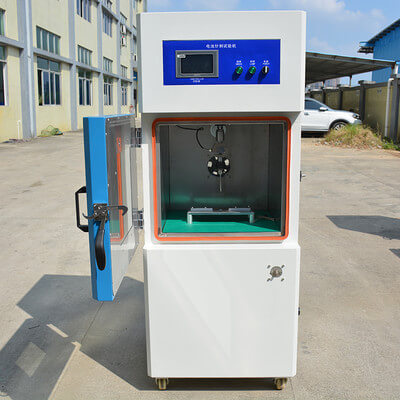

This is an economic nail penetration tester for all types of rechargeable batteries. The nail penetration is performed inside a safe and vented stainless-steel test chamber using a 2~8 mm diameter steel nail at variable speed from 10~100mm/s. There is a fixture to tighten various type cells, pouches or cylinders in the test chamber. It is an important tool for advanced research on the rechargeable battery.
Specifications
|
High temperature resistant steel needle |
ф2mm—ф8mm high temperature resistant steel needle, length 100mm |
|
Distance between needle tip and lower part |
200mm |
|
Clamping distance |
200mm |
|
Needling speed |
10-40mm/s, adjustable |
|
Needing force |
150~200kg |
|
Force display |
Pressure sensor, LCD display |
|
Travel distance |
200mm |
|
Driving mode |
Hydraulic drive |
|
Chamber features |
Fireproof, corrosion resistant and easy to clean. |
|
Chamber size |
520 * 500 * 445mm (W * H *D) |
|
Material of outer box |
Stainless steel |
|
Material of inner box |
Stainless steel box, high temperature resistance, corrosion resistance |
|
Power requirements |
220V/110V , 50HZ/60HZ |
PACKAGE:
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damaged part for you for free.
DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to
production season and order quantity.
