Louis@lithmachine.comLab Standardized Multi-functional Microwave Vertical Atmosphere Tube Furnace especially for Various Gas-solid Phase/Gas Phase Reaction
Summarize

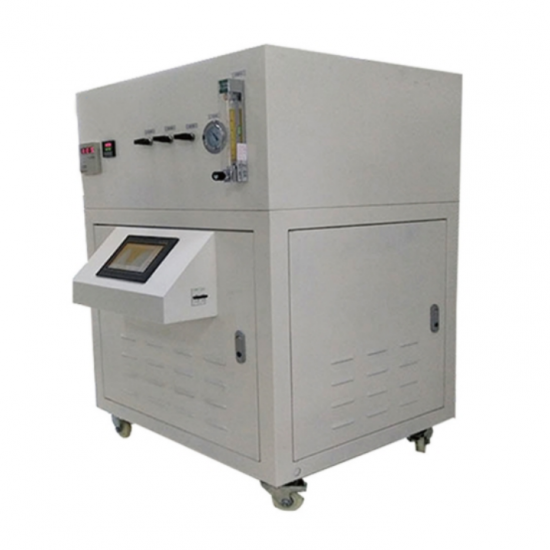

1200℃ microwave vertical tube furnace is a standardized multi-functional microwave vertical atmosphere tube furnace, which is suitable for synthesis, roasting, heat treatment and sintering technology research under various atmosphere conditions, especially for various gas-solid phase/gas phase reaction, synthesis reaction and decomposition reaction.
Main feature
1) Industrial brand microwave source, microwave output power stepless adjustable, to ensure continuous and stable long-term operation of equipment;
2) The time of gas replacement can be greatly saved by using pre-vacuuming method.
3) The material heating speed is fast, the uniformity is good, and the experimental efficiency is greatly improved;
4) Vertical structure, provide a variety of charging forms, more widely used.
Technical parameter
|
Model Parameter |
HY-LZG1512 |
HY-LZG3012 |
|
|
Voltage |
220±10V，50Hz |
220±10V，50Hz |
|
|
Microwave output power |
0.01~1.40kW, continuously adjustable (Panasonic) |
0.01~2.80kW, continuously adjustable (Panasonic) |
|
|
Heating space (diameter x length) |
φ40x130mm |
φ60x140mm |
|
|
Microwave frequency |
2.45GHz |
||
|
Operating temperature |
<1200℃ |
||
|
Temperature measurement method |
Thermocouple/infrared |
||
|
Static limit vacuum |
≤100Pa |
||
|
Atmosphere system |
Multi-channel atmosphere control pipeline, rapid pre-vacuuming, can be filled with oxidizing gas, inert gas, weak reduction gas, etc |
||
|
Control mode |
Programmable Logic Controller (Mitsubishi)+ Touch screen (Kunlun Mode) |
||
|
Control program |
Can set multi-stage process parameters, with data storage and export functions, a variety of control modes; One-button oven |
||
|
Anti-microwave leakage |
Microwave leakage level <1mW/cm2 |
||
|
Safety protection |
Furnace door shutting switch, door open and power off, re-power delay, over-temperature alarm |
||
|
Main body (L x W x H) |
About 700x550x900mm |
About 800x600x1000mm |
|
