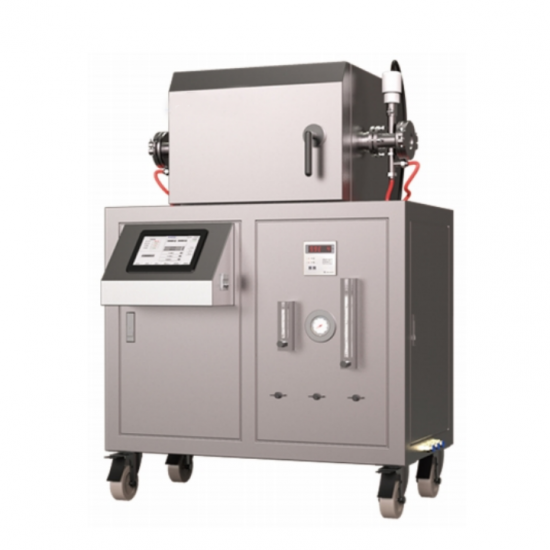

Louis@lithmachine.comLab 1600C Microwave Tube Furnace Equipped with Touch screen
Summarize
Microwave high temperature tube furnace is a standard multi-functional microwave high temperature tube experimental workstation, which is suitable for synthesis, roasting, heat treatment and sintering technology research under various atmosphere conditions, especially for various gas-solid phase/gas phase reaction, synthesis reaction and decomposition reaction.
Main feature
1) Industrial brand microwave source, microwave output power stepless adjustable, to ensure continuous and stable long-term operation of equipment;
2) Adopt quick connection flange, simple structure, easy operation;
3) Using the original insulation structure, no slag, no pollution; Durable;
4) Multi-functional application mode to meet a variety of experimental needs:
5) Open the door, power delay, professional microwave shielding technology to ensure safety.
Technical parameter
|
Model Parameter |
HY-ZG1516 |
HY-ZG3016 |
|
|
Voltage |
220±10V，50Hz |
220±10V，50Hz |
|
|
Microwave output power |
0.01~1.40kW, continuously adjustable (Panasonic) |
0.01~2.80kW, continuously adjustable (Panasonic) |
|
|
Heating space (diameter x length) |
φ40x130mm |
φ60x140mm |
|
|
Microwave frequency |
2.45GHz |
||
|
Operating temperature |
<1600℃ |
||
|
Temperature measurement method |
Thermocouple/infrared |
||
|
Static limit vacuum |
≤100Pa |
||
|
Atmosphere system |
Multi-channel atmosphere control pipeline, rapid pre-vacuuming, can be filled with oxidizing gas, inert gas, weak reduction gas, etc |
||
|
Control mode |
Programmable Logic Controller (Mitsubishi)+ Touch screen (Kunlun Mode) |
||
|
Control program |
Can set multi-stage process parameters, with data storage and export functions, a variety of control modes; One-button oven |
||
|
Anti-microwave leakage |
Microwave leakage level <1mW/cm2 |
||
|
Safety protection |
Furnace door shutting switch, door open and power off, re-power delay, over-temperature alarm |
||
|
Main body (L x W x H) |
About 530x430x380mm |
About 550x800x500mm |
|
Consumables and optional accessories
PACKAGE:
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damaged part for you for free.
DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to
production season and order quantity.
