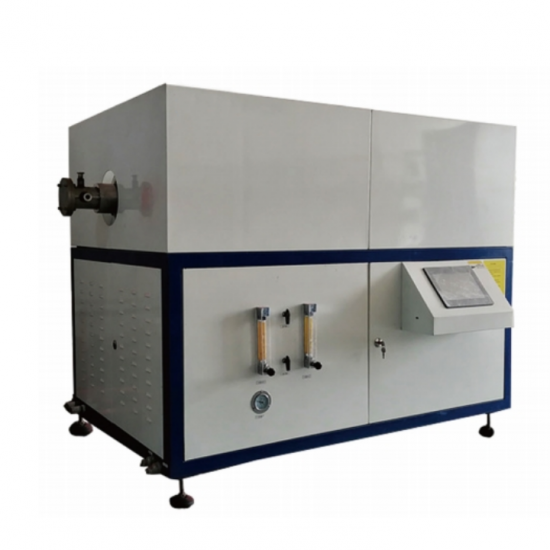

Louis@lithmachine.com1200 Microwave High-temperature Tube Furnace Experimental Workstation with Multiple Heating Zones
Summarize
Microwave multi-temperature zone tube furnace is a standardized microwave high-temperature tube experimental workstation with multiple heating zones, which is suitable for sintering, synthesis, roasting and CVD process experiments under various atmosphere conditions.
Main feature
1) Industrial brand microwave source to ensure continuous and stable long-term operation of equipment;
2) Touch screen operation, simple and convenient; Brand control system, stable and reliable:
3) Multi-point temperature control to meet different gradient control;
4) Multi-layer furnace structure technology, quickly reduce the surface temperature of the shell;
5) Open the door and power off, power restoration delay, professional microwave shielding technology to ensure safety.
Technical parameter
|
Model Parameter |
HY-ZGT6002 |
HY-ZGT8002 |
|
Voltage |
Three-phase, 380±10V, 50Hz |
380±10V, 50Hz |
|
Microwave output power |
0.01~5.60kw, continuously adjustable (Panasonic) |
0.01~8.40kw, continuously adjustable (Panasonic) |
|
Heating space (diameter x length) |
Φ60x600mm |
Φ80x800mm |
|
Microwave frequency |
2.45GHz |
|
|
Operating temperature |
<1200℃ |
|
|
Temperature measurement method |
Thermocouple/infrared |
|
|
Static limit vacuum |
≤100Pa |
|
|
Atmosphere system |
Multi-channel atmosphere control pipeline, rapid pre-vacuuming, can be filled with oxidizing gas, inert gas, weak reduction gas, etc |
|
|
Control mode |
Programmable Logic Controller (Mitsubishi)+ Touch screen (Kunlun Mode) |
|
|
Control program |
Can set multi-stage process parameters, with data storage and export functions, a variety of control modes; One-button oven |
|
|
Anti-microwave leakage |
Microwave leakage level <1mW/cm2 |
|
|
Safety protection |
Furnace door shutting switch, door open and power off, re-power delay, over-temperature alarm |
|
Consumables and optional accessories
PACKAGE:
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damaged part for you for free.
DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to
production season and order quantity.
