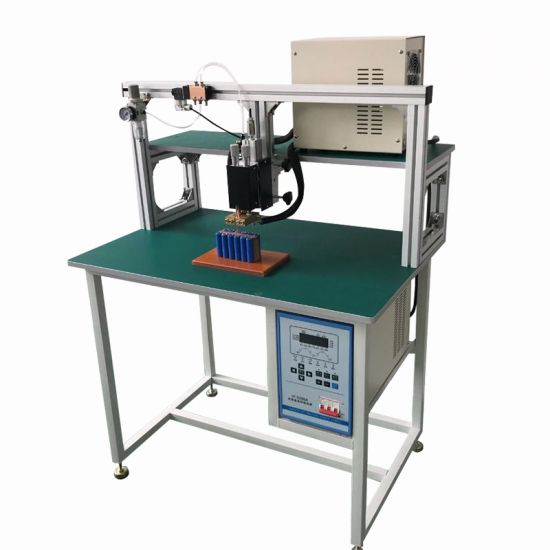

Inverter DC Spot Welding Machine Suitable for Pure Nickel Welding

Inverter DC Spot Welding Machine Suitable for Pure Nickel Welding

  • ItemNo :

    LITH-IP-5000A
  • MOQ :

    1
  • Color :

    optional
  • Port :

    Xiamen Port
  • Compliance:

    CE
  • Warranty:

    2 years
  • Delivery Time:

    5 days
  • Email :

    Louis@lithmachine.com
  • Product Details

Inverter DC Spot Welding Machine Suitable for Pure Nickel Welding



Functional features:

High frequency inverter control of 4kHz is conducive to high-speed and high-quality welding control.

The two-stage power on function is adopted to overcome the coating problem of welding workpiece and adapt to various process requirements.

It has the function of slow current rise and slow current drop, which is conducive to inhibiting the spatter phenomenon in welding

The switching of 8 kinds of welding specifications is conducive to the rapid transformation of welding parameters according to different welding requirements.

A variety of welding information and welding parameters are displayed in the blue light lcd20x4 line LCD, which is convenient for the confirmation of welding results.

It has the function of two-stage current monitoring and comparison, alarm for abnormal welding, compare the welding results with the parameters of the equipment, and judge whether it exceeds the set value, then judge whether the output is normal (go) or abnormal (GN) display and signal.


Main technical parameters:

Number Parameter item LITH-IP-5000A
1 Welding current 5000A (800A-5000A Adjustable)
2 Load duration rate 20%
3 Welding control mode Constant current welding
4 Inverter frequency (kHz) 4KHZ
5 No load voltage 10.8V
6 Slow rise and slow drop of current It has the function of current rising and dropping slowly
7 Welding specification 8 groups
8 Input voltage AC 380V±10% 50/60Hz    or 220V±10% 50/60Hz

(Note: You can choose with or without desk, suitable for pure nickel less than 0.2mm or 0.25mm)


Scope Range:




Spot Welding Machinie

Type

Product Name

Features


Link

Manual

Pneumatic Spot WeldinMachine

Welding Thickness:0.03 -0.25mm

Air Pressure Range:0.1 - 0.7 Mpa





https://www.lithmachine.com/desk-top-capacitive-discharge-spot-welder-for-battery-tab-and-cylindrical-battery-welding_p366.html

AC Plus Pneumatic Spot Welding Machine

Welding Thickness:0.03~0.2mm



https://www.lithmachine.com/ac-plus-pneumatic-spot-welding-machine-welder-for-cylindrical-battery-welding_p362.html

5000A/8000A Pneumatic Inverter DC Spot Welding Machine

Maximum thickness of parallel welding:0.03mm~0.5mm

Maximum Output Short Circuit Current:5000A  or 8000A



 https://www.lithmachine.com/inverter-resistance-welder-18650-power-battery-spot-welder-battery-spot-welding-machine_p442.html

DC Output Spot Welding Machine

Maximum thickness of parallel

welding:0.03mm~0.5mm



https://www.lithmachine.com/High-Precision-DC-Output-Spot-Welding-Machine-Tab-Welder_p364.html

Automatic

Automatc Single Side Spot WeldingMachine(Pneumatic/Electric)

Welding travel:400x500mm

Welding Speed:0.35s/point; 2800pcs / hour



https://www.lithmachine.com/automatic-single-side-battery-spot-welding-machine-welder-for-18650-cylindrical-battery-pack_p363.html

Automatic Single Side Rotary Welding Head Spot Welding Machine(Pneumatic/Electric)

The rotatable welding head can prevent the sticking of the needle. In addition, if it is a nickel strip with different fork directions, the rotating welding head is needed. Welding travel:400x500mm Welding Speed:0.35s/point; 2800pcs / hour



https://www.lithmachine.com/inverter-dc-single-side-automatic-spot-welding-machine-for-cylindrical-battery-pack-assembly_p402.html

Automatic Double Sides Spot Welding Machine (Pneumatic/Electric)

Welding travel:400x500mm Spot welding speed: 0.3s/point; 5000pcs/h



https://www.lithmachine.com/Automatic-18650-26650-32650-Cylindrical-Battery-Pack-Double-Sides-Spot-Welding-Machine-for-Battery-Assembly_p369.html











Related Machine





PACKAGE:
     1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
     2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
     3 Responsible for the damage during the shipping process, will change the damage part for you for free.

DELIVERY TIME:15-20 days after confirming order,detail delivery date should be decided according to production season and order quantity
