High Precision Sodium Ion Battery Automatic Electrode Winding Machine

High Precision Sodium Ion Battery Automatic Electrode Winding Machine

  • ItemNo :

    LITH-LPW-21/70-C
  • MOQ :

    1
  • Compliance:

    CE
  • Warranty:

    2 years
  • Delivery Time:

    5 days
  • Email :

    Louis@lithmachine.com
  • Product Details

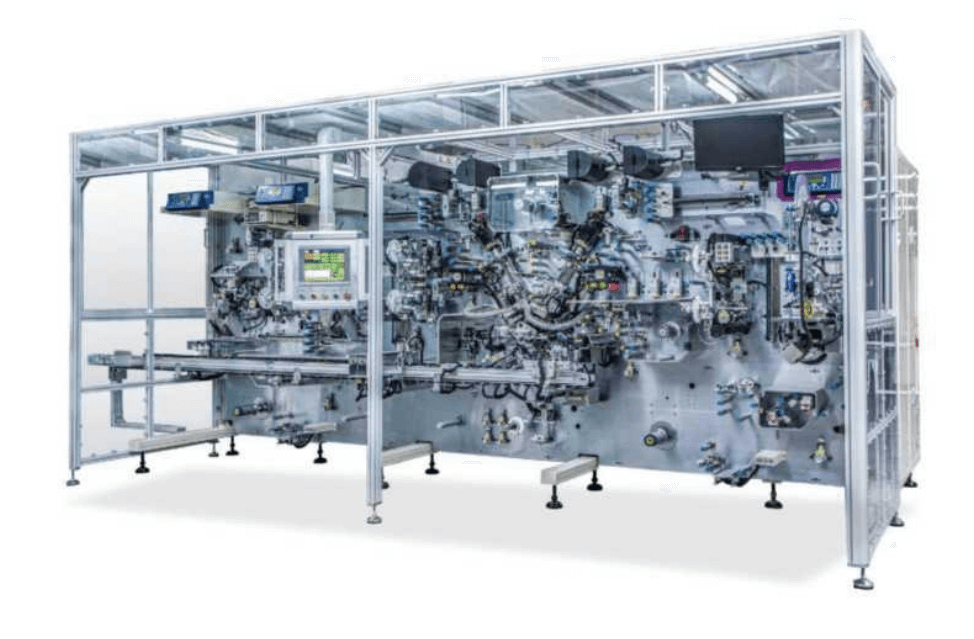

High Precision Sodium Ion Battery Automatic Electrode Winding Machine



Introduction:

This equipment is used for making cylindrical lithium ion battery cells. Manually fix the positive and negative electrode pieces, separator, positive and negative electrode tape protective tape, termination tape and other materials on their respective discharge shafts. The equipment will automatically unwind the materials, automatically correct the deviation and position, and complete the welding of positive and negative electrode lugs, application of protective tape, winding of electric core, application of termination glue and unloading to the conveyor belt. The electric core is completed at one time in the manufacturing process, so as to reduce human intervention and damage in the process of pole piece, and improve the assembly quality of electric core.


Features:

*adopt three station winding mechanism to improve production efficiency

*adopt EPC and snake shaped automatic TQ bias system

*adopt sectional tension automatic control system

*Ultrasonic welding system is adopted, with high welding accuracy of tab

*flat adhesive is adopted, and the front and back faces are accurate

*with automatic rewinding mechanism of pole piece and diaphragm

*with tab glue wrapping, embossing and gluing system (including machine identification function)

* it has dust removal, iron removal and static electricity removal systems

*it has the function of center shaping, which is convenient to connect the conveyor line

*use hit pot ^ road test to eliminate nonconforming products

*bad pole pieces can be eliminated in a single roll

*adopt PLC control system

*human-machine interface parameter visualization

*real time monitoring of abnormalities and automatic alarm


Specification:

No.

Item

Parameter



1

Model

LPW-14/60-C



LPW-18/65-C



2

Electrode Width

10-60



40-70

mm

3

Electrode Length

120-500



350-2000

mm

4

Separator Width

10-62



40-70

mm

5

Cell Diameter

7-14



14-32

mm

6

Winding Needle Diameter

2-4



3-4

mm

7

Terminal Tape Width

10-60



10-60

mm

8

Winding Precision

±0.3



±0.3

mm

9

Speed

30



35

PPM

10

Opening Rate



6%





11

Weight



7500



kg

12

Size

5500L*2300W*2300 H

mm











PACKAGE:

  1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

  2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

  3 Responsible for the damage during the shipping process, will change the damaged part for you for free.



DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to

production season and order quantity.
