High Precision 5V20mA Battery Testing Equipment Analyzer for Coin Cell/ Cylindrical Cell/ Pouch Cell Testing
Introduction:
LITH-5V20mA is an eight-channel battery analyzer to analyze small coin cell/ cylindrical cell/ pouch cell from 5 uA to 20 mA, up to 5V. Each channel of the analyzer has independent constant-current and constant-voltage source, which can be programmed and controlled by computer software. This system provides most applications in battery testing fields such as electrode materials research, battery performance test, small-scale battery formation, capability grading, battery pack testing and etc.
Specifications:
Projectindex Parameterindex | ||||
Input Power | AC 220V ±10% / 50Hz | |||
resolution | AD:16bit;DA:16bit | |||
Input Resistance | ≥10G Ω | |||
Input Power | 25W | |||
Channel Features |
Constant Current Source and Constant Voltage Source with Independent pairs of Closed-loop Structure |
|||
Channel Control Mode | Independent Control | |||
Voltage |
Constant Voltage Range |
25mV~5V | ||
Accuracy | ± 0.05% of FS | |||
Stability | ± 0.1% of FS | |||
Current |
Per Channel Current Range |
Range1:5uA~1mA;Range2:1mA~10mA; Range 3:10mA-20mA | ||
Accuracy | ± 0.05% of FS | |||
CV cut-off current | Range1:2uA;Range2:20uA; Range 3:40uA | |||
Stability | ±0.1% of FS | |||
Power |
Per Channel Output Power |
0.1W | ||
Stability | ± 0.1% of FS | |||
Time |
Current Response Time |
The Current gets to 10mA Hardware Response Time is 1ms | ||
Step Time Range |
0.1s≤Single Step Time Range≤365*24 h, Time Form Support 00:00:00(h、min、s) |
|||
Data Recording | Record Condition | Time△t:100ms | ||
Voltage△U:10mV | ||||
Current△I: 0.02mA | ||||
Record Frequency | 10Hz | |||
Charge | Charge Mode |
Constant Current Charge、Constant Voltage Charge、 CC-CV Charge 、CP-Charge |
||
End Condition | Voltage、Current、Relative Time、Capacity、-△V | |||
Discharge | Discharge Mode | Constant Current Discharge CP-D CR-D | ||
End Condition | Current、Current、Relative Time、Capacity、-△V | |||
Pulse Model | Charge | Constant Current、Constant Power | ||
Discharge | Constant Current、Constant Power | |||
Min Pulse Width | 500ms | |||
Pulse Number | Single Pulse Step Support 32 different Pulse | |||
Charge r To Discharge | One Pulse Step Can Support Continuous Charge And Discharge Change | |||
Projectindex Parameterindex | ||||
Stop Condition | Voltage、 Relative Time | |||
DCIR Testing | Support Custom Access Point And Count The DCR | |||
Cycle | Loop Measure Range | 1~65535 times | ||
Max Steps Per Loop | 254 | |||
Nested Loop | Nested loop Function,Max Support 3 Layers | |||
Protection | Software Protection | Power-down DataProtection | ||
SettingProtectionCondition,SettingParameter:Low Voltagelimit、Upper Voltage limit、Low Current limit、Upper Current limit、Delay Time |
||||
Voltage and Current Testing Sample | 4-wire connecting | |||
Noise | <85dB | |||
Data Management | MySQL Database | |||
Communication Means | TCP/IP Protocol | |||
Data Output | EXCEL、TXT | |||
Communication Interface | Ethernet Port | |||
Main Channels | 8 | |||
Dimension | 480x310x48mm |
Projectindex Parameterindex | |||
Working Temperature Range | 0℃~40℃ | ||
Storage Temperature Range | -10℃~45℃ | ||
Working Environment Relative Humidity Range |
≤70% RH | ||
Storage Environment Relative Humidity Range |
≤80% RH | ||

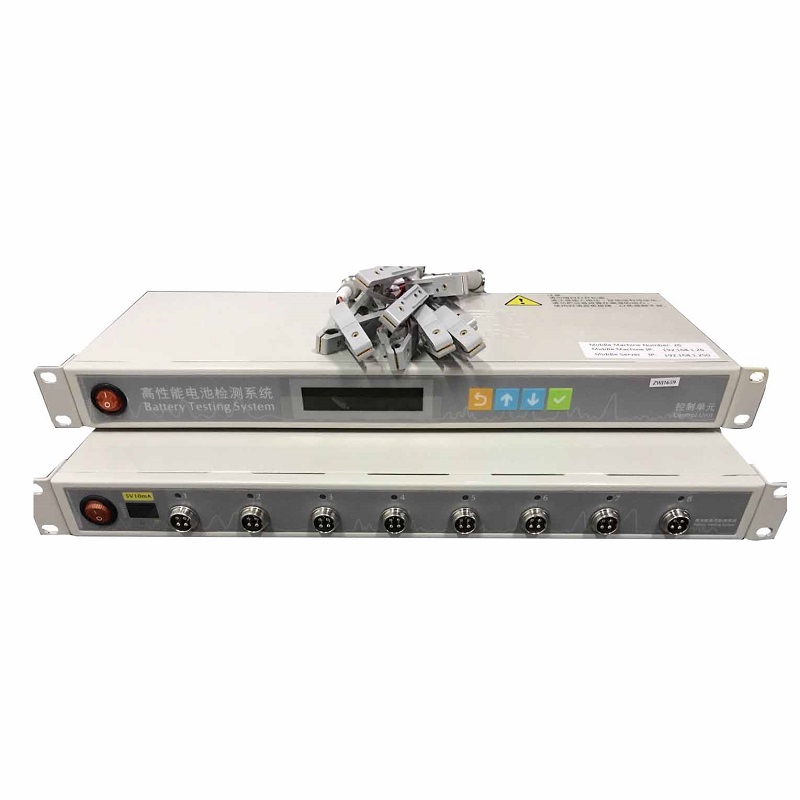

Equipment Picture |
|
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damaged part for you for free.
DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to
production season and order quantity.
