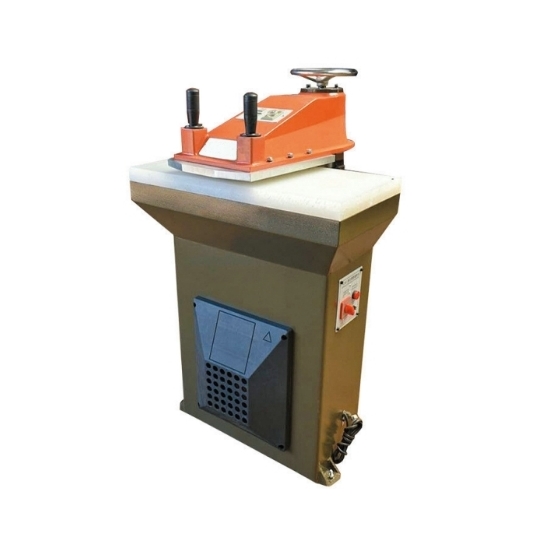

Louis@lithmachine.comFabric/Textiles Hydraulic Clicker Clicking Press Machine
Uses and features
Hydraulic swing arm cutting machine is suitable for using small knife die to punch and cut non-metal materials such as ticket holder components, small toys, decorative parts, leather bag accessories
1. With swing arm rotation freely, easy operation and material selection.
2. The excellent seamless steel pipe is used to process the column, and the upper and lower holes are supported to ensure the flexible rotation of the upper strike plate and good reliability.
3. Use both hands to operate the switch to ensure the safety of the operator.
4. The position of the swing arm is adjusted by the hand wheel at the upper end of the machine, and the blanking stroke is adjusted by the time timer. In this way, the cutting position can be easily obtained, which improves the work efficiency and prolongs the service life of the tool die and the backing plate.
5. Use flywheel inertial energy storage to save energy.
Technical parameters
|
Model number |
LITH-JYF-2C/16 |
|
Maximum cutting force |
120KN |
|
Cutting speed |
0.065m/s |
|
Cutting adjustment range |
0-60mm |
|
Distance between upper and lower plate |
50-120mm |
|
Upper plate size |
350*450mm |
|
Lower work surface size |
900*400mm |
|
Motor power |
0.75KW |
|
External dimension |
1000*780*900mm |
|
Machine weight |
400KG |
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damaged part for you for free.
DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to
production season and order quantity.
