Features

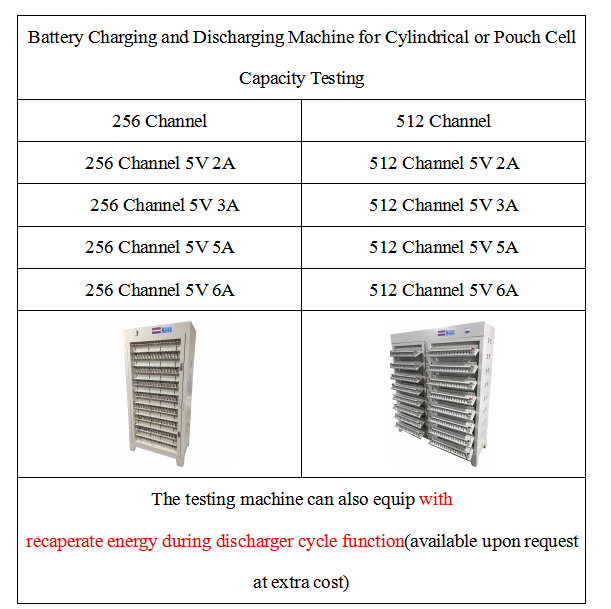

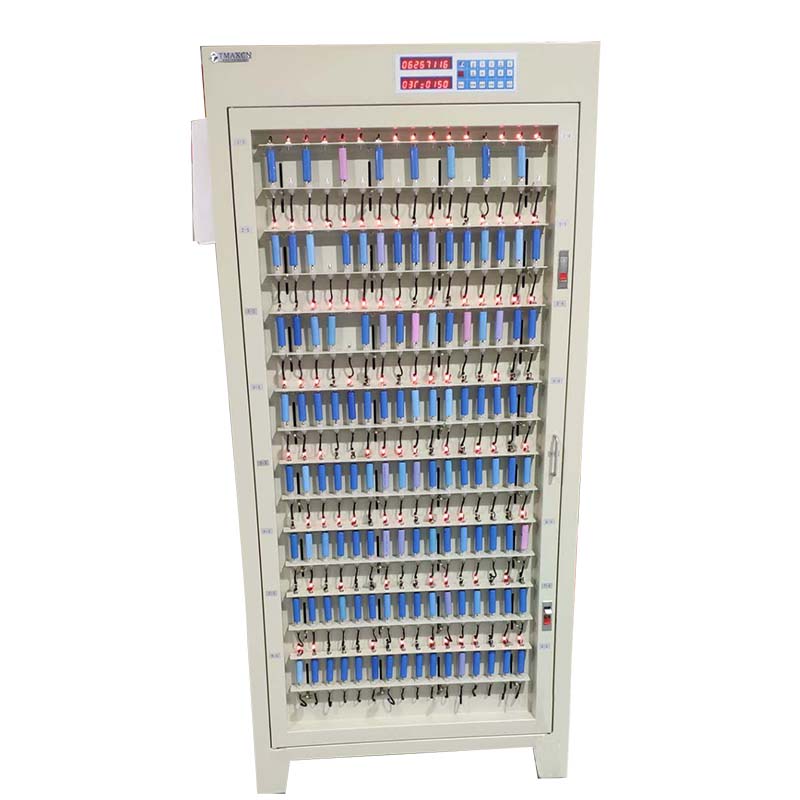

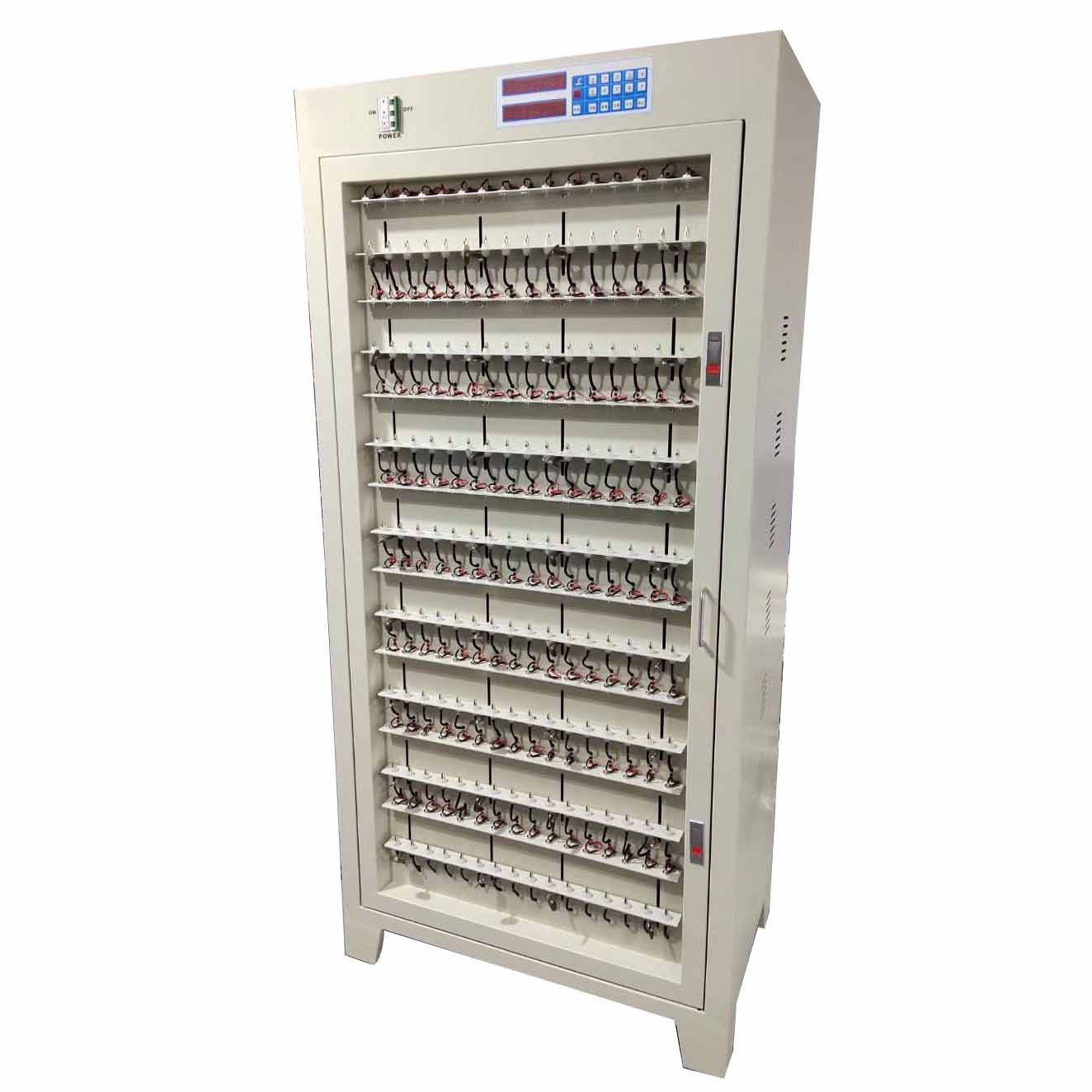

5V6A 256 Channel Battery Sorter Equipment is mainly composed of the computer system, communication interface, control software, and battery detecting cabinet. Battery detecting cabinet comprises a fixture and placed the plate body of the fixture, charging, constant current and constant voltage source discharge constant current source, storage control circuit, current sampling circuit, voltage sampling circuit, the main control CPU, data memory, microcontroller programming and control panel. The Battery Charging and Discharging Machine can be used for Cylindrical or Pouch Cell Capacity Testing.
Specifications
|
Number of device channels
|
256 (Single CPU control)
|
Constant current range
|
(0.05 ~ 2A/3A/5A/6A), resolution 1mA
|
|
Accuracy of current measurement
|
±0.1%FS
|
Sampling current accuracy
|
±0.1%FS |
|
Voltage measurement range
|
0 ~ 5V, resolution 1mV |
Accuracy of voltage measurement
|
±0.1%FS |
|
Charging and discharging voltage range
|
Charging: 0 ~ 4.5V, discharging: 4.5 ~ 2V
|
Constant voltage setting range
|
3 ~4.5V
|
|
Accuracy of constant pressure setting
|
±0.1%FS |
Time range
|
0-30000 min / step, accuracy: ± 0.1%
|
|
Heat dissipation mode
|
Cold wind
|
Battery Clamp
|
Cylinder clamp, polymer clamp
|
|
External size
|
1600mm (W) × 555mm (L) × 1835mm (H)
|
Power consumption at full load
|
≤19KW |
|
Working power supply
|
Three phase four wire system,
AC380V ± 150%, 50Hz |
Work loop source
|
Temperature: 0 ~ 40 ℃,
relative temperature ≤ 85% (no water condensation) |
|
Minimum configuration of computer system
|
1. Dual core CPU or above,
2. 4G or above memory, 3. 500GB or above hard disk space, 4. EGA / VGA color display, one CD-ROM, one mouse 5. Windows XP or above operating system, one 6. RS232 serial communication port available. 7.The computer system shall be self configured by the user, and the number of the computer system shall be determined according to the actual needs. |
General equipment configuration and standards
|
1. Appearance color of equipment,
Case: silver white, Cabinet: silver white. 2. Attach the Chinese operation manual and software U disk. |
