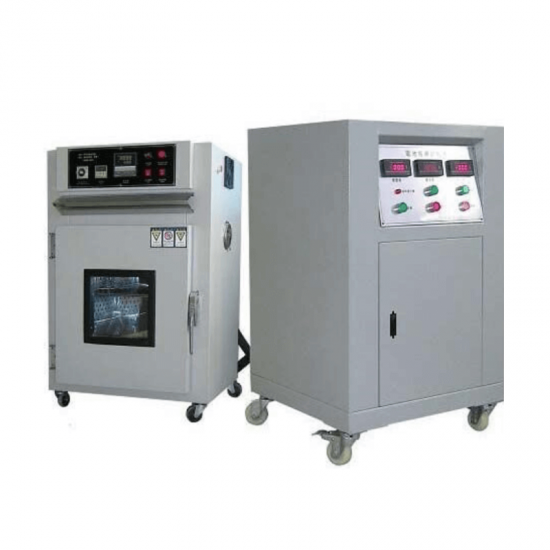

Louis@lithmachine.comBattery High Current 2000A External Short Circuit Tester For Battery Safety Testing Equipment
Short Circuit Test system designed for testing rechargeable batteries & packs under short circuit conditions with high current.
For more information about Explosion-Proof Test Chamber, please contact us!
SPECIFICATIONS
|
Type |
LITH-BE-1500A |
LITH-BE-2000A |
LITH-BE-5000A |
|
Short circuit current |
1500A |
1000A、2000A |
2000A、5000A |
|
Temperature explosion - proof box |
0~100°C can be choose |
||
|
DC Response Time |
≤5us |
||
|
Device resistance |
≤5mOhm |
||
|
Remote distance |
7m No solid obstacle |
||
|
Short circuit time |
1~9999S or 1M~99H59M can be set |
||
|
Dimension |
W650*D750*H950mm |
||
|
Explosion-proof box size |
W800*D1000*H1000mm,thickness:8mm |
||
|
Power supply |
AC220V 50HZ |
||
|
Power |
1.0KW |
||
|
Weight |
About330Kg |
||
PACKAGE:
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damaged part for you for free.
DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to
production season and order quantity.
