Automatic Double Side Battery Tab Spot Welding Machine for Electric Scooters Battery Pack Automatic Double Side Battery Tab Spot Welding Machine for Electric Scooters Battery Pack Automatic Double Side Battery Tab Spot Welding Machine for Electric Scooters Battery Pack

Automatic Double Side Battery Tab Spot Welding Machine for Electric Scooters Battery Pack

  • ItemNo :

    LITH-DS-01
  • MOQ :

    1
  • Color :

    optional
  • Port :

    Xiamen Port
  • Compliance:

    CE
  • Warranty:

    2 years
  • Delivery Time:

    5 days
  • Email :

    Louis@lithmachine.com
  • Product Details

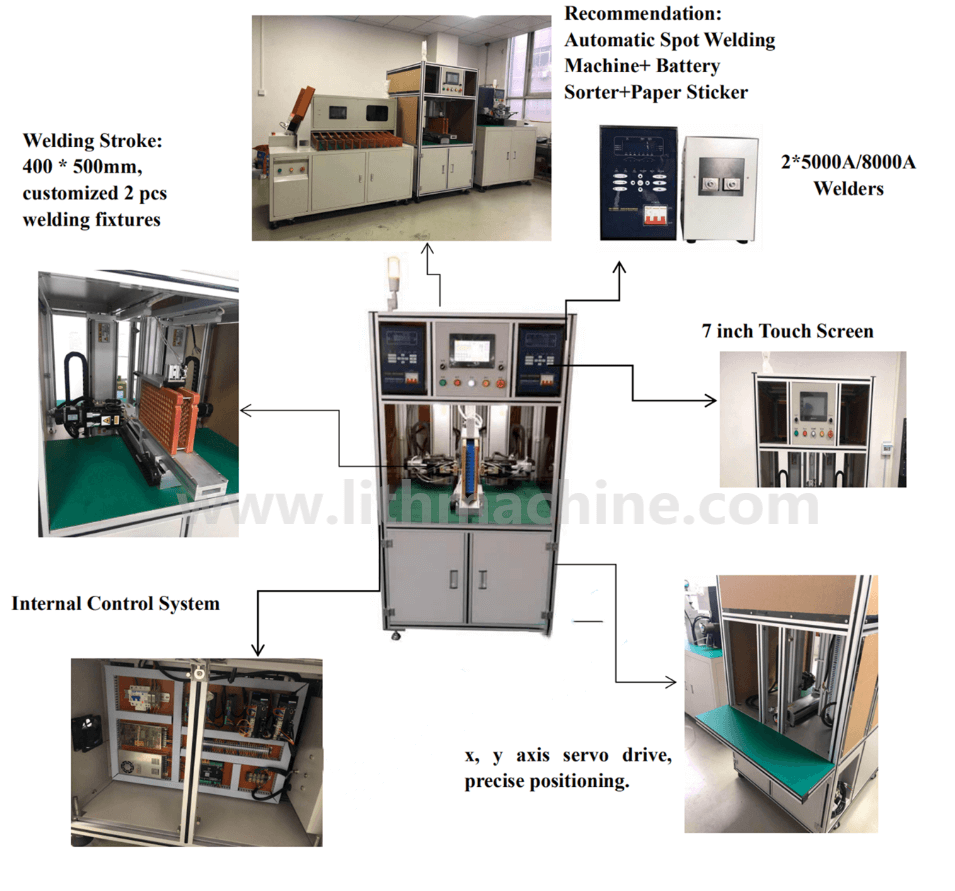

Automatic Double Side Battery Tab Spot Welding Machine for Electric Scooters Battery Pack

Product Application

The Automatic Battery Pack Spot Welder is a general platform of automatic processing technology based on CNC, suitable battery pack spot welding and assembly in the factory. Compared with manual spot welding machine, the efficiency and accuracy of welding have been greatly improved. Humanized design makes the operation and debugging very easy and convenient. Design of components built-in makes appearance more concise. We can also offer CNC welding machine. Welcome your inquiry to us for more details.



Advantages

1) Induce load voltage, control voltage by feedback, and realize high quality welding.

2) Preheat, Main Heat's power mode, preheating before welding, to ensure stable welding quality.

3) Keep the continuity of energy density, shorten the welding time, and reduce the deformation and color of base metal. (Welding time controlled in microseconds, continuous output mode)

4) Easy to change from low current to high current, suitable for precision welding.

5) The upper and lower limits of current can be set to simply judge whether the welding quality is good or not, which is suitable for welding automation platform.

6) The welding current rises with the time of electrification to ensure the welding effect.



Features

1. Support breakpoint start, automatic start, and manual start.
2. Cold solder joint and sealing off alarm.
3. Easy program, support matrix, array and point program, can store 99 group parameters.
4. Welding needle abrasion alarm.
5. Build-in welding current monitor, can display real time welding current.
6. Design for NB, Power Tool, Gardening Tool, High Power, Energy Storage battery, Electric Motor Car Battery Pack, and other lithium battery packs spot welding.
7. High productivity: 0.35s/spot
8. Can be matched with the production line of lithium battery group.
9. Automatic battery pack spot welder adopts traditional pneumatic single point dynamic, ensure the welding accuracy, and improve the welding appearance quality and reliability.
10. Can store dozens process of different battery packs product, switching products without re-setting parameters.
11. Can match a variety brand of spot welders.



Application Area

With the corresponding fixture, the spot welding machine can weld 18650, 26650, 32650 and other cylindrical batteries, can also be customized for a variety of cylindrical battery, square battery, button battery and etc.



Operation

1. Setting the parameters of welding on the touch screen. (The same product only need to be set once)
2. Put the fixture with the battery pack on the quick clamping position.
3. Press the start button, the machine automatically complete all welding actions.
4. The welder sound to prompt operator replacement of new fixture (battery pack).



Specification

Welding Head Number

2

Travel

Y: 500mm; Z: 400mm

Welding Spped

0.35s/spot, 5500pcs/h

Welder Power Suppler

5000A Inverter Spot Welder

Max Motor Speed

1000mm/s

Max Battery Number

200-600 pcs cells

Operate System

Embedded system

User Interface

Touch screen

Drive Mode

Step motor and precision guide rail

Power Supply

220V/50Hz(machine); 3 phase, 380V/50Hz(Welder)

Air Pressure

0.3-0.6 MPa

Machine Size

900L*1200W*1600Hmm

Machine Weight

350kg

Repeated Positioning Accuracy

±0.02mm

Number of Loaded Cores

Y: 26 pcs

Z: 18 pcs (adjustable)


Power Supply

Compressed Air


Welder Position

Cable Connection


Spot Welding Machine

Type

Product Name

Features


Link

Manual

Pneumatic Spot WeldinMachine

Welding Thickness:0.03 -0.25mm

Air Pressure Range:0.1 - 0.7 Mpa





https://www.lithmachine.com/desk-top-capacitive-discharge-spot-welder-for-battery-tab-and-cylindrical-battery-welding_p366.html

AC Plus Pneumatic Spot Welding Machine

Welding Thickness:0.03~0.2mm



https://www.lithmachine.com/ac-plus-pneumatic-spot-welding-machine-welder-for-cylindrical-battery-welding_p362.html

5000A/8000A Pneumatic Inverter DC Spot Welding Machine

Maximum thickness of parallel welding:0.03mm~0.5mm

Maximum Output Short Circuit Current:5000A  or 8000A



 https://www.lithmachine.com/inverter-resistance-welder-18650-power-battery-spot-welder-battery-spot-welding-machine_p442.html

DC Output Spot Welding Machine

Maximum thickness of parallel

welding:0.03mm~0.5mm



https://www.lithmachine.com/High-Precision-DC-Output-Spot-Welding-Machine-Tab-Welder_p364.html

Automatic

Automatc Single Side Spot WeldingMachine(Pneumatic/Electric)

Welding travel:400x500mm

Welding Speed:0.35s/point; 2800pcs / hour



https://www.lithmachine.com/automatic-single-side-battery-spot-welding-machine-welder-for-18650-cylindrical-battery-pack_p363.html

Automatic Single Side Rotary Welding Head Spot Welding Machine(Pneumatic/Electric)

The rotatable welding head can prevent the sticking of the needle. In addition, if it is a nickel strip with different fork directions, the rotating welding head is needed. Welding travel:400x500mm Welding Speed:0.35s/point; 2800pcs / hour



https://www.lithmachine.com/inverter-dc-single-side-automatic-spot-welding-machine-for-cylindrical-battery-pack-assembly_p402.html

Automatic Double Sides Spot Welding Machine (Pneumatic/Electric)

Welding travel:400x500mm Spot welding speed: 0.3s/point; 5000pcs/h



https://www.lithmachine.com/Automatic-18650-26650-32650-Cylindrical-Battery-Pack-Double-Sides-Spot-Welding-Machine-for-Battery-Assembly_p369.html






Battery Tab Welder

CNC Spot Welding Machine


     Double sides spot welder




               Automatic spot welder





Related Machine






PACKAGE:

     1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

     2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

     3 Responsible for the damage during the shipping process, will change the damage part for you for free.



DELIVERY TIME:15-20 days after confirming order,detail delivery date should be decided according to production season and order quantity
