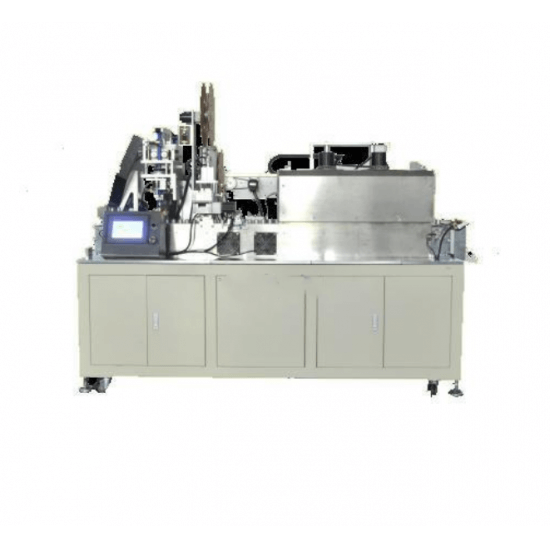

32650 Battery PVC Heat Shrinking Machine

FEATURE

The cylinder battery laminating machine is a kind of automatic equipment which is used for laminating of cylinder battery, punching and placing insulating gasket and heat shrinkable standard. This equipment can pack about 3300 electric cores per hour, and the structure design is simple and generous, and the performance is stable. In the market, up to now, it is one of the most cost-effective integrated standard equipment

Technological process

The parameter setting is completed through the touch screen, and the following functions are automatically completed by PLC: manual loading of battery core→ feeding by motor + cylinder → battery delivery by chain → battery core correction + servo labeling → laminating surface pad → correction again → spinning feeding + tunnel furnace heat shrinking → the first turning of air cylinder → loading by belt running → the second turning of air cylinder (feeding groove of finished battery core) → feeding and discharging groove; equipment allocation Sound light alarm is set.

Operation parameters can be set according to the actual requirements

Structure

1) The structure of the equipment is compact and reasonable, the appearance is beautiful, and the occupied space is small.

2) The equipment is easy to operate, and workers can easily master it without professional training.

3) The equipment is controlled by PLC, which is responsible for battery feeding, labeling, laminating surface pad, heat shrinkable insulation skin, easy to learn, high efficiency, labor cost saving, and good product performance.

4) The equipment and materials are made of high-quality thick cold-rolled sheet metal and aluminum profile frame.

5) The equipment is equipped with universal casters, which makes it easy to move and handle the equipment.

SPECIFICATION

Power Supply

AC 220V±10%/50Hz, Power：≤5KW

Working air source

0.5~0.6Mpa

Suitable for

32650 etc cylindrical cell

Productivity ≥ 55PPM

Qualified rate

≥ 98%

Weight

600kg

Size

2000（L）×900（W）×1700（H）mm

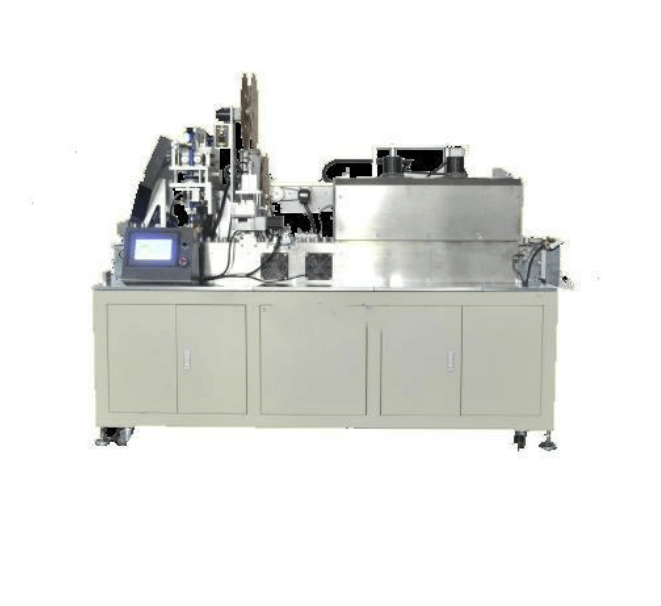

Battery PVC Heat Shrinking Machine

1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damaged part for you for free.

DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to

production season and order quantity.

HotTags : Shrinking Machine Heat Shrinking Machine 32650 Battery PVC Heat Shrinking Machine

Power Supply	AC 220V±10%/50Hz, Power：≤5KW
Working air source	0.5~0.6Mpa
Suitable for	32650 etc cylindrical cell Productivity ≥ 55PPM
Qualified rate	≥ 98%
Weight	600kg
Size	2000（L）×900（W）×1700（H）mm
