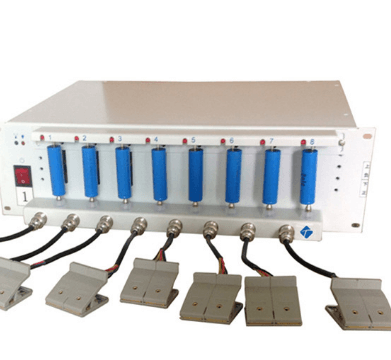

18650 Cell 5V6A 8 Channel Battery Tester Equipment Battery Capacity Testing Machine
Battery tester is mainly used to detect current, voltage, capacity, internal resistance, temperature, battery cycle life, and gives the graph. Battery tester has many channels to choose from. It can start at a single point, control at a single point, and measure different types of batteries (nickel-hydrogen, nickel-cadmium, lithium-ion, etc.).
Specific test functions include: battery voltage, load voltage (voltage difference), internal resistance, short-circuit protection time, short-circuit protection recovery function, over-discharge current, charging function, identification resistance (R1, R2), code reading, capacity test (including charge and discharge test).
SPECIFICATION:
Model
5V6A Battery Tester
Electricity requirement
110V AC or 220V AC
Power Consumption
384W
Current
Range: 12mA – 6000mA
Accuracy: ±(0.05% of reading + 0.1% of range)
Voltage
Range: 10mv-5v for charging, 2.5v-5v for discharging
Accuracy: ±(0.05% of reading + 0.1% of range)
Max. measurement
cycles
1-65535 cycles
Channels
Eight independent programmable channels
Each channel can set different working modes and functions independently
Programs &
Software
1.1 The software is included to set various working modes for
measuring capacity and life cycle for all types of rechargeable batteries
1.2 Working modes Include constant current discharge, constant current charge,
constant voltage charge, rest, cycles, etc.
1.3 Limited threshold conditions include voltage, current, time, capacity,
negative voltage slope, etc.
1.4 With real-time monitoring windows and integrated graph/data windows,
the testing process can be observed more directly and efficiently
1.5 During the test, the software will provide instructions and warnings for assistance
Test Reports and
Curves for analysis
2.1 Different types of curves can be created by software base on user definition.
(Voltage-time curve, current-time curve, capacity-voltage curve, loops
times-charge/discharge capacity curve, loops times charge/ discharge efficiency curve, etc)
2.2 Data reports are created by software.
User can easily compare the performance of the batteries tested in channels both visually
and statistically
Protection and
Auto-recover
If power failure occurs during testing, the system will shutdown all operating channels.
Once power is recovered, the system will automatically resume those stopped channels
and ensure that the test is normally conducted, so that no cases will lose any data.
Battery Holders
8 alligator clips with cable for universal connecting
8 spring load holders with adjustable length for measuring cylinder battery upto 70mm(H)
8 Polymer battery tester clamps for pouch cell testing
Warranty
One Year limited warranty with lifetime support
Application Notes
3.1 New buyers must buy the software-installed laptop to avoid trouble from installation.
If you like to run multiple battery analyzers on one Laptop,
you can just buy multiple analyzers with one laptop which is offered at a discounted price.
3.2 Customer can easily combine up to 20 battery analyzers by using normal Ethernet cable
connector via one computer.
3.3 You may order movable rack to organize the battery analyzers
Product Dimensions
485mm(L) * 508mm(W) *263mm(H)
Net Weight
11.5 kg (26 lbs)
PACKAGE:
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damaged part for you for free.
DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to
production season and order quantity.
