Louis@lithmachine.com100V 120A 18650 Battery Pack Comprehensive Tester for Lithium Battery Pack Assembly

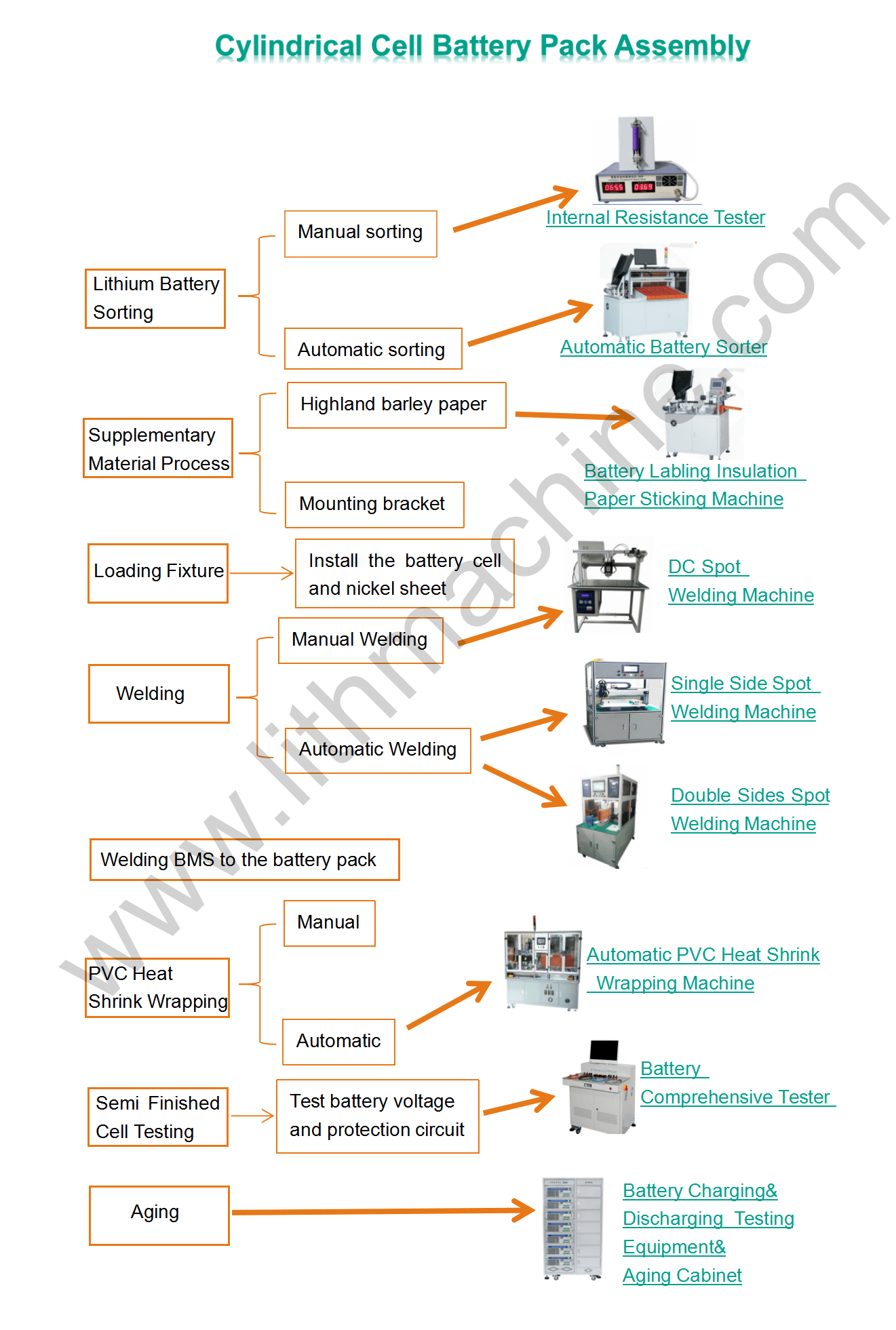

1.Scope of application
It is applied to the functional verification test of semi-finished products and finished products in the production process of power battery packs such as automotive electronics, aerospace, ships, solar energy storage, electric bicycles, electric motorcycles, backup power batteries and communication power supplies, as well as the test of scientific research laboratories.
2.Environmental requirements and technical parameters of equipment
2.1 power supply: AC voltage 220V ± 10%, frequency 50Hz ± 10%;
2.2 ambient temperature: 10 ~ 45 ℃;
2.3 the environment is free from strong vibration, corrosive gas and flammable and explosive gas.
3.Function introduction
|
Model |
BTS100-20-120 |
|
purpose |
Used for testing semi-finished products and finished products of battery packs below 100V |
|
basic function |
Open circuit voltage test |
|
AC internal resistance test |
|
|
ID Resistance test |
|
|
NTC Resistance test |
|
|
Charging performance test |
Battery PACK continuous charging function to verify whether the charging is normal |
|
Battery PACK charging overcurrent protection function test |
|
|
Discharge performance test |
Battery PACK Continuous load capacity, continuous discharge, check voltage drop |
|
Battery PACK Discharge overcurrent protection function test |
|
|
Short circuit protection test |
Test the battery positive and negative short circuit battery cut-off protection time (subtle level) |
|
Equipment protection function |
Software protection function: power failure data protection |
|
Hardware protection: power failure protection, short circuit protection, battery reverse connection and wrong connection protection |
Equipment parameter description
|
Test class |
Test items |
Measuring range |
Resolving power |
|
Open circuit voltage |
Open circuit voltage 1 |
10-100V |
±2mV |
|
Open circuit voltage 2 |
10-100V |
±2mV |
|
|
Internal impedance |
AC internal resistance test |
0-1000mΩ |
±1mΩ |
|
Discharge test |
Starting voltage |
0-100V |
±2mV |
|
End voltage |
0-100V |
±2mV |
|
|
discharge current |
0.1-60A |
±1mA |
|
|
Discharge time |
0-60S |
±1mS |
|
|
Discharge overcurrent test |
Over discharge current |
4-120A |
±1mA |
|
overcurrent delay |
0-20S |
±1mS |
|
|
Short circuit protection |
Short circuit protection delay |
0-9999uS |
±1uS |
|
Charging test |
Starting voltage |
10-100V |
±2mV |
|
End voltage |
10-100V |
±2mV |
|
|
Charging current |
0.1A-20A |
±1mA |
|
|
Charging time |
0-60S |
±1mS |
|
|
Charging protection test |
Charging overcurrent |
4-20A |
±1mA |
|
Charging delay |
0-20S |
±0.1mS |
|
|
Resistance R1/R2 |
NTC、ID |
0-1000KΩ |
±0.1KΩ |
|
Sustainable output power |
2KW |
||
|
Sustainable load power |
6KW |
||
|
Online mode |
serial communication （RS232，It can be used online by multiple computers） |
||
|
Test data |
The generated data table is automatically saved and can be exported to excel |
||
|
Barcode management |
Support bar code startup and binding test data |
||
|
Free software upgrade service |
Upgrade for free for life until the hardware is incompatible |
||
|
Heat dissipation |
Rely on ventilation system and forced air cooling |
||
|
Chassis size |
1000*700*1300mm（W*D*H ） |
|
Weight |
140KG |
|
Channel |
1 |
|
Equipment accessories |
Computer, test pen line, user manual, upper computer software, etc |
