Vacuum Drying System

Vacuum Drying System

  • Product Details


Vacuum Drying System



Functional overview
With forced ventilation function,adjustable air separating panels provied in the oven,and the temperature at each part is distributed evevly.

Functional characteristics
1.With forced ventilation function,adjustable air separating panels provied in the oven,and the temperature at each part is distributed evevly.
2.Equipment temperature is self-controlled.Adjust the upper limit of overtemperature protection to provide the second over temperature protection for the drying system.
3.The whole machine has compact structure,stable performance,small operation noise and is easy to clean.
4.Air duct is safe and reliable.Adopt high-quality bellows for connection,Electromagnetic components automatically switch and control,with simple operation and high production efficiency.
5.Adopt the imported PLC.Touch screen displays operation convenieniently and quickly.
6.A lot of hot air circulates in the oven,with high heat efficiency and energy saving.
7.Adopt unique radiation heating mode,so that the temperature distribution is even and stable in the oven, and the dry goods is heated sufficiently and evenly.
8.The process paramters of the device are recorded in data memory,and can be output in the form of Technical Parameters via USB or RS232 port.

Technical parameters

Power source

AC380V/50HZ

Temperature increase speed

3~5℃/min(full loaded)

Constant temperature range

±2℃

The internal temperature difference

≤2℃

Max.temperature of sealing ring can withstand

250℃,1000h

Temperature overshoot

<3℃

Line leakage rate

<1.0*10-7Pa m3/s

Overall dimensions(L*W*H)

1300*1350*2000mm












PACKAGE:

  1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

  2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

  3 Responsible for the damage during the shipping process, will change the damaged part for you for free.



DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to

production season and order quantity.




HotTags : Threaded Cylindrical Supercapacitor Cell Feeding Machine Feeding Machine Supercapacitor Cell Feeding Machine

Related Products

Film Coating Machine

Supercapacitor Roll to Roll Film Coating Machine

Supercapacitor Machine

Automatic Roll-to-Sheet Cutting Machine for Supercapacitor

Slitting Machine

Semi-automatic Slitting Machine With Different Model Cutter Blade

Electrolyte Filling Pump

Single Head Electrolyte Filling Pump System Used For Supercapacitor

vacuum mixer machine

5 Liter Tri-Shaft Planetary Vacuum Mixer Machine with Vacuum Pump and Water chiller

tab Ultrasonic Welder

1500w Bench-top Ultrasonic Spot Welding Machine

Electric press Machine

100-400mm Width Electric Hot Roller Press Machine with Variable Speed

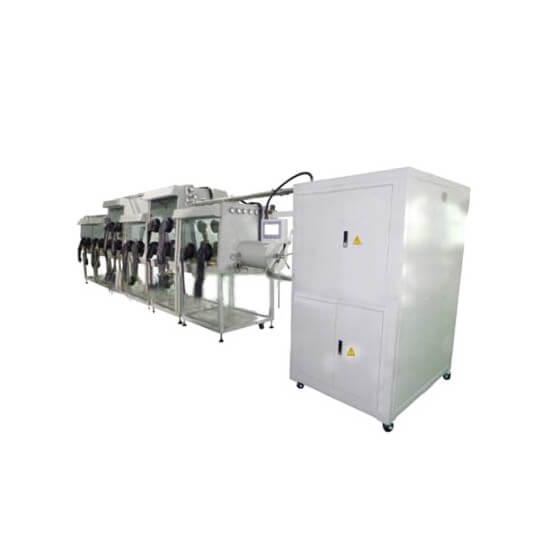

Vacuum Glove Box
