Split Type Test Cell for Testing 18650 Batteries for Cylindrical Cell Battery

Split Type Test Cell for Testing 18650 Batteries for Cylindrical Cell Battery

  • ItemNo :

    EQ-SC-18650

  • MOQ :

    1

  • Compliance:

    CE Certified

  • Warranty:

    2 years

  • Delivery Time:

    5 days

  • Email :

    Louis@lithmachine.com
  • Product Details

Split Type Test Cell for Testing 18650 Batteries for Cylindrical Cell Battery


Features

EQ-SC-18650 Split Type Test Cell is designed for testing 18650 batteries. Its detachable design allows you to test the cycling behavior as well as structural changes of electrodes easily and quickly.

Technology parameters

Model

EQ-SC-18650-TF

EQ-SC-18650-Qz

Dimensions (Dia. x Height)

1  ID of PTFE Body (liner): 18mm

2  Height of PTFE Body: 65mm

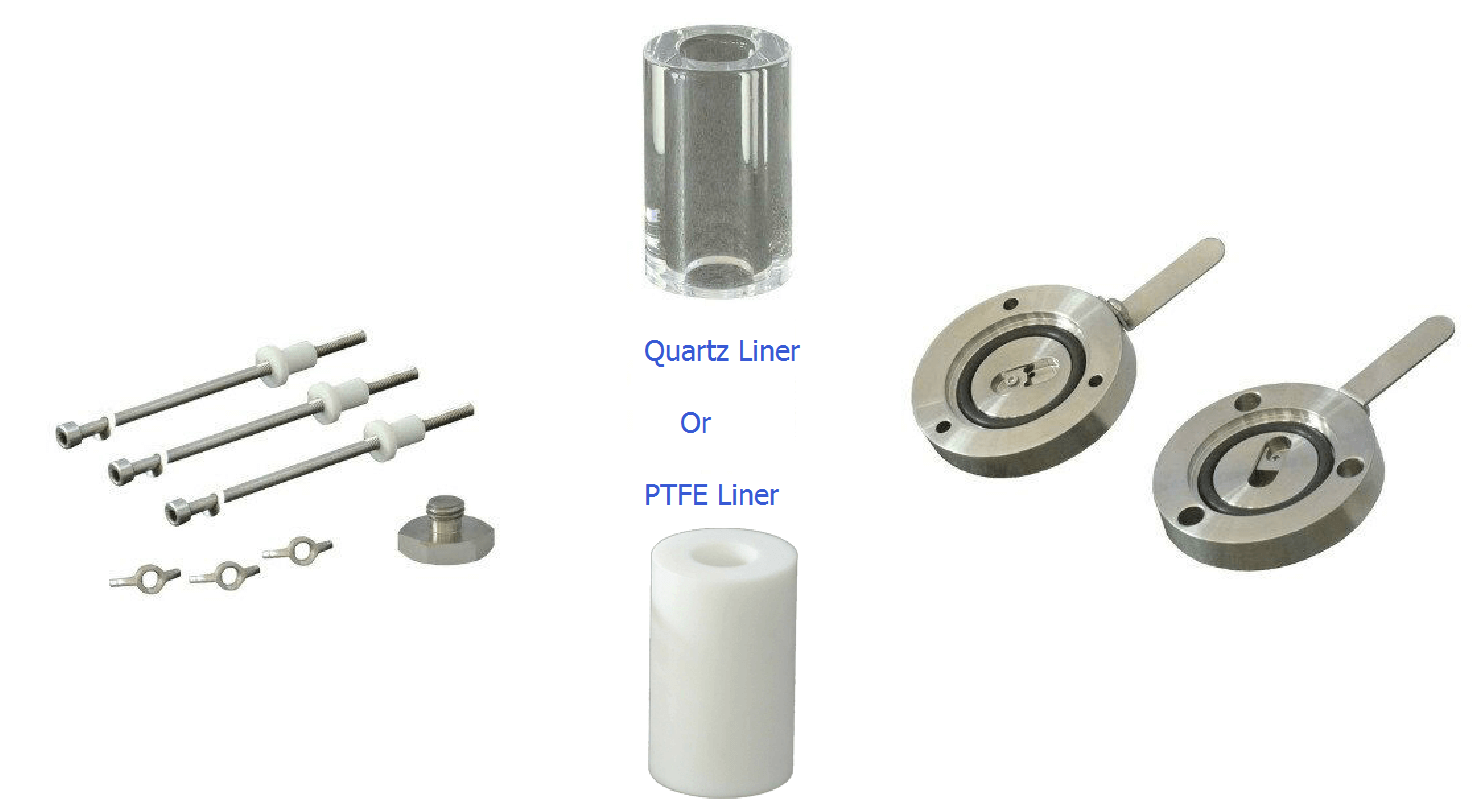

1  ID of Quartz Body (liner): 19mm

2  Height of PTFE Body: 65mm





Material





Caps: Full Stainless steel 304 end caps

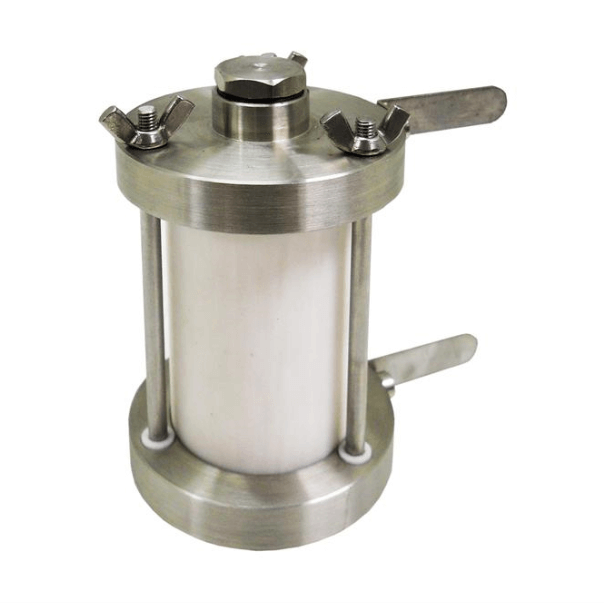

Body liner: Electrolyte corrosion-proof PTFE liner can withstand temperature up to 250ºC
O-ring: Sealed by electrolyte corrosion-proof PTFE O-rings

Caps: Full Stainless steel 304 end caps

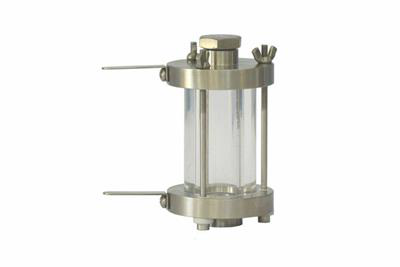

Body liner: Transparent quartz body allows you perform In-situ Laser Raman Spectroscopy.
O-ring: Sealed by electrolyte corrosive-proof PTFE O-rings

Design

1  Easy assembling with only four cap mounting screws
2  Easy to separate for cleaning after the test
3  Space saving, compact design allows you put it into the glove box

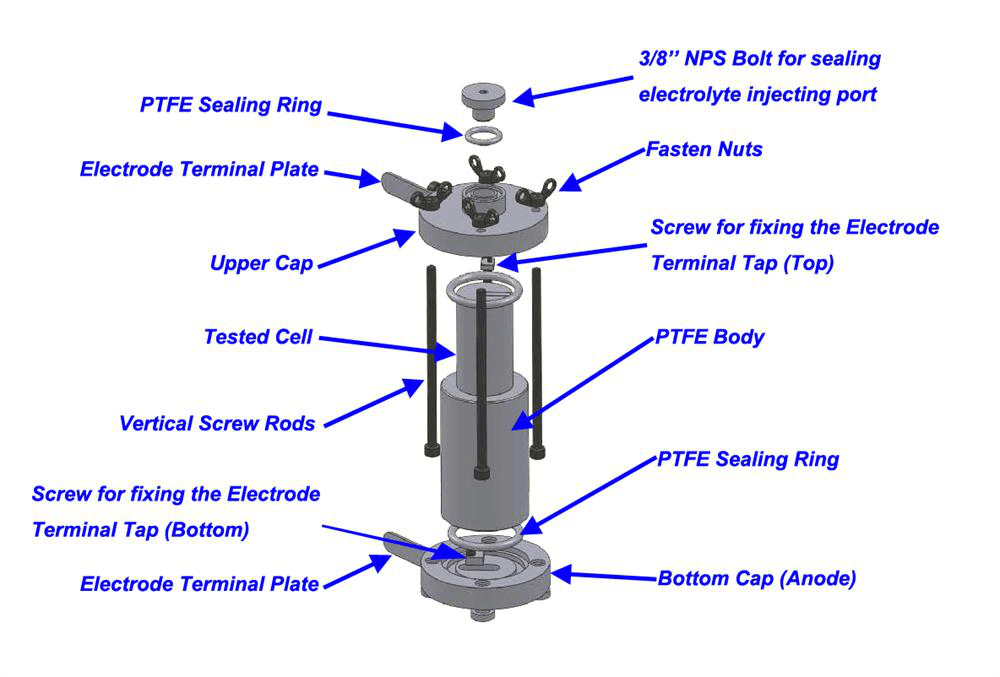

4  Click the images in below for the detailed illustration of this cell components





Option

Ant-corrosive Au coating on the top & bottom stainless steel caps is an option.





Split Type Cell Test

Cylindrical Cell Machine








PACKAGE:

  1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

  2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

  3 Responsible for the damage during the shipping process, will change the damaged part for you for free.



DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to

production season and order quantity.
