Louis@lithmachine.comSodium Ion Battery Manual Winding Machine For Electrode Assembly
Introduction
This winding machine is used for winding battery anode/cathode electrodes with separator together in the research of Li-ion cylinder batteries.
Main features

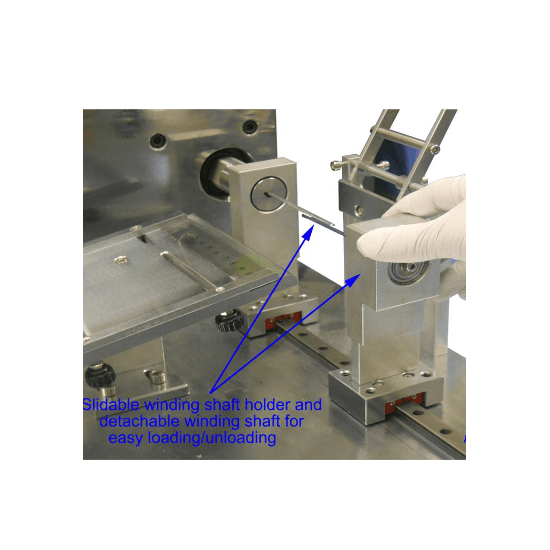

*The up and down, left and right, front and back positions of the guide electrode slot ruler plate can be adjusted;
*Winding can be forward and reverse, winding stepless speed regulation;
*The machine is small in size, beautiful in appearance and easy to operate;
Discover the best electrode press here.
Specifications
|
Model |
Semi-Automatic Winding Machine TMAX-JR135 |
|
Winding Shaft |
· Dimensions: 4mm(OD) x 90mm(L) for 18650, 26650, 32650, 21700 cylinder battery jelly roll · Material： 45# steel with Cr plated ( all shinning parts ) for anti-crossion. |
|
Working Voltage |
AC110V/220V, 50/60HZ |
|
Power |
1000W |
|
Warranty |
Two Year limited warranty with lifetime support |
|
Winding Speed |
0 - 170 RPM Adjustable |
|
Suitable battery height |
|
|
Winding Mode |
Switchable between clockwise and counterclockwise |
|
Output |
70-100EA/h, according to battery size and maunal |
|
Product Dimensions |
1000*380*250mm |
|
Net weight |
About 30kg |
|
Application Notes |
This machine can be used for cylinder battery with round winding shaft, and you can also choose the square winding shaft for pouch cell core winding, We will supply with the suitable winding accessories according to your battery model. |
PACKAGE:
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
DELIVERY TIME:15-20 days after confirming order,detail delivery date should be decided according to production season and order quantity
