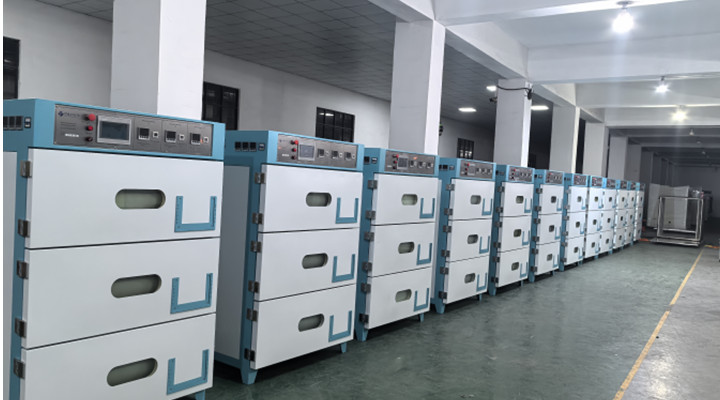

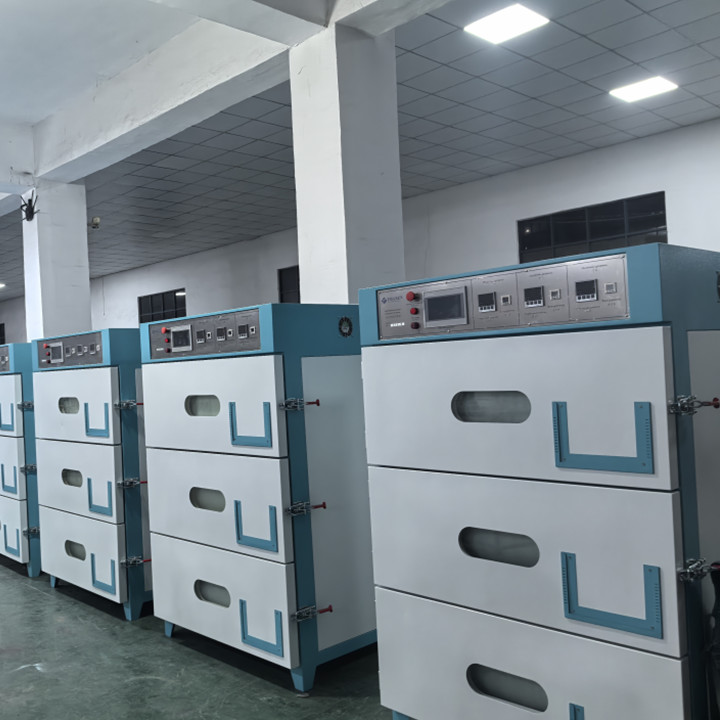

Ⅰ.Overview:
This product is suitable for the vacuum baking process of battery electrodes and cells to be filled with liquid during the production of lithium batteries. Adopting industry-leading uniform temperature technology, with a temperature fluctuation of
± 2 ℃; -0.098Mpa in the vacuum chamber can be maintained for ≥ 24 hours; Multiple quality and safety protections are ideal equipment to ensure drying effectiveness.
Ⅱ.Product features:
A. Electrical characteristics:
1. The temperature control adopts AISET three position PID temperature controller, with high temperature control resolution.
2. The temperature measuring probe is selected from Taiwan Hualing's special model and placed at the back of the vacuum chamber to quickly and accurately reflect the working temperature.
3. Triple over temperature protection device, automatically cuts off heating when the set temperature is exceeded, ensuring the safety of materials and equipment.
4. Equipped with timed shutdown function, timing starts after constant temperature, and automatically stops when baking time ends. Each layer can be timed independently.
5. The ventilation fans on each floor can be independently turned on and can be used as cooling fans when heating is stopped.
6. High quality SUS stainless steel seamless electric heating tube is selected, which heats up quickly and is energy-saving and durable.
B. Structural features:
1. Adopting a vacuum chamber heated by surrounding hot air and innovative circulating air duct design, ensuring high-precision uniform temperature inside the chamber.
2. The inner cavity material is T3.9mm high-quality SUS stainless steel, which is resistant to corrosion from battery paste and electrolyte.
3. Multi layer insulation materials form a closed insulation layer, blocking heat loss and effectively solving the problems of adjacent warehouse temperature and external wall heating.
4. The box door is a double-layer tempered glass structure with overvoltage protection function. When the air pressure inside the chamber is too high, it can automatically release air, restoring the air pressure inside the chamber to the allowable range.
5. The vacuum chamber and the box door are equipped with opposite silicone sealing rings, and the -0.098Mpa state inside the chamber can be maintained for more than 24 hours.
Ⅲ.Technical parameters:
|
Item |
Specification |
|
Touch screen |
7.0-inch color touch screen |
|
PLC |
Xinjie Programmable Controller |
|
Temperature controller |
Shanghai Yatai brand PID temperature controller |
|
Operation interface |
Color touch screen+PID temperature controller+digital vacuum gauge; Can achieve automatic air exchange, constant temperature, cooling and other actions |
|
Chamber size |
H 300mm×W 800mm×D750mm×3 layers |
|
Whole size |
H 1850mm×W1460mm×D1060mm |
|
Power |
Single layer : 3KW（peak power ）×3 |
|
Power source |
3Ph, 380V |
|
Supporting gas source |
Vacuum: -0.095~-0.1Mpa Compressed air: 0.4-0.5Mpa Dry gas: 0.1~0.2Mpa |
|
Working temperature |
RT～150℃ |
|
Temp Accuracy |
±1℃ |
|
Temperature distribution uniformity |
Temperature difference at various points within the studio≤±2℃ |
|
Heating rate |
It takes about 28 minutes for the room temperature (calculated as about 25 ℃) to rise to 80 ℃ |
|
Heating method |
Electric heating, enclosed hot air circulation, independent for each layer |
|
Over temperature protection device |
Each layer is equipped with dual mechanical overtemperature protection, with independent temperature measurement for each layer |
|
Alarm method |
Alarm light+buzzer on |
|
Working chamber vacuum degree |
0～-0.098Mpa，Vacuum maintained after 24 hours of pressure holding≥96% |
|
Pressure transition rate |
The vacuum pumping and inflation break time in the studio is less than 1 minute |
|
Chamber Materials |
SUS Stainless steel plate |
|
Shell material |
Using SECC steel plate, the surface is sprayed with plastic |
