Lab Split-able Pouch Cell Tester with Optional Size for Battery Equipment Research

Lab Split-able Pouch Cell Tester with Optional Size for Battery Equipment Research

  • Product Details


Lab Split-able Pouch Cell Tester with Optional Size for Battery Equipment Research



Features

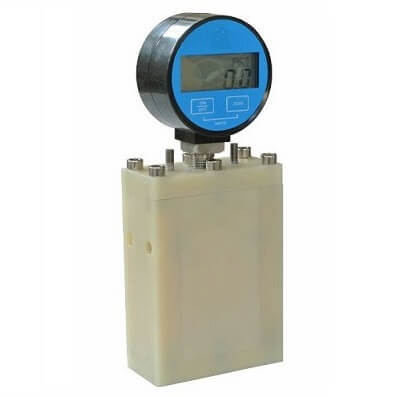

EQ-SPC-Series are splittable pouch cells made of Nylon or Peekwhich are designed for testing pouch cells with max electrode dimension of different size. Its detachable design allows you to test the pouch cell behavior as well as structural changes of electrode easily, quickly and cost effectively


Technical Parameter

Specifications
Design Fearture
  • Easy assembling by only four cap mounting screws
  • Easy to separate after test for microstructure analysis
  • Space saving, compact design allows you put it into the glove box
Material
(Please select at options bar)
  • Nylon or PEEK (Poly Ether Ketone) selectable from product options bar
  • Body: Electrolyte corrosive-proof Nylon which can sustain with temperature up to 80ºC and O-ring: Sealed by electrolyte corrosive-proof PTFE O-rings
  • Body: PEEK (Poly Ether Ketone), which is a semicrystalline thermoplastic with excellent mechanical and chemical resistance properties that are retained to high temperatures and O-ring: Sealed by electrolyte corrosive-proof FKM O-rings
Appearance


EQ-SPC-654519


EQ-SPC-804019


EQ-SPC-955208


EQ-SPC-30529525

Inside chamber Dimensions
(Customized size pouch cell are available uponrequest)



  • 65 mm H x 45mm W x19 mm Thick



  • 80 mm H x 40mm W x 19 mm Thick



  • 95 mm H x 52mm W x 8 mm Thick



  • 305 mm H x 295.5 mm W x 25.4 mm Thick
Suggested Max. electrode area
  • 60mm H x 40 mm
  • 75 mm H x 35 mm
  • 80mm H x 50mm
  • 300mm H x 395mm
Outside Case Dimensions
  • 89 mm H x 75 mm W x 53 mm Thick
  • 93 mm H x 85 mm W x 55 mm Thick
  • 120mm H x 85 mm W x 40mm Thick
  • 317.5 mm H x 323 mm W x 86 mm Thick
Structure
  • One digital pressure gauge installed on top to monitor pressure. You may remove the gauge and use 1/4 female port to inject electrolyte into the pouch cell
  • Two stainless steel contacts to connect anode and cathode by the screw
  • Max. working temperature: 80°C for Nylon, and 120°C for PEEK
  • Max. working pressure: 36psi (0.25MPa) for Nylon and 60psi (0.4Mpa) for PEEK
Application Note
  • In order to make metal air pouch cell, you can drill holes in the case. We can help you do that at extra cost
  • You may use MTI die cutter to prepare electrode via layer by layer or make winding type pouch cell electrode (click picture below to see the machine)








PACKAGE:

  1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

  2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

  3 Responsible for the damage during the shipping process, will change the damaged part for you for free.



DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to

production season and order quantity.
