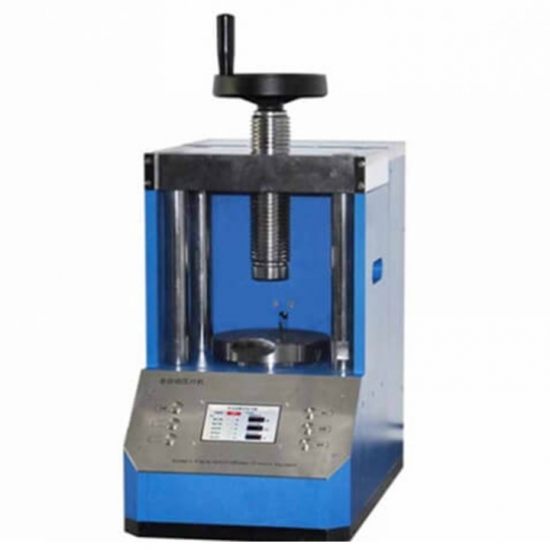

Lab Intelligent Automatic Hydraulic Tablet Press Machine with Liquid Display
Novel ZYP-TS liquid display series
ZYP-TS series automatic tablet press adopts new national technology. Compared with DYS-TS series electric tablet press, the biggest advantage is that the pressure system does not need conversion, directly set the pressure tonnage, and increase the timing pressure relief and cylinder limit protection function. The whole series is equipped with safety protection device, which is favored by users. Intelligent automatic program pressure/slow pressure - program control pressure - automatic pressure maintenance, automatic pressure supplement, timing pressure relief, with stable performance, easy operation, strong practicability, high safety advantages, suitable for high-end laboratory use.
This machine is often used in calcium and iron analyzer, Fourier infrared spectrometer (IR), teaching, testing, catalysis, pharmaceutical, chemical and new materials research and development and other fields.
Parameter
|
Model |
ZYP-20TS |
ZYP-30TS |
ZYP-40TS |
ZYP-60TS |
ZYP-100TS |
|
Pressure range |
1-20.0T |
1-30.0T |
1-40.0T |
1-60.0T |
1-100.0T |
|
Voltage regulation accuracy |
0.1t |
0.1t |
0.1t |
0.1t |
0.1t |
|
Maximum cylinder stroke |
30mm |
30mm |
50mm |
50mm |
50mm |
|
Pressure way |
Electric pressure |
||||
|
The sample preparation process |
Intelligent automatic, program pressure/slow pressure - program pressure holding/pressure supplement - timing pressure relief - demoulding sampling |
||||
|

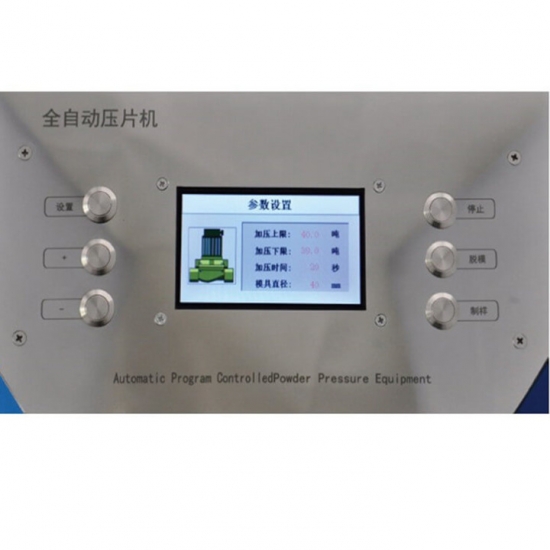

Display mode |
XNNETs 4.3-inch LCD display |
||||
|
The time of holding pressure |
999 minutes and 59 seconds |
||||
|
Mold pressure conversion |
Program automatic conversion, digital display mold sample pressure (MPa) |
||||
|
Cylinder limit device |
Automatic pressure relief protection when the cylinder rises to the limit height |
||||
|
Safety device |
Steel plate protection with plexiglass protection door |
||||
|
Overall structure |
One-piece structure, no sealing link, reduce oil leakage |
||||
|
Power supply |
220V (50 hz / 60 hz) |
||||
|
Workspace |
140*160mm |
140*160mm |
175*180mm |
185*220mm |
185*250mm |
|

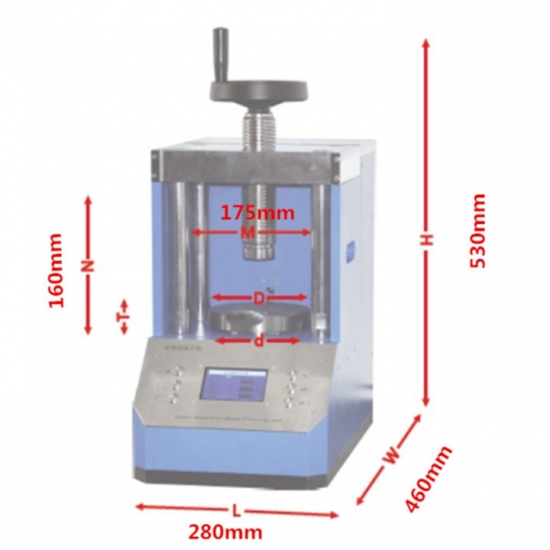

Overall dimensions |
230*390*420mm |
230*390*420mm |
280*460*550mm |
300*520*580mm |
330*580*620mm |
|
Weight |
90kg |
95kg |
150kg |
180kg |
240kg |
|
Description |
A full automatic tablet press, mold optional! Four pieces can be customized to increase the height, can be customized larger tonnage, larger space of the tablet press. |
||||
PACKAGE:
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damaged part for you for free.
DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to
production season and order quantity.
