Lab Hand-held High Precision Wireless Control Laser Cleaning Device

1. Basic information

Laser cleaning technology refers to the process of using high-power density laser beam to irradiate the surface of the workpiece, so that the dirt, rust spots or coatings on the surface evaporate or peel off instantly, so as to achieve cleaning and purification. Laser cleaning equipment is a new generation of high-tech products with green surface treatment

solution, which is easy to install, easy to operate and can realize automation production. It can be cleaned without chemical reagent, medium, dust and water by connecting the

power supply. It can remove the resin, paint, oil stain, stain, dirt, rust, coating, coating and oxide layer on the surface of the object.

It has the characteristics as below:

a. Non-contact cleaning will not damage the part matrix. No chemical cleaning solution, no consumables, safe and environmental protection.

b. The laser cleaning head is lightweight and can be held for a long time. The laser cleaning system is stable and almost maintenance free.

c. High cleaning efficiency and time saving. Red light assists in focusing, and the focusing position can be adjusted according to different field mirrors.

d. Precise cleaning, which can realize selective cleaning in precise position and size. Easy to operate just powered on. Optional for hand-held and automatic cleaning.

Comparison of different cleaning method:

Comparision	Chemical cleaning	Mechanical grinding	Dry ice cleaning	Ultrasonic cleaning	Laser cleaning
Cleaning method	Chemical cleaning agent	Mechanical / sandpaper contact	Dry ice, non- contact	Cleaning agent, contact	Laser, non- contact
Workpiece damage	Have damage	Have damage	No damage	No damage	No damage
Cleaning efficiency	Low	Low	Middle	Middle	High
Cleaning Result	Normal, uneven	Normal, uneven	Excellent, uneven	Excellent, Small cleaning range	Excellent, High cleanliness
Clean accuracy	Uncontrollable, poor accuracy	Uncontrollable, normal accuracy	Uncontrollable, poor accuracy	Can not specify range	High controllable, high precision
Consumables	Chemical cleaning agent	Sandpaper, grinding wheel, oil-stone	Dry ice	Special cleaning fluid	Power only
Safety and E protection	Serious chemical pollution	environmental pollution	No pollution	No pollution	No pollution
Operation	High technical and protection	High manpower and protection	Simply, handheld or CNC	Simple, but need manpower	Simply, handheld or CNC
Investment and using cost	Low initial, extremely high consumables	High initial, High manpower, High consumables.	Middle initial, high consumables	Low initial, Middle consumables	High initial, no consumables

2.Product Specification

2.1 CR Series Suitcase Type

Portable hand-held laser cleaning machine is a portable laser cleaning tool. It has many advantages, such as portability, light weight, flexible and adjustable parameters, wireless control, etc. It can effectively remove rust, stains, oil stains, coatings, etc. on the surface of workpieces.

It can be applied to mechanical processing, mold cleaning, food processing, electronic circuit, cultural relic repair, and other industries. With the characteristics of precise positioning, it can meet the processing of various shaped workpieces, to achieve highly efficient cleaning effect.

The cleaning machine is equipped with a cleaning type pulse fiber laser as the cleaning light source. The laser adopts a master oscillator power amplifier (MOPA) structure, in which the main oscillator uses a semiconductor laser as the seed source, and the power amplification is realized through a traveling wave fiber amplifier. This MOPA fiber laser has the characteristics of independently adjustable pulse width and frequency and can still maintain a high stable peak power output under the condition of changing the pulse width and frequency to adapt to a wider range of cleaning scenarios.

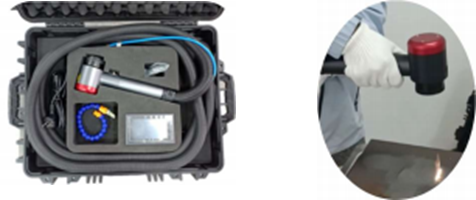

The hand-held laser head of the cleaning machine has a simple appearance and is small and light, which can be used for a long time. Integrated designed button and handle make operation simple and easy. The built-in scanning system adopts small high-speed motor and drive, and the main body is formed by integrated processing, which is solid, dust-proof, stable and durable. The laser head adopts the red-light auxiliary focusing design, which can easily find the focusing position under different field mirrors by using the red-light indication, meeting the auxiliary focusing requirements under different scenes.

The control system adopts the laser cleaning control card and program, which can simultaneously control the laser parameters and scanning system parameters and is equipped with a hand-held wireless control card. The control card is connected with the cleaning machine through wireless mode, which can realize remote control of scanning shape, scanning length, laser output power, frequency, pulse width and other parameters. The power interface is a standard three plug 220V AC power supply, plug in and then ready for cleaning tasks.

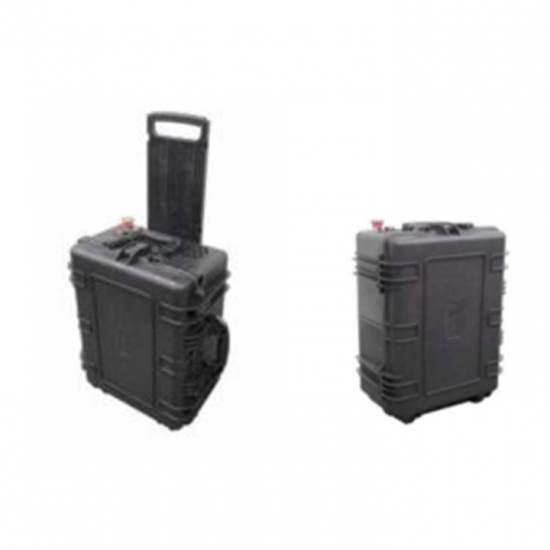

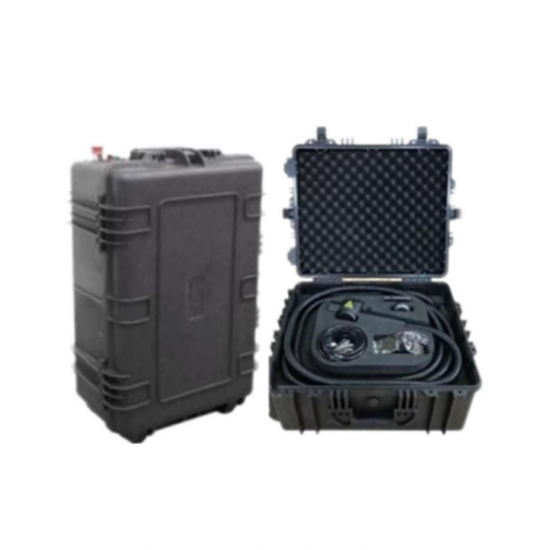

The figure shows the physical picture of handheld laser cleaning machine (the specific appearance is subject to the actual delivery):

2.2 Product Features

It can be operated offline, Start cleaning after power on. Extremely light laser cleaning head, easy for long time handling.

Red light assisted focusing technology, can adjust the focusing position according to different field mirrors.

Wireless control can make parameter setting and light output control remotely, and parameters can be updated at any time.

Portable trolley case design, with an overall weight of 28kg, which can be carried as luggage by high-speed railway and air consignment.

Super integrated injection molding case, cushion design, stable structure, wear-resistant, shockproof and fall resistant.

2.3 Application samples

2.4 Technical Parameters

Operating Environment
Model	CR series
Power Supply	Standard AC220V±10%,monophase, 50/60Hz
Total consumption	≤450W
Working temperature	0ºC~40ºC
Storage temperature	-10ºC~60ºC
Working environment humidity	≤80%
Optical Parameters
Average laser power	≤100W
Power instability	<2%
Laser Working Mode	Pulse
Pulse width	10-500ns
Maximum mono-pulse energy	1.5mJ
Power regulation range(%)	10-100( Gradient adjustable)
Repeat frequency(kHz)	1-3000(Gradient adjustable)
Anti-high reflection	Yes
Fiber length	5m
Cooling mode	Air cooling
Cleaning Head Parameters
Scan width	20-130mm,supporting 8 scanning modes
Scan Speed	6000mm/S
Clean efficiency	0.2-0.5 m³/min
Scanning frequency	10Hz~300Hz
Field mirror focal length(mm)	160mm(Optional 210mm/254mm/330mm/420mm)
Spot Size	≤10 mm
Mechanical Parameters
Machine size(LWH)	620469292 mm
Packing dimensions	890600470 mm
Machine Weight	26 Kg
Packing weight	44 Kg
Cleaning head weight	<0.75kg
Work Mode	Handheld/CNC

2.5 Overall dimensions

Dimension

Cleaning Head Dimension

3.Consumables used in machine

Here are the consumables used in machine:

S.N.	Item	Unit	MOQ	Origin
1	Protective lens	Piece	5	China
2	Focus Lens	Piece	1	China
3	Goggles	Pair	1	China

4.Technical Training and After Sales Service

We will provide necessary manual and training videos together with the machine to train buyer how to operate this machine.

We will provide our customer with on-line expert guidance and on-line supports.

5.After sales service

Warranty:24 months for laser source, excluding glass fiber cable, charges and warranty scopes are subject to laser source supplier’s warranty terms.12 months from the date of delivery for main machine, excluding lens and other consumables. Within warranty period, the seller shall offer spare parts with free of charge (excluding the case of force of majeure, such as natural disaster and war, incorrect operation and sabotage. All the cost incurred by spare parts replacement shall be borne by the buyer, including freight cost and customs.

After the warranty, we will also provide favorable service of long-term technical supports and spare parts supply to ensure machine's stable and continuous running.
