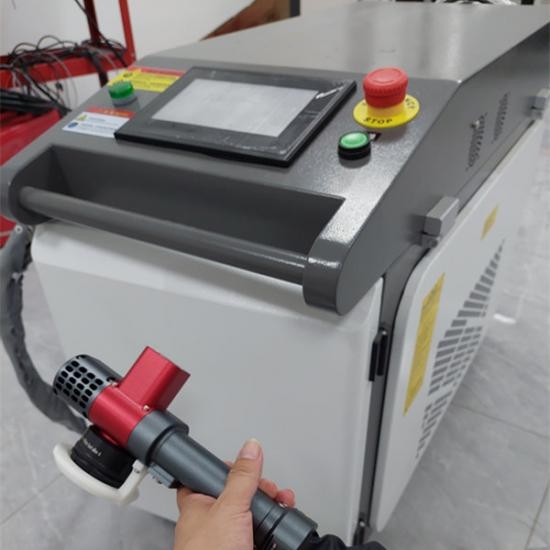

Handheld 5mJ 200W Nanosecond Laser Cleaning Machine



The principle of laser cleaning

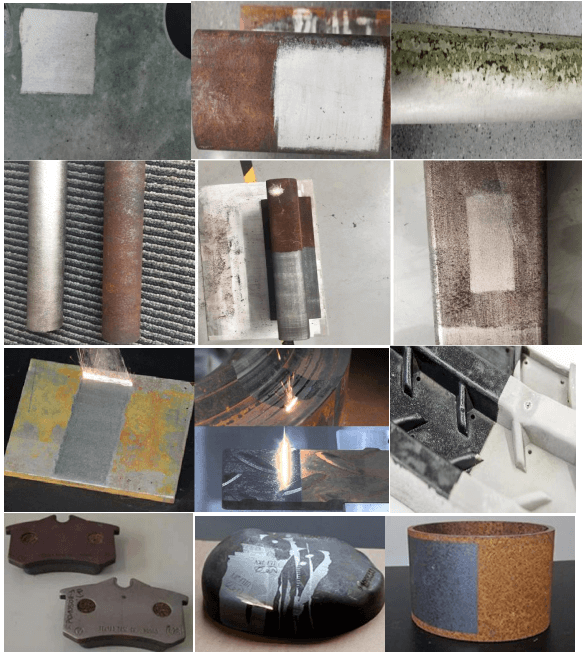

Laser cleaning technology refers to the process of irradiating the surface of the workpiece with a high-power density laser beam to instantly evaporate or peel off the dirt, rust or coating on the surface, thereby achieving a clean process. This cleaning equipment is a new high-tech product for surface treatment, which is easy to install, operate and automate. The operation is simple, and it can be cleaned without chemical reagents, without media, without dust and without water. It can remove resin, paint, oil, stain, dirt, rust, coating, plating and oxide layer on the surface of the object.


Advantages of Laser Cleaning

1. Non-contact cleaning, no damage to the parts matrix.

2. The laser cleaning head is lightweight and can be operated by hand for a long time

2. Precise cleaning, which can realize selective cleaning of precise position and precise size.

3. No chemical cleaning solution, no consumables, safe and environmentally friendly.

4. The operation is simple, it can be powered on, and it can be hand-held or cooperated with a manipulator to realize automatic cleaning.

5. Red light assists in focusing, and the focus position can be adjusted according to different field lenses

6. High cleaning efficiency and save time.

7. The laser cleaning system is stable and requires almost no maintenance.

Comparison

Chemical cleaning

Mechanical grinding

Dry ice cleaning

Ultrasonic cleaning

Laser cleaning

Cleaning method

Chemical cleaning agent

Mechanical / sandpaper contact

Dry ice, non-contact

Cleaning agent, contact

Laser, non-contact

Workpiece damage

Have damage

Have damage

No damage

No damage

No damage

Cleaning efficiency

Low

Low

Middle

Middle

High

Cleaning Result

Normal, uneven

Normal, uneven

Excellent, uneven

Excellent, Small cleaning range

Excellent, High cleanliness

Clean accuracy

Uncontrollable, poor accuracy

Uncontrollable, normal accuracy

Uncontrollable, poor accuracy

Can not specify range

High controllable, high precision

Consumables

Chemical cleaning agent

Sandpaper, grinding wheel, oil-stone

Dry ice

Special cleaning fluid

Power only

Safety and E protection

Serious chemical pollution

environmental pollution

No pollution

No pollution

No pollution

Operation

High technical and protection

High manpower and protection

Simply, handheld or CNC

Simple, but need manpower

Simply, handheld or CNC

Investment and using cost

Low initial investment, extremely high consumables

High initial investment, High manpower, High consumables.

Middle initial investment, high consumables

Low initial investment, Middle consumables

High initial investment, no consumables


Detailed technical requirements

Model

DM-L200-P

Laser level

Class IV

Max. laser Power

200±3W

Wavelength

1064±3nm

Laser mode quality(M2)

<1.3

Laser power stability

±5(Max)

Laser single pulse energy

5mj (max)

Laser power adjustment range

1~100

Laser frequency adjustment range

1~4000khz

Pulse width adjustment range

1~500ns

Beam diameter

4.0±0.5,7.5±0.5(customizable)MM

Max. scanning width

150mm

Cooling mode

Air cooling

Cleaning mode

Spiral wire (level 10 adjustable)

Parameter adjustment mode

Dual touch screen control system

Touch system size

7 + 4 inches

Fiberlength

5 meters

Input power

AC220V±10,50/60Hz

Overall power

800W

Structure of equipment

Handheld

Work environment

5—40℃,≤70RH

Dimensions

680*300*480mm

Weight

48kg




PACKAGE:

     1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

     2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

     3 Responsible for the damage during the shipping process, will change the damage part for you for free.



DELIVERY TIME: 15-20 days after confirming order,detail delivery date should be decided according to production season and order quantity
