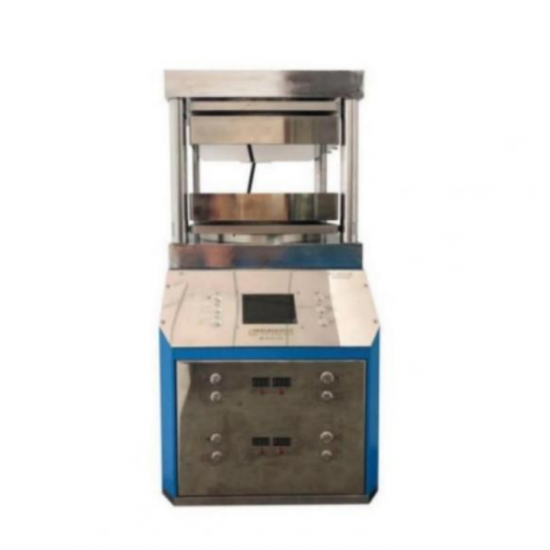

Lab Automatic Programmable Heat Press with Heating And Temperature Control Function

Lab Automatic Programmable Heat Press with Heating And Temperature Control Function

  • ItemNo :

    LITH-RYJ-600ZG
  • MOQ :

    1
  • Port :

    Xiamen Port
  • Compliance:

    CE Certified
  • Warranty:

    1 Year limited warranty with lifetime support
  • Delivery Time:

  • Email :

    Louis@lithmachine.com
  • Product Details

Lab Automatic Programmable Heat Press with Heating And Temperature Control Function





The new "RYJ-600ZG" series of automatic heat presses are based on the original RYJ-600Z model. The mold heating system is upgraded and improved. The maximum temperature can reach 500 degrees. The equipment is cooled by a stainless steel water-cooled heat insulation board to prevent the mold temperature from being too high. The sealing parts of the main machine cause damage and aging. This machine meets the needs of some users for high temperature testing. It is an ideal supporting equipment for engineering and technical personnel such as universities, research institutes, etc. to perform spectroscopy detection and analysis. It has been widely used in catalysis, rubber, plastics, films, polymers, metallurgical powders, Research and development of new power sources and new materials.


Main Parameter

Product name

RYJ-600ZG1

RYJ-600ZG2

RYJ-600ZG3

RYJ-600ZG4

Pressure range

1-25.0T

1-30.0T

1-50.0T

Precision of pressure adjust

0.1t

0.1t

0.1t

Compression process

fully automatic, program pressure/slow pressure - program pressure holding - program pressure replenishing - timing pressure relief

The holding time

0-999.59(Min/Second)

999 minutes and 59 seconds

Type of thermostat

PLC program temperature controller

Temperature control range

RT-600.0℃,0.1 accuracy

Heating temperature of die

RT-500.0℃

Cooling method of die

Water cooling (water cooler is optional)

Equipment Insulation Mode

Imported insulation plate+Stainless steel water-cooled heat shield

Equipment structure

Integrated structure, automatic program pressure control, temperature control

Die type

Up and down 2 heating plates, polishing surface

Die size

180*180mm

200*200mm

300*300mm

400*400mm

Overall size

280*420*620mm

280*420*620mm

400*500*750mm

500*600*780mm

Power supply

220/3000W

220/3000W

220/4000W

220/8000W

Equipment weight

About 160kg

About170kg

About360kg

About460kg

Note

A hot press, water cooling machine optional!

Heating die can be customized according to user demand!!!







PACKAGE:

  1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

  2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

  3 Responsible for the damage during the shipping process, will change the damaged part for you for free.



DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to

production season and order quantity.
