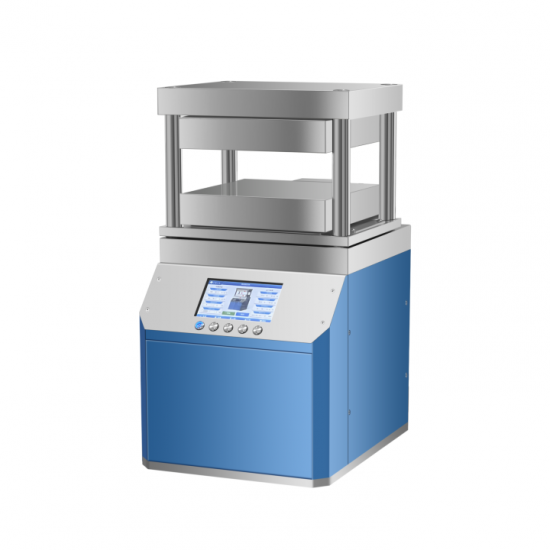

Lab 30T Automatic Programmable Hot Press with 7 Inches Touch Screen

Lab 30T Automatic Programmable Hot Press with 7 Inches Touch Screen

  • ItemNo :

    LITH-PP-600E
  • MOQ :

    1
  • Compliance:

  • Warranty:

    2years
  • Delivery Time:

    5 days
  • Email :

    Louis@lithmachine.com
  • Product Details

Lab 30T Automatic Programmable Hot Press with 7 Inches Touch Screen





Instruction manual





Setting interface



Settings:

Under the operation interface, press the setting button to enter the setting interface and then press the setting button to move the setting content. After moving to the mold diameter, press the setting button again to return to the operation interface.

+ :

Under the operation interface, press the "+" key to increase the setting number

-:

Under the operation interface, press the "-" key to reduce the number of Settings

Preloading:

Press the prepress button to close the upper and lower heating plates together.



Operating interface

Upper plate:

Press the "upper plate" button on the operation interface, the upper plate starts to heat to the set temperature, and the temperature will be automatically timed, and the heating will stop after the timing is over. Or press the "upper plate" button again, the upper plate will stop heating. All setting buttons are invalid during heating.

Lower plate;

Press the "Lower plate" button on the operation interface, and the lower plate will be heated to the set temperature automatically. When the timing is over, stop heating. Or press "lower plate" button again, the lower plate stops heating. All setting buttons are invalid during heating.

Stop:

When the equipment is running, press the "Stop" button, the equipment will stop the motor operation and open the pressure relief valve to release the pressure.

Pressurization:

Press the "pressurization" button, and the device will start. When the pressure reaches the set pressure, the pressurization will be stopped and the pressure will be kept by timing. When the pressure is lower than the lower limit of pressurization, the pressure will be replenishedautomatically.



Procedure of operation









Technical parameters

Instrument type

PP-600E

Pressure range

0-30.0 tons

Mold size

300×300mm (MXN)

Heating temperature

Room temperature -300° C

Manual mode

The upper and lower heating plates and pressure can be controlled separately

Automatic mode

Multiple temperature programs can be set

Cooling mode

Automatic and rapid cooling according to cooling program

Remote control

Support computer connection remote control (computer optional)

Data management

Historical data and curve maps can be printed

Liquid crystal display

7 inches touch screen

Machine size

400×490X580mm(LXWXH)

Power supply

3500W(220V/110V can be customized)

Main machine weight

280 Kg

Powder press size diagram










PACKAGE:

  1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

  2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

  3 Responsible for the damage during the shipping process, will change the damaged part for you for free.



DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to

production season and order quantity.
